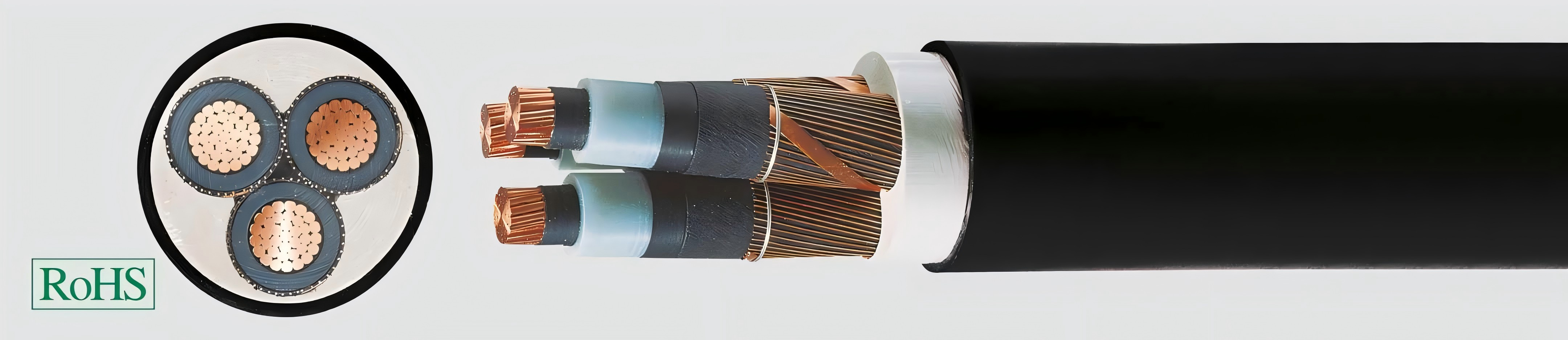

N2XSEH NA2XSEH MV Power Cables, Halogen Free, Flame Retardant
Uo/U - 6/10,12/20kV VDE 0276-622The three-core cables flame retardant with insulation of cross-linked polyethylene (XLPE) are designed for transfer and distribution of electrical power with nominal voltage Uo/U 6/10; 12/20 kV and frequency 50 Hz.
The cables are manufactured with sheaths of halogen free flame retardant materials. They are suitable for use in distribution installations, electric power stations and substations for fixed indoor assembly in cable ducts and conduits, over shelves and grilles.
They should not be laid directly underground or in water. The cables with halogen free materials are with low halogen free smoke emission and corrosivity.The cables should not be laid in or near nuclear stations.
| Cable construction |
| Construction |
According to DIN VDE 0276-622 |
Conductor
Inner semi-conductive layer |
Cu and Al stranded compacted wiresto IEC 60228 cl.2 and VDE 0295 cl.2
semi-conductive XLPE compound |
| Insulation |
XLPE compound |
| Outer semi-conductive layer |
semi-conductive XLPE compound and semi-conductive tape |
| Metal screen |
Cu wires concentrically laid and one contact of Cu tape with thickness of 0.1mm or Cu tapes laid with overlap over each phase |
| Cable assembly |
three insulated and screenesd phases are twisted with fillings and tape support PVC compound |
| Inner sheath |
halogen free compound, flame retardant |
| Sheath |
halogen free compound, flame retardant type HM4 to VDE 0276-622 |
| Color |
black |
|
| Technical data |
| Conductor resistance at 20°C |
According to IEC60228 class 2 and VDE 0295 class 2 |
| Operating temperature |
90°C continuous operation |
| Overload temperature |
130°C /100h per year max./ |
| Short circuit temperature |
250°C /5 s max/ |
| Nominal voltage Uo/U: |
6.35/11 kV |
| Highest system voltage Uo/U, no more than |
6/10 kV; 12/20 kV
12 kV; 24 kV |
Test voltage Uo/U
AC (≈) - 5 min
DC (=) - 15 min |
6/10 12/20 kV
21 kV; 42 kV
67 kV; 134 kV |
| Bending radius, min Temperature of laying |
15xD cable no less than -5°C |
Temperature of
exploitation
Tests |
-30 to 50°C
VDE 0276-622 |
| -flame retardant |
VDE 0276-622(VDE 0472-804 method C) - IEC 332-3/B |
-corrosivity ofcombustion gases
- pH |
min. 4.3 |
| - conductivity |
max. 100µS/cm |
| -density of smoke gases |
VDE 0276-622 method to VDE0472-816 |
|
Construction data N2XSEH, NA2XSEH 6/10 kV |
Number of
conductors and
nominal cross
section |
Thickness
of insulation |
Thickness
of
sheath |
Nominal cross-section of screen |
Cable diameter approx. |
N2XSEH |
NA2XSEH |
Mass of
Cu approx |
Mass of
cable
approx. |
Mass of
Al approx. |
Mass of
cable
approx. |
| N x mm2 |
mm |
mm |
mm2 |
mm |
kg/km |
kg/km |
kg/km |
kg/km |
| 6/10kV |
|
|
|
|
|
|
|
|
| 3x35rm/16 |
3,4 |
2,5 |
16 |
46,2 |
1010 |
3276 |
298 |
2619 |
| 3x50rm/16 |
3,4 |
2,5 |
16 |
48,8 |
1363 |
3834 |
404 |
2923 |
| 3x70rm/16 |
3,4 |
2,5 |
16 |
53,0 |
1968 |
4784 |
584 |
3470 |
| 3x95rm/16 |
3,4 |
2,5 |
16 |
57,1 |
2732 |
5930 |
809 |
4103 |
| 3x120rm/16 |
3,4 |
2,5 |
16 |
60,6 |
3440 |
6923 |
1023 |
4627 |
| 3x150rm/25 |
3,4 |
2,5 |
25 |
64,2 |
4245 |
8217 |
1257 |
5379 |
| 3x185rm/25 |
3,4 |
2,5 |
25 |
68,5 |
5311 |
9691 |
1579 |
6144 |
| 3x240rm/25 |
3,4 |
2,5 |
25 |
74,3 |
6981 |
11963 |
2071 |
7331 |
| 3x300rm/25 |
3,4 |
2,5 |
25 |
79,6 |
8661 |
14294 |
2589 |
8526 |
