Available up to 216 Fibres Fibra Optica PKP Multitube Loose Tube Outdoor Cable
Fibra Optica PKP Description
Gel filled multi loose tube cable of double jacket for outdoor installation. The double jacket construction adds a layer of protection for harsh environments. Strength members composed of aramid yarns. Polyethylene outer sheath. Available up to 216 fibres.
 |
Cable Description

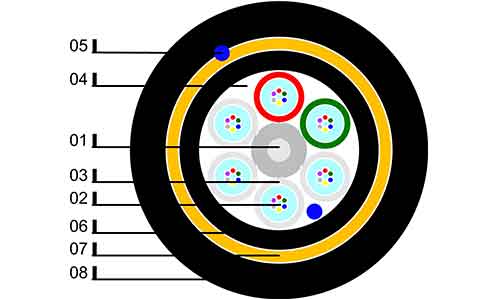

- 1. Central Element (GRP)
- 2. Fibre Optics
- 3. Loose tube (jelly filled)
- 4. Strength Members
- 5. Ripcord
- 6. Inner Jacket
- 7. Strength Members
- 8. Outer Jacket
|
Multi Loose Tube Cable Applications
Exterior/Outdoor
Loose Tube Cable Advantages
Excellent mechanical resistance / Totally dielectric / Resistant / Tough / High density of fibres / Excellent resistance to friction.
Multitube Loose Tube Outdoor Fiber Cable Specifications
| Fibre Count |
12 |
16 |
24 |
32 |
36 |
48 |
64 |
72 |
96 |
128 |
144 |
| Fibres per Tube |
12 |
8 |
12 |
8 |
12 |
12 |
8 |
12 |
12 |
8 |
12 |
| Total Tubes |
6 |
6 |
6 |
6 |
6 |
6 |
8 |
6 |
8 |
18 |
12 |
| Active Tube |
1 |
2 |
2 |
4 |
3 |
4 |
8 |
6 |
8 |
16 |
12 |
Tube  (mm) |
1.70 士0.1 |
| Inner Jacket |
Polyethylene - Black |
| Strength Members |
Aramid Yarns |
| Outer Jacket |
Polyethylene - Black |
| Weight (Kg/Km) |
87 |
87 |
87 |
88 |
88 |
89 |
111 |
91 |
113 |
155 |
162 |
Outer  (mm士0.5) |
10.5 |
10.5 |
10.5 |
10.5 |
10.5 |
10.5 |
11.5 |
10.5 |
11.5 |
13.9 |
13.5 |
| Max. Tensile Load (N) |
1000 (Operating) / 1800 (Installation) |
1500 (Operating) / 2700 (Installation) |
| Max. Crush (N/dm) |
2000 (IEC 60794-1-21 E3) |
| Temperature Range |
-40ºC to +70ºC (IEC 60794-1-22 F1) |
| Min. Bending Radius |
15 x Outer  (Operating) / 20 x Outer  (Installation) - (IEC 60794-1-21 E11) |
| |
SPECIFICATIONS |
| Fibre Count |
192 |
216 |
256 |
288 |
432 |
576 |
| Fibres per Tube |
12 |
12 |
16 |
24 |
24 |
24 |
| Total Tubes |
18 |
18 |
18 |
12 |
18 |
24 |
| Active Tube |
16 |
18 |
16 |
12 |
18 |
24 |
Tube  (mm) |
1.7 士0.1 |
2.1 士0.1 |
2.8 士0.1 |
| Inner Jacket |
Polyethylene - Black |
| Strength Members |
Aramid Yarns |
| Outer Jacket |
Polyethylene - Black |
| Weight (Kg/Km) |
153 |
155 |
205 |
321 |
305 |
400 |
Outer  (mm士0.5) |
13.7 |
13.7 |
15.9 |
19.3 |
19.7 |
22.1 |
| Max. Tensile Load (N) |
1500 (Operating) / 2700 (Installation) |
| Max. Crush (N/dm) |
2000 (IEC 60794-1-21 E3) |
| Temperature Range |
-40ºC to +70ºC (Operation) / -10ºC to +50ºC (Installation) - (IEC 60794-1-22 F1) |
| Min. Bending Radius |
15 x Outer  (Operating) / 20 x Outer  (Installation) - (IEC 60794-1-21 E11) |
Outdoor Fiber Optic Cable Standards
Mechanical and Environmental tests according to IEC 60794-1-21 and IEC 60794-1-22.
Fibres colour code: Red - Green - Blue - Yellow - Grey - Violet - Brown - Orange - White - Pink - Black - Turquoise . With black ring: Red - Green - Blue - Yellow - Grey - Violet - Brown - Orange - White - Pink - Black - Turquoise.
Tubes colour code: Red - Green - Natural... - Natural . Passive tubes colour Black.
Tubes colour code (576FO cable):
Inner layer (9 Tubes) = Red - Green - Blue - Yellow - Grey - Violet - Brown - Orange - White.
Outer layer (15 tubes) = Red - Green - Blue - Yellow - Grey - Violet - Brown - Orange - White - Pink - Black – Turquoise – Light Green – Red (with ring) – Green (with ring).
