Optical Fiber Distribution Cable
Find the Type of Distribution Fiber Optic Cable that Fits Your Application
What remains evident throughout the search to find the most ideal networking fiber optic cable is that there are different types of fiber optic cables made for particular application sites; Distribution Fiber Optic Cable, therefore, is manufactured with specific specs in order to satisfy the requirements of individual networks. Applications that demand a single termination point with multiple fibers are best suited for Distribution Fiber Optic Cable.
Distribution Fiber Optic Cable exemplifies a tight buffered design that allows this cable type to be installed as a building backbone and/or installed for inter-building campus applications, eliminating the need for expensive transitions between cable types. In addition, Distribution Fiber Optic Cable is available in 4 main fiber types: Single Mode 9/125, Multimode OM1 62.5/125, Multimode OM3 50/125 and Multimode OM4 50/125. Plenum and Riser rated materials are available as well as indoor or indoor/outdoor options. And most often, Distribution Fiber Cables have strand counts ranging from 2 to 72 fibers.
Meet the Standard | Know the Specifics
Indoor Plenum OFNP Distribution Fiber Optic Cable
Plenum Indoor Distribution Fiber Optic Cables come in Single-Mode and OM1, OM3 and OM4 Multimode options; this type of cable is specified for interior plenum building wiring applications, such as in walls, between floors, and throughout air handling ducts. In regard to these particular building applications, our fiber demonstrates the ability to withstand the stresses present during and following the installation process.
Indoor/Outdoor Plenum OFNP Distribution Fiber Optic Cable
Plenum Indoor/Outdoor Distribution Fiber Optic Cables are available in Single-Mode and OM1, OM3 and OM4 Multimode options; this form of cable is specified for interior or exterior plenum campus and/or office networks. For indoor applications, the cable is Plenum OFNP listed. For outdoor applications, the cable includes an outer jacket with a UV stabilizer for protection against sun-exposure and offers protection against states of natural decay within underground applications.
Indoor Riser OFNR Distribution Fiber Optic Cable
Riser Indoor Distribution Fiber Optic Cables come in both Single-Mode and OM1, OM3 and OM4 Multimode options; this type of cable is ideal for vertical runs within building applications with options of up to 72 strands in order to satisfy network requirements.
Indoor/Outdoor Riser OFNR Distribution Fiber Optic Cable
Riser Indoor/Outdoor Distribution Fiber Optic Cables are available in both Single-Mode and Multimode options. This Riser Fiber Distribution Cable is available with up to a 144 strands as well as the capacity of being employed throughout both indoor and outdoor projects. In order to further protect and heighten the longevity of your network, the cable can be armored for additional strength in direct burial and aerial applications.
If you have any questions, do not hesitate to give us a call at +86 186 3866 8721 or email us at info@uni-fibercable.com
Specification

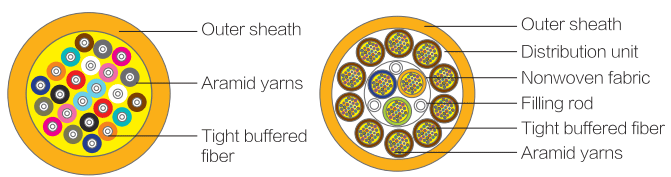

Optical Fiber Distribution Cable takes multiple tight-buffered fibers as the basic unit, high modulus aramid yarn as the strength member, and the jacket is made of polyvinyl chloride (PVC) or low smoke zero halogen flame-retardant polyolefin (LSZH). (2~24 cores).
Branched distribution optical cable is composed of multi- fiber basic unit (single-tube distribution optical cable), fiber-reinforced composite plastic (GFRP/KFRP) central strength member, sub cables stranded around the central strength member, and polyvinyl chloride (PVC) or low smoke zero halogen flame- retardant polyolefin (LSZH). (above 24 cores).
Product application
• Indoor integrated wiring
• The main wiring optical cable in the building
• Multi- fiber patchcord
Parameters
Find the Type of Distribution Fiber Optic Cable that Fits Your Application
Distribution Fiber Optic Cable exemplifies a tight buffered design that allows this cable type to be installed as a building backbone and/or installed for inter-building campus applications, eliminating the need for expensive transitions between cable types. In addition, Distribution Fiber Optic Cable is available in 4 main fiber types: Single Mode 9/125, Multimode OM1 62.5/125, Multimode OM3 50/125 and Multimode OM4 50/125. Plenum and Riser rated materials are available as well as indoor or indoor/outdoor options. And most often, Distribution Fiber Cables have strand counts ranging from 2 to 72 fibers.
Meet the Standard | Know the Specifics
Indoor Plenum OFNP Distribution Fiber Optic Cable
Plenum Indoor Distribution Fiber Optic Cables come in Single-Mode and OM1, OM3 and OM4 Multimode options; this type of cable is specified for interior plenum building wiring applications, such as in walls, between floors, and throughout air handling ducts. In regard to these particular building applications, our fiber demonstrates the ability to withstand the stresses present during and following the installation process.
Indoor/Outdoor Plenum OFNP Distribution Fiber Optic Cable
Plenum Indoor/Outdoor Distribution Fiber Optic Cables are available in Single-Mode and OM1, OM3 and OM4 Multimode options; this form of cable is specified for interior or exterior plenum campus and/or office networks. For indoor applications, the cable is Plenum OFNP listed. For outdoor applications, the cable includes an outer jacket with a UV stabilizer for protection against sun-exposure and offers protection against states of natural decay within underground applications.
Indoor Riser OFNR Distribution Fiber Optic Cable
Riser Indoor Distribution Fiber Optic Cables come in both Single-Mode and OM1, OM3 and OM4 Multimode options; this type of cable is ideal for vertical runs within building applications with options of up to 72 strands in order to satisfy network requirements.
Indoor/Outdoor Riser OFNR Distribution Fiber Optic Cable
Riser Indoor/Outdoor Distribution Fiber Optic Cables are available in both Single-Mode and Multimode options. This Riser Fiber Distribution Cable is available with up to a 144 strands as well as the capacity of being employed throughout both indoor and outdoor projects. In order to further protect and heighten the longevity of your network, the cable can be armored for additional strength in direct burial and aerial applications.
If you have any questions, do not hesitate to give us a call at +86 186 3866 8721 or email us at info@uni-fibercable.com
Specification
Optical Fiber Distribution Cable takes multiple tight-buffered fibers as the basic unit, high modulus aramid yarn as the strength member, and the jacket is made of polyvinyl chloride (PVC) or low smoke zero halogen flame-retardant polyolefin (LSZH). (2~24 cores).
Branched distribution optical cable is composed of multi- fiber basic unit (single-tube distribution optical cable), fiber-reinforced composite plastic (GFRP/KFRP) central strength member, sub cables stranded around the central strength member, and polyvinyl chloride (PVC) or low smoke zero halogen flame- retardant polyolefin (LSZH). (above 24 cores).
Product application
• Indoor integrated wiring
• The main wiring optical cable in the building
• Multi- fiber patchcord
Parameters
| Fiber count | Strength member | Cable diameter (mm) | Cable weight (kg/km) | Minimum bending radius (mm) | Tensile load(N) | Crush load(N/100mm) | Temperature range（℃） | |||
| static | dynamic | Short term | Long term | Short term | Long term | |||||
| 2 | high modulus aramid yarn | 4.5±0.2 | 19.2 | 45 | 90 | 400 | 200 | 1000 | 200 | - 20℃ - +60℃ |
| 4 | high modulus aramid yarn | 5.0±0.2 | 20.5 | 50 | 100 | 400 | 200 | 1000 | 200 | - 20℃ - +60℃ |
| 6 | high modulus aramid yarn | 5.5±0.2 | 28.3 | 55 | 110 | 660 | 200 | 1000 | 200 | - 20℃ - +60℃ |
| 8 | high modulus aramid yarn | 6.0±0.2 | 32.93 | 60 | 120 | 660 | 200 | 1000 | 200 | - 20℃ - +60℃ |
| 12 | high modulus aramid yarn | 6.5±0.2 | 36.5 | 65 | 130 | 660 | 200 | 1000 | 200 | - 20℃ - +60℃ |
| 16 | high modulus aramid yarn | 7.0±0.2 | 45.2 | 70 | 140 | 660 | 200 | 1000 | 200 | - 20℃ - +60℃ |
| 24 | high modulus aramid yarn | 8.5±0.2 | 67.2 | 85 | 170 | 1320 | 400 | 1000 | 200 | - 20℃ - +60℃ |
| 36 | high modulus aramid yarn | 14.2±0.5 | 89.8 | 142 | 284 | 1320 | 400 | 1000 | 300 | - 20℃ - +60℃ |
| 48 | high modulus aramid yarn | 16.2±0.5 | 106.9 | 162 | 324 | 1320 | 400 | 1000 | 300 | - 20℃ - +60℃ |
| 72 | high modulus aramid yarn | 19.5±0.5 | 581.3 | 195 | 390 | 1320 | 400 | 1000 | 300 | - 20℃ - +60℃ |
| 96 | high modulus aramid yarn | 22.8±0.8 | 797.8 | 228 | 456 | 1320 | 400 | 1000 | 300 | - 20℃ - +60℃ |
| 144 | high modulus aramid yarn | 26.4±0.8 | 728.4 | 264 | 528 | 1320 | 400 | 1000 | 300 | - 20℃ - +60℃ |
