ACSR Bison Conductor

CODE

AREA

STRANDING

O.D.

WEIGHT

STRENGTH

RESISTANCE

AT 20℃

Nominal

Al..

Al.

St.

Total

Al.

St.

Total

mm2

kg/km

Ω/km

Bison

350

381.80

49.50

431.30

54/3.00

7/3.00

27.00

1056

388

1444

120.90

0.07573

ACSR APPLICATIONS

ACSR conductors are widely used for electrical power transmission over long distances, since they are ideal for long overhead lines spans. They are also used as a messenger for supporting overhead electrical cables.

ACSR STANDARDS

BS 215-2

ACSR CABLE CONSTRUCTION

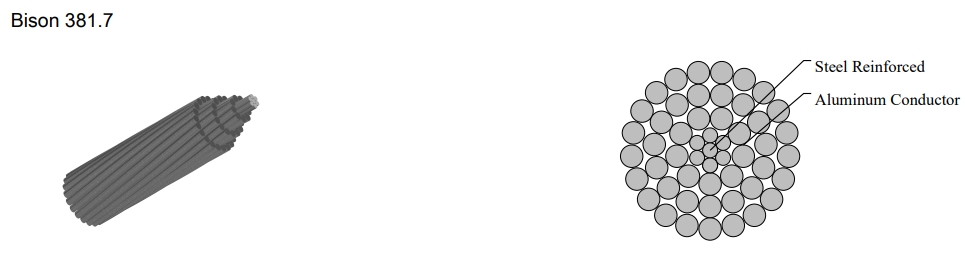

ACSR conductors are formed by several wires of aluminium and galvanized steel, stranded in concentric layers. The wire or wires which form the core, are made of galvanized steel and the external layer or layers, are of aluminium. Galvanized steel core consist normally of 1, 7 or 19 wires. The diameters of steel and aluminium wires can be the same, or different.By varying the relative proportions of aluminium and steel, the required characteristics for any particular application can be reached. A higher U. T. S. Can be obtained, by increasing steel content, and a higher current carrying capacity by increasing aluminium content.

CODE	Conductor Area		No. and Nominal Diameter of Wires		Approx.Overall Diameter	Calculated D.C Resistance at 20°C(Max.)	Approx.Conductor Weight		Breaking Load	Standard Packing Length	Drum size	Approx. Gross weight
CODE	Total	Aluminium	Aluminium	Steel	Approx.Overall Diameter	Calculated D.C Resistance at 20°C(Max.)	Aluminium	Total	Breaking Load	Standard Packing Length	Drum size	Approx. Gross weight
	Sqmm		No./mm		mm	Ohm/Km	Kg/Km		KN	Metre±5%		KG
MOLE	12.39	10.62	6/1.50	1/1.50	4.50	2.702	29	43	4.1	2000	D-6	130
SQUIRREL	24.43	20.94	6/2.11	1/2.11	6.33	1.370	58	85	7.9	2000	D-8	220
FOX	42.77	36.66	6/2.79	1/2.79	8.37	0.7827	101	149	13.2	2000	D-9	360

MINK	73.71	63.18	6/3.66	1/3.66	10.98	0.4541	173	255	21.8	2000	D-10	570
SKUNK	100.50	63.48	12/2.59	7/2.59	12.95	0.4565	175	465	53.1	2000	D-12	1040
BEAVER	87.82	74.82	6/3.93	1/3.99	11.97	0.3834	205	302	25.7	2000	D-11	705

RACCON	92.4	79.20	6/4.10	1/4.10	12.30	0.3623	217	320	27.2	2000	D-12	750
OTTER	97.86	83.88	6/4.22	1/4.22	12.66	0.3421	230	339	28.7	2000	D-12	790
HYENA	126.2	105.8	7/4.39	7/9.13	14.57	0.2712	290	450	40.9	2000	D-12	1010

COYOTE	152.2	132.1	26/2.52	7/1.91	15.89	0.2187	365	522	46.4	2000	D-14	1190
COUGAR	137.5	130.3	18/3.05	1/3.05	15.25	0.2210	362	419	29.8	2000	D-14	990
TIGER	161.7	131.1	30/2.36	7/2.36	16.52	0.2204	362	602	58.0	2000	D-14	1350

LION	294.2	238.5	30/3.18	7/3.18	22.26	0.1212	659	1095	100.6	2000	D-18	2430
BEAR	325.6	264.0	30/3.35	7/3.35	23.45	0.1095	730	1213	111.1	2000	D-18	2627
GOAT	400.0	324.3	30/3.71	7/3.71	25.97	0.08910	896	1489	135.7	2000	D-19	3300

SHEEP	461.4	374.1	30/3.99	7/3.99	27.93	0.07724	1034	1718	155.9	2000	D-19	3760
ANTELOPE	421.5	373.1	54/2.97	7/2.97	26.73	0.07747	1032	1411	118.2	2000	D-19	3140
BISON	431.3	381.8	54/3.00	7/3.00	27.00	0.07571	1056	1444	120.9	2000	D-19	3210

DEER	529.5	429.3	30/4.27	7/4.27	29.89	0.06731	1186	1971	178.5	2000	D-21	4360
CAMEL	536.8	475.2	54/3.35	7/3.35	30.15	0.06083	1314	1797	145.7	2000	D-22	4060
MOOSE	597.2	528.7	54/3.53	7/3.53	31.77	0.05468	1462	1999	161.1	2000	D-22	4470

Conductors generally conform to BS 215 (Part 2)1970

How to Order ACSR BISON Price
