Indonesia Outdoor FTTH Drop Cable with Strength Wire, 1/2/4-Core
Release time: 2023-11-17

Indonesia Outdoor FTTH Drop Cable with Strength Wire, 1/2/4-Core

Outdoor FTTH Drop Cable Description

FTTH has been the final solution of fiber-optic networks. It adapts to the demand for high speed and massive transmission of optical network signals from many users. In FTTH access projects, common indoor fiber optic cable cannot meet the requests of indoor distribution in mechanical ability and tensile properties. Under the situation of the market's needs, FTTH drop cable with low bending radius and high intensity has been widely used in FTTH's access network.

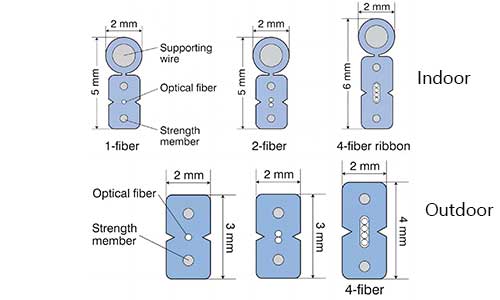

FTTH Cable Structure

The optical fiber unit is positioned in the center. Two parallel strength members are placed at two sides. Then, the cable is completed with a jacket.

Fiber Drop Cable Features

  • 1.Low purchasing and construction costs
  • 2.Soft and flexible, good bending performance
  • 3.Simple structure, compact and lightweight, and high practicability
  • 4.Flame retardant LSZH jacket meets relevant fire protection requirements in the indoor environment
  • 5.Two parallel strength members ensure good performance of crush resistance to protect the fiber
  • 6.Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
  • 7.Novel notch design for easy stripping, and easy connection without splicing or with splicing, simplify the installation and maintenance

FTTH Fiber Optic Cable Applications

  1. 1.FTTx FTTH project for indoor cable
  2. 2.Installation in a small bending environment

FTTH Drop Cable Specification

FTTH Drop Cable Specification Items Specification
Fiber Count 1/2/4

Colored Coating Fiber
Dimension 250± 15μm
Color Blue/Blue, Orange

Strength Member
Dimension 0.45mm/0 .5mm
Material Steel Wire/FRP

Self-supporting Member
Dimension 1.0mm
Material Steel Wire


Jacket
Dimension 5.2±0.2mm×2. 1±0. 1mm
Material LSZH
Color Black/White


How to Order Indoor & Outdoor Ftth Fiber Cable

Our team is committed to providing outstanding service before, during, and after the sale. To learn more about our products or to place an order, please contact your sales representative. WhatsApp/Mobile/WeChat our Customer Service Department at +86 186 3866 8721 or email us at info@uni-fibercable.com
