Armored Fiber Optic Cable Manufacturer
Armored fiber optic cable, as the name implies, is a kind of fiber optic cable with a protective “armor” wrapped around the fiber cable core. The armor is mainly used to protect the fiber optic cable from animal bites, moisture erosion or other damage. For example, flowing are few most required armored fiber optic cables by our clients. Actually, all armored fiber optic cable are popular, but not every market is the same. For instance, some US customers love double armoring and spiral armoring. So if you are planning to order them, it is best to ask our experienced consultants.
Armored Fiber Optic Cable Types
Armored Fiber Optic Cable Specifications
Armored Fiber Optic Cable | Plenum · Riser · Direct Burial
Armored Fiber Optic Cable is a version of fiber that is covered with an additional metal layer to prevent fractures as well as corrosion from rodents, moisture, and supplementary threats. Armored Fiber Optic Cable is available in both indoor/outdoor variants with 2 to 144 strand counts. Riser OFCR, plenum OFCP, and direct burial applications could serve as the opportune moment to utilize Armored Fiber Optic Cable.
Armored Types | Aluminum Interlocking Armor and Corrugated Steel
The metal armor that protects the fiber cable within is manufactured of either aluminum interlocking armor or standard corrugated steel. Corrugated steel Armored Fiber is designed to operate ideally within rugged direct burial applications, remaining durable, while repelling moister and natural decay. Alternatively, our aluminum interlocking armor fiber offers you the same protection as the corrugated steel, only aluminum has greater flexibility during and throughout the installation process.
Plenum Armored Fiber Optic Cable
Plenum Armored Fiber Optic Cable is most widely chosen among consumers, with the ability to be employed in both indoor/outdoor plenum and riser applications. In order to ensure the quality of the products we provide, we use Corning glass; moreover, Plenum Armored Fiber Optic Cable is OFCP rated and contains tight buffered fibers with aramid yarn strength members. These Armored Cables are an alternative to conduit installations. In addition, this fiber has a Plenum rating, which will all-around safeguard the application site in case of an emergency and if the cable is installed within air handling spaces since the outer jacket of the cable is coated with low smoke and flame-retardant materials.
Riser Armored Fiber Optic Cable
Our OFCR Riser Armored Fiber Optic Cable is exceptional for multi-story building applications, in the midst of high traffic areas and in between floors that require mechanical protection. The armor is helically wrapped aluminum interlocking armor, optimized for protecting your cables from fractures and environmental calamities.
Direct Burial Fiber Optic Cable
For underground direct burial applications, Uni-fibercable's Direct Burial Fiber Optic Cable is frequently administered as a means of achieving a clean and sound installation. Though direct burial sites are often afflicted with the unknown, there is no need for concern because Direct Burial Fiber Optic Cable is incredibly durable, fending off rodents and additional impacts through a corrugated steel shield. Manufactured with the intent of meeting an array of network standards, Direct Burial Fiber Optic Cable is available in 2 to 144 strands options as well.
Professional manufacturing for fiber optic cables and on-demand cable specs. Request an armored fiber quote today.
Consult with our team of fiber cable experts
GET A QUOTE
Armored Fiber Optic Cable Manufacturer
Armored fiber optic cable, as the name implies, is a kind of fiber optic cable with a protective “armor” wrapped around the fiber cable core. The armor is mainly used to protect the fiber optic cable from animal bites, moisture erosion or other damage. For example, flowing are few most required armored fiber optic cables by our clients. Actually, all armored fiber optic cable are popular, but not every market is the same. For instance, some US customers love double armoring and spiral armoring. So if you are planning to order them, it is best to ask our experienced consultants.
Armored Fiber Optic Cable Types
| Picture | Product Name | Fiber Core | |
|---|---|---|---|
| 1 |
|
GYTA53 Double Sheath Steel Tape Armored Outdoor Direct Buried Installation Single Mode /Multimode Fiber Optical Cable Price | 2/4/6/8/12/16/24/36/48/96/144/288 |
| 2 |  |

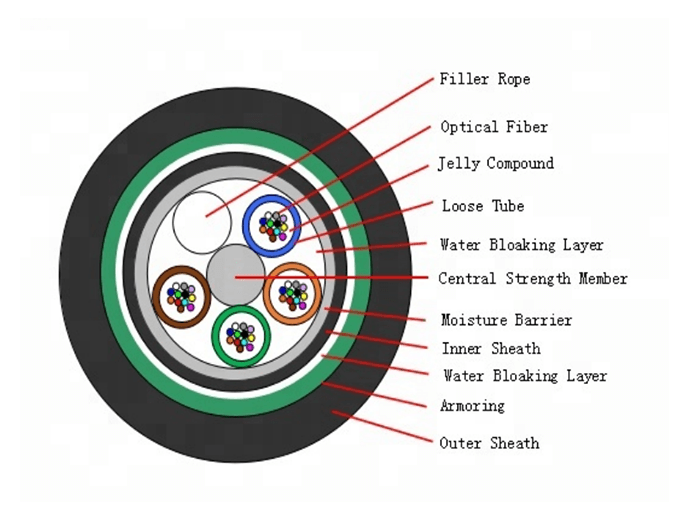

GYTS53 Double Sheath Armored Outdoor G652D Underground Single-mode/Multimode Direct Buried Installation Fiber Optical Cable | 2/4/6/8/12/16/24/36/48/96/144/288 |
| 3 |  |
GYTY53 Stranded Loose Tube Cable with Steel Tape Single Armored and Double Sheathed 12 Core 24 Core Single mode/multimode Fiber Optic Cable Price | 2/4/6/8/12/16/24/36/48/96/144/288 |
| 4 |  |

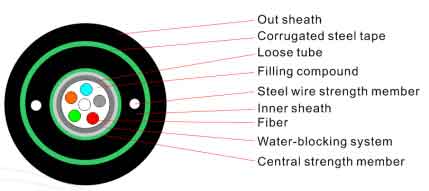

GYXTW53 Central Loose Tube Double Steel Tape and Double PE jacket Aerial Direct Buried Installation Fibra óptica multimodo 4 6 hilos precio | 2/4/6/8/12/16/24 |
| 5 |  |

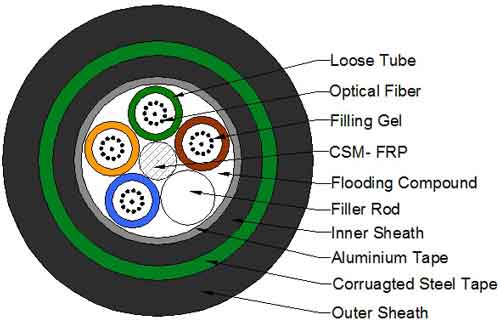

GYFTA53 Double Sheath PSP APL Enhanced Armor Direct Buried Installation Single mode ITU-T G652D and multimode 62.5/125 50/125 Fiber Optical Cable | 2/4/6/8/12/16/24/36/48/96/144/288 |
| 6 |  |

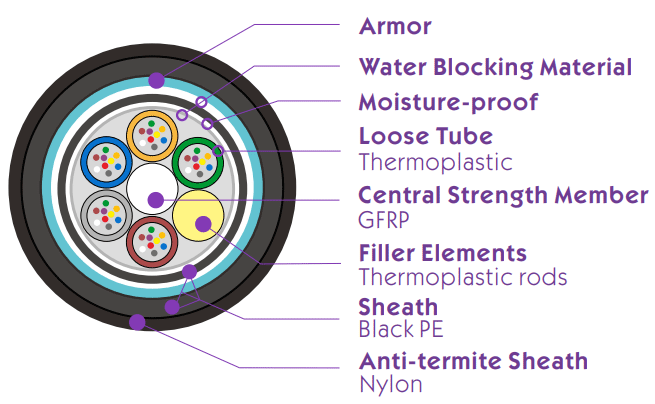

GYFTA54 Double PE Nylon Sheath PSP Glass Yarns Tape Enhanced Armor Anti-Rodent Direct Buried Installation Anti-rodent & Anti-termite Fiber Optical Cable | 2/4/6/8/12/16/24/36/48/96/144/288 |
| 7 |  |

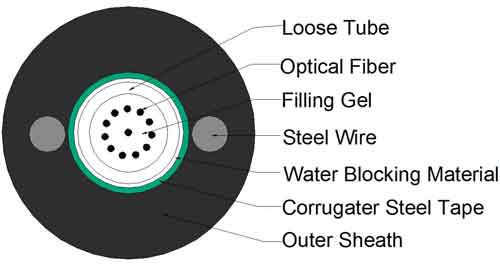

GYXTW-4b, 6b1, 8b1, 12b1, 24b1 Central Tube Aerial and Duct Unitube Light-armored Optical Fiber Cable | 2/4/6/8/12 |
| 8 |  |
GYTA APL Armored Stranded Loose Tube Overhead and Pipelines Outdoor Fiber Optic Cable | 2/4/6/8/12/16/24/36/48/96/144/216 |
| 9 |  |

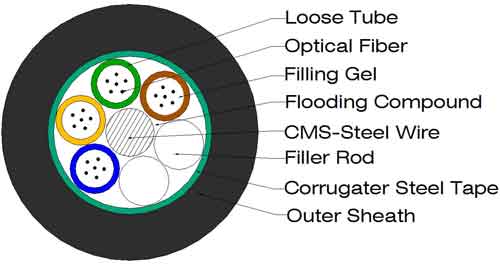

GYTS PSP Armored Stranded Loose Tube Single Armored Single Jacket Fiber Optical Cable Price | 2/4/6/8/12/16/24/36/48/96/144/216 |
| 10 | |

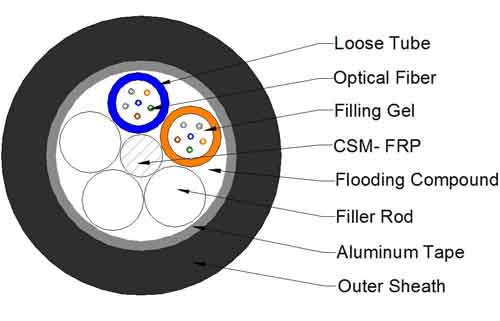

GYFTA GFRP CSM APL Armored Stranded Loose Tube Non-metal Reinforced Core Aluminum Armored Self-supporting Aerial/Duct Outdoor Optical Fiber Cable | 2/4/6/8/12/16/24/36/48/96/144/216 |
| 11 |  |

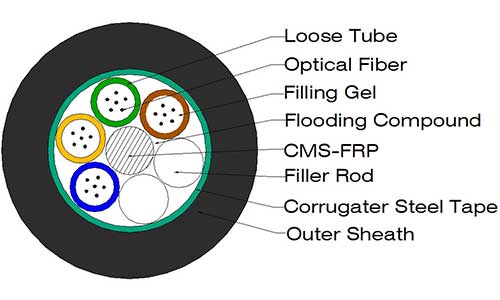

GYFTS GFRP CSM PSP Armored Stranded Loose Tube Optical Fiber Cable | 2/4/6/8/12/16/24/36/48/96/144/216 |
| 12 |  |

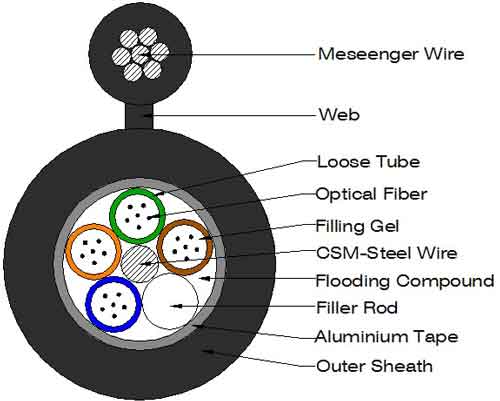

GYTC8A with APL armored Figure-8 Self-supporting Aerial Optical Cable | 2/4/6/8/12/16/24/36/48/96/144 |
| 13 |  |

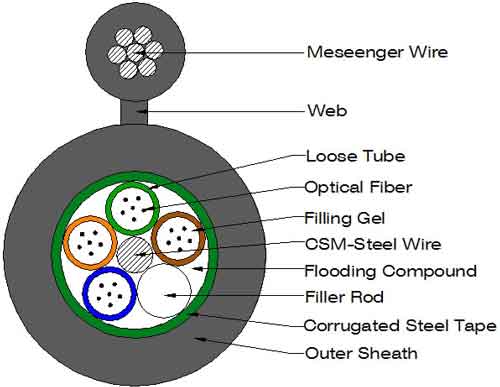

GYTC8S with PSP Armored Self-supporting Aerial/Overhead Single-mode/Multimode Fiber Optic Cable for Long Distance Communication and Inter Office Communication Figure-8 Cable | 2/4/6/8/12/16/24/36/48/96/144 |
| 14 |  |

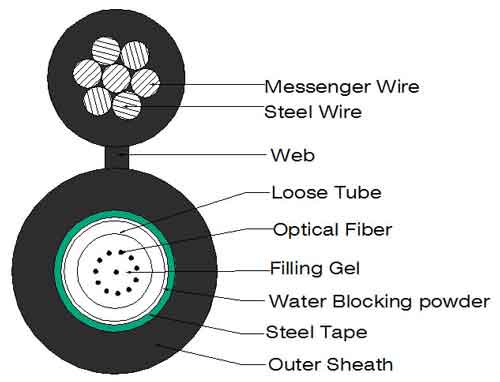

GYXTC8S PSP Armored Uni-tube Aerial Installation Figure-8 Self-supporting Single-mode/Multimode Outdoor Fiber Optic Cable | 2/4/6/8/12 |
| 15 | |
GYXTC8A APL Armored Uni-tube Aerial Installation Figure-8 Self-supporting Optical Cable | 2/4/6/8/12 |
| 16 |  |

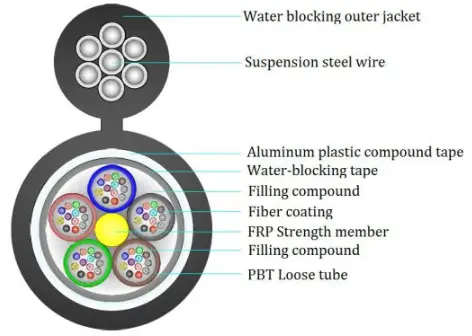

GYFTC8A FRP CSM Aluminum Armored Aerial Installation Figure-8 Self-supporting Optical Cable | 2/4/6/8/12/16/24/36/48/96/144 |
Armored Fiber Optic Cable Specifications
| Armoring Materials | Corrugated Steel Tape 2 Parallel Steel Wire |
Corrugated Steel Tape Central Steel Wire |
Corrugated Steel Tape Aluminum Tape Central Steel Wire |
Steel Wire Armoring Corrugated Steel Tape FRP Central Strength Member |
|---|---|---|---|---|
| Fiber Count | 2 ~ 24 Fiber | 2 ~ 288 Fiber | 2 ~ 216 Fiber | 2 ~ 36 Fiber |
| Cable Structure | Central Uni-Tube | Stranded Loose Tube | Stranded Loose Tube | Stranded Loose Tube |
| Cable Weight (Ref) | 82 ~ 147 kg/km | 96 ~ 283 kg/km | 177 ~ 312 kg/km | 801 ~ 984 kg/km |
| Tensile Strength Long / Short Term(kg/km) | 600/1500 N ~ 1000/3000 N | 600/1500 N | 1000/3000 N | 4000/10000 N ~ 10000/20000 N |
| Crush Resistance Long / Short Term(N/100m) | 300/1000 N | 300/1000 N | 1000/3000 N | 3000/5000 N |
| Bending Radius Static 1 Dynamic (mm) Full Data Sheet |
10D/20D | 10D/20D | 12.5D/25D | 12.5D/25 |
| Applications for Armored Fiber Optic Cables | Duct, Aerial | Duct, Aerial | Buried, Duct | Duct, Buried, Underwater |
