Aerial Bundled Cables for Iranian Customers

Aerial Bundle Cable Aerial Bundle Cable (ABC) Features
Using aluminum instead of copper: which is lighter and more economical
Can be produced with different sections
With galvanized steel restraint wire
ABC cables consist of insulated conductor bundles and have a variety of structures
These cables have higher safety and voltage level stability in this type of cables is higher
Due to the polymer coating of the conductors, unauthorized use is not possible
Conductor covers are made of XLPE type material
It has higher flexibility and is easier to install than conventional overhead lines
These cables are less risky due to their coverage in terms of short circuit and current leakage and are safer in the event of an accident

Self-supporting Cables Descriptions
Self-supporting cables can be used in distribution systems instead of bare air conductors
It is very suitable for rural areas due to the accumulation of wires and narrow passages
Due to their high safety, the use of this type of cable is recommended in forest areas
In cases where voltage fluctuations are significant, this type of cable provides more stable conditions than the voltage level


MV Aerial Bundled Cables (MV-ABC)

MV ABC Cables Applications:
• MV-ABC are suitable for aerial installation and for public power distribution networks with rated voltages of  6/10 Up to and including 18/30 KV, Fixed for pylons, clamped to tunnel walls , etc.
• Assembled cores are the same as the ones of MV underground cables. Hence, they can be buried if necessary.
MV ABC Product Description:
In the voltage designation of U0/U(Um), The rated voltages of the cables considered in IEC standard are as follows: U0/U(Um)= 6/10(12) - 12/20(24) - 18/30(36)KV
U0 is the rated power frequency voltage between conductor and earth or metallic screen.
U is the rated power frequency voltage between conductors.
Um is the maximum value of the "highest system voltage" for which the equipment may be used.

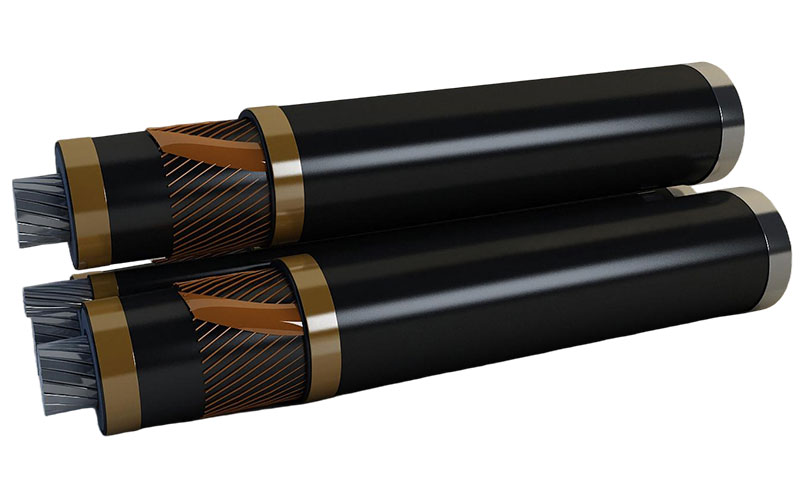

MV ABC Construction features:

• - Conductor size: Up to 240 sq.mm
  - No. of cores: Three
  - Conductor material: Aluminum
  - Conductor type: Compacted Round stranded
  - Conductor screen: Semi-conductive compound
  - Insulation: Cross-linked polyethylene (XLPE)
  - Insulation screen: Semi-conductive compound
  - Metallic screen: Copper wires, Copper tape or combination of wires & tape
  - Sheath: Black Polyvinyl chloride (PVC) or high density polyethylene ( HDPE)
  - Messenger: Bare or insulated galvanized stranded steel wires.
  - Design: MV Aerial bundled cables are made of three XLPE insulated cores assembled around an  insulated or bare steel messenger.
  Other features:
  - Ultra violet (UV) resistant
  - Low smoke and fume (LSF)
  - Halogen free and flame retardant (HFFR)
  Standards: IEC60502-2, AS 3599



LV ABC With Aluminum Alloy Neutral Messenger

Applications:
• LV-ABC is a novel concept for over-head power distribution. Compared to bare overhead conductor distribution system, ABC provide higher safety and reliability, self-supporting and suspended between supports, lower power losses and ultimate system economy by reducing installation, maintenance and operating costs. ABC distribution system is ideal for rural distribution, urban areas, hilly areas, forest and costal areas.
Product Description:
In the voltage designation of U0/U(Um) , the rated voltages of the cables considered in BS and NFC standards are as follow: U0/U(Um)=0.6/1(1.2) KV.
U0 is the rated power frequency voltage between conductor and earth;
U is the rated power frequency voltage between conductors;
Um is the maximum value of the "highest system voltage" for which the equipment may be used.

• Construction features:
  - Size:
  Phase: 16 to 150 sq.mm.
  Neutral messenger: 35 to 95 sq.mm.
  Street lighting: 16 to 35 sq.mm. (If applicable.)
  - Conductor material:
  Phase: Aluminum
  Neutral messenger: Aluminum alloy
  Street lighting: Aluminum. (If applicable.)
  - Conductor type:
  Phase: Circular compacted
  Neutral messenger: Circular compacted/uncompacted
  Street lighting: Circular compacted. (If applicable.)
  - Insulation: Extruded XLPE or HDPE, black ( UV absorber ) , weather resistant.
  - Design: The cable consists of one, two or three insulated phase conductors and one or two optional insulated
  street lighting conductors stranded around the bare or insulated neutral messenger.
  - Core identification with longitudinal ridges
  Standards: BS 7870 , NFC 33-209



LV ABC With Galvanized Steel Messenger

Applications:
• LV-ABC is a novel concept for over-head power distribution. Compared to bare overhead conductor distribution system, ABC provide higher safety and reliability, self-supporting and suspended between supports, lower power losses and ultimate system economy by reducing installation, maintenance and operating costs. ABC distribution system is ideal for rural distribution, urban areas, hilly areas, forest and costal areas.

Product Description:
In the voltage designation of U0/U(Um) , the rated voltages of the cables considered in BS and NFC standards are as follow: U0/U(Um)=0.6/1(1.2) KV.
U0 is the rated power frequency voltage between conductor and earth;
U is the rated power frequency voltage between conductors;
Um is the maximum value of the "highest system voltage" for which the equipment may be used.

• Construction features:
  - Size:
  Phase : 16 to 150 sq.mm.
  Neutral: 16 to 95 sq.mm.
  Street lighting : 16 to 35 sq.mm. (If applicable.)
  messenger : 16 to 25 sq.mm
  - Conductor material : Aluminum
  - messenger material : Galvanized steel
  - Conductor type :  Circular compacted
  - Insulation: Extruded XLPE or HDPE, black ( UV absorber ) , weather resistant.
  - Design: The cable consists of one, two or three insulated phase conductors , one or two optional insulated
  street lighting conductors & one insulated neutral conductor stranded around the bare or insulated messenger.
  - Core identification with longitudinal ridges
  Standards : BS 7870 , NFC 33-209

LV ABC With ACSR Neutral Messenger

Applications:
• LV-ABC is a novel concept for over-head power distribution. Compared to bare overhead conductor distribution system, ABC provide higher safety and reliability, self-supporting and suspended between supports, lower power losses and ultimate system economy by reducing installation, maintenance and operating costs. ABC distribution system is ideal for rural distribution, urban areas, hilly areas, forest and costal areas.

Product Description:
In the voltage designation of U0/U(Um) , the rated voltages of the cables considered in BS and NFC standards are as follow: U0/U(Um)=0.6/1(1.2) KV.
U0 is the rated power frequency voltage between conductor and earth;
U is the rated power frequency voltage between conductors;
Um is the maximum value of the "highest system voltage" for which the equipment may be used.


• Construction features:
  - Size :
   Phase: 16 to 150 sq.mm.
  Neutral messenger: 16 to 95 sq.mm.
  Street lighting: 16 to 35 sq.mm. (If applicable.)
  - Conductor material:
  Phase : Aluminum
  Neutral messenger: Aluminum conductor steel reinforced (ACSR)
  Street lighting: Aluminum. (If applicable.)
  - Conductor type:
  Phase: Circular compacted
  Neutral messenger: Circular uncompacted
  Street lighting: Circular compacted. (If applicable.)
  - Insulation: Extruded XLPE or HDPE, black ( UV absorber ) , weather resistant.
  - Design: The cable consists of one, two or three insulated phase conductors and one or two optional insulated
  street lighting conductors stranded around the bare or insulated neutral messenger.
  - Core identification with longitudinal ridges
  Standards: BS 7870 , NFC 33-209

How to Order Aerial Bundled Cables Price

Our team is committed to providing outstanding service before, during, and after the sale. To learn more about our products or to place an order, please contact your sales representative. Email us at info@uni-fibercable.com
