GJXFH/GJXH Indoor FTTH Bow-type Drop Cable

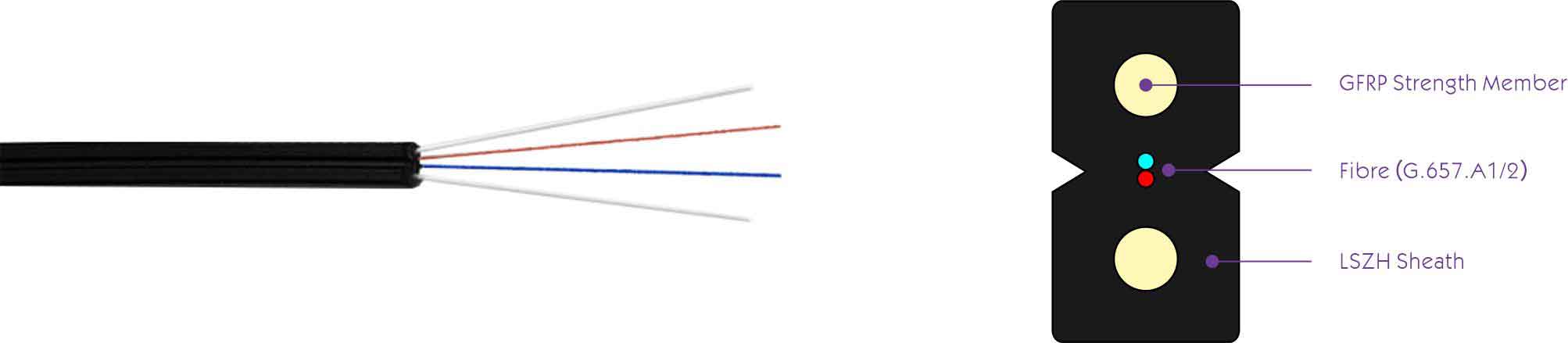

The typical bow-type drop optical cable(GJXFH/GJXH) includes central optical fibers with 2 parallel KFRPs or steel wire as the strength members placed on both sides, a LSZH or PVC sheath is extruded outside.
Application
1. All types of fiber cables with different structures
2. High performance optical network operating
3. High speed optical routes in buildings (FTTX)
Product Series
Parameters
The typical bow-type drop optical cable(GJXFH/GJXH) includes central optical fibers with 2 parallel KFRPs or steel wire as the strength members placed on both sides, a LSZH or PVC sheath is extruded outside.
Application
1. All types of fiber cables with different structures
2. High performance optical network operating
3. High speed optical routes in buildings (FTTX)
Product Series
| GJXFH | FRP Strength Member+2.0*3.0LSZH |
| GJXH | Steel Wire Strength Member+2.0*3.0 LSZH |
| GJXH-Small Diamter | Steel Wire Strength Member+1.6*2.0 LSZH |
| GJX(F)DH | Ribbon Fibers+2.0*4.0LSZH |
| GJYX(F)CH | Self-Supporting Wires+2.0*5.2LSZH |
| GJYX(F)CH-Small | Self-Supporting Wires+1.7*3.8LSZH |
| GJYXFDCH(GJYXDCH) | Self-Supporting Wires+Ribbon Fibers+1.7*3.8LSZH |
| GYFJU | Aramid Yarn Strength Round Sheath LSZH |
| GYGXY | Central Tube Glass Yarns armor Round Sheath HDPE |
| FDC | Flat Drop Cable+Central Tube+3.0*6.0 LSZH |
| ASU | Self-Supporting FRP Strength+Tube+7.0/8.0 HDPE |
| GYXY-8S | Figure-8 Self-supporting+Aramid Yarns+Tubes+4.6*8.8HDPE |
| GYFXBY | Flat Drop Cable+Central Tube+4.6*8.1 LSZH |
Parameters
| P/N | Strengthen member | Fiber count (F) |
Nominal size (mm) |
Nominal weight (kg/km) |
Max tensile strength Long/short term (N) |
| GJXFH-1G657A1 | GFRP | 1 | (2.0±0.1)*(3.0±0.1) | 7.5 | 40/80 |
| GJXFH-2G657A1 | GFRP | 2 | (2.0±0.1)*(3.0±0.1) | 7.5 | 40/80 |
| GJXFH-4G657A1 | GFRP | 4 | (2.0±0.1)*(3.0±0.1) | 7.5 | 40/80 |
| GJXFH-1G657A1 | KFRP | 1 | (2.0±0.1)*(3.0±0.1) | 7.5 | 40/80 |
| GJXFH-2G657A1 | KFRP | 2 | (2.0±0.1)*(3.0±0.1) | 7.5 | 40/80 |
| GJXFH-4G657A1 | KFRP | 4 | (2.0±0.1)*(3.0±0.1) | 7.5 | 40/80 |
| GJXH-1G657A1 | Steel wire | 1 | (2.0±0.1)*(3.0±0.1) | 10.5 | 100/200 |
| GJXH-2G657A1 | Steel wire | 2 | (2.0±0.1)*(3.0±0.1) | 10.5 | 100/200 |
| GJXH-4C657A1 | Steel wire | 4 | (2.0±0.1)*(3.0±0.1) | 10.5 | 100/200 |
