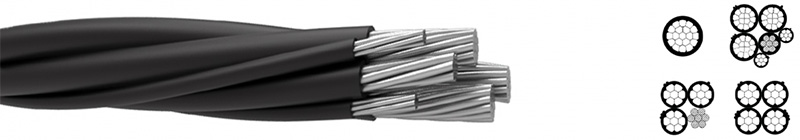

NFC 33-209 Cable Aérien Torsadé Application
The Cable Aérien Torsadé NFC 33-209 aerial bundled cables are used for overhead distribution line and electrical installations with alternating power networks with nominal voltage U0/U 0 .6/1kV or in direct power networks with maximum voltage according to land 0.9kV.NFC 33-209 Cable Aérien Torsadé Construction
Phase Conductor: Aluminium conductor, round stranded compressed (RM).
Neutral Conductor: Alloy aluminium conductor (AlMgSi), round stranded compressed (RM).
Insulation: XLPE. Load-bearing / neutral core – marked with standard and producers phase core – marked with digits 1, 2, 3.
Assembly: Cores and the neutral, conductor stranded together in right-hand lay, additionally 1, 2 or 3 cores of reduced cross section can be co-stranded.
Cable Aérien Torsadé NFC Standard Specification
| Number of Cores x Nominal Cross Section | Overal Diameter | Weight | Maximum Conductor Resistance | Minimum Breaking Load | Current Rating |
| No.x mm^2 | mm | Kg/Km | Ω/Km | KN | A |
| 2×10 RM | 12.8 | 93 | 3.08 | 1.5 | 38 |
| 4×10 RM | 15.4 | 183 | 3.08 | 1.5 | 38 |
| 2×16 RM | 14.8 | 129 | 1.91 | 2.3 | 72 |
| 2×16 RN + 2×1.5 RE | 14.8 | 176 | 1.910/12.100 | 2.3 | 72 |
| 4×16 RM | 17.8 | 257 | 1.91 | 2.3 | 72 |
| 4×16 RN + 2×1.5 RE | 17.8 | 304 | 1.910/12.100 | 2.3 | 72 |
| 2×25 RM | 18 | 202 | 1.2 | 3.8 | 107 |
| 2×25 RM + 2×1.5 RE | 18 | 249 | 1.200/12.100 | 3.8 | 107 |
| 4×25 RM | 21.7 | 404 | 1.2 | 3.8 | 107 |
| 4×25 RM + 2×1.5 RE | 21.7 | 451 | 1.200/12.100 | 3.8 | 107 |
| 2×35 RM | 20.8 | 269 | 0.868 | 5.2 | 132 |
| 2×35 RM + 2×1.5 RE | 20.8 | 316 | 0.868/12.100 | 5.2 | 132 |
| 4×35 RM | 25.1 | 539 | 0.868 | 5.2 | 132 |
| 4×35 RM + 2×1.5 RE | 25.1 | 586 | 0.868/12.100 | 5.2 | 132 |
| 2×50 RM | 23.4 | 352 | 0.641 | 7.6 | 165 |
| 2×50 RM + 2×1.5 RE | 23.4 | 399 | 0.641/12.100 | 7.6 | 165 |
| 1×54.6 RM + 3×25 RM | 21.7 | 507 | 0.630/1.200 | 3.8 | 107 |
| 1×54.6 RM + 3×25 RM + 1×16 RM | 24.3 | 573 | 0.630/1.200/1.910 | 3.8/2.3 | 107/72 |
| 1×54.6 RM + 3×25 RM + 2×16 RM | 29.7 | 639 | 0.630/1.200/1.910 | 3.8/2.3 | 107/72 |
| 1×54.6 RM + 3×25 RM + 3×16 RM | 31.1 | 705 | 0.630/1.200/1.910 | 3.8/2.3 | 107/72 |
| 1×54.6 RM + 3×35 RM | 25.1 | 615 | 0.630/0.868 | 5.2 | 132 |
| 1×54.6 RM + 3×35 RM + 1×16 RM | 28.1 | 680 | 0.630/0.868/1.910 | 5.2/2.3 | 132/72 |
| 1×54.6 RM + 3×35 RM + 2×16 RM | 34.3 | 748 | 0.630/0.868/1.910 | 5.2/2.3 | 132/72 |
| 1×54.6 RM + 3×35 RM + 3×16 RM | 35.9 | 814 | 0.630/0.868/1.910 | 5.2/2.3 | 132/72 |
| 1×54.6 RM + 3×35 RM + 1×25 RM | 28.1 | 714 | 0.630/0.868/1.200 | 5.2/3.8 | 132/107 |
| 1×54.6 RM + 3×50 RM | 28.2 | 741 | 0.630/0.641 | 7.6 | 165 |
| 1×54.6 RM + 3×50 RM + 1×16 RM | 31.6 | 806 | 0.630/0.641/1.910 | 7.6/2.3 | 165/72 |
| 1×54.6 RM + 3×50 RM + 2×16 RM | 38.6 | 875 | 0.630/0.641/1.910 | 7.6/2.3 | 165/72 |
| 1×54.6 RM + 3×50 RM + 3×16 RM | 40.4 | 940 | 0.630/0.641/1.910 | 7.6/2.3 | 165/72 |
| 1×54.6 RM + 3×50 RM + 1×25 RM | 31.6 | 841 | 0.630/0.641/1.200 | 7.6/3.8 | 165/107 |
| 1×54.6 RM + 3×70 RM | 33 | 950 | 0.630/0.443 | 10.2 | 205 |
| 1×54.6 RM + 3×70 RM + 1×16 RM | 37 | 1014 | 0.630/0.443/1.910 | 10.2/2.3 | 205/72 |
| 1×54.6 RM + 3×70 RM + 2×16 RM | 45.2 | 1083 | 0.630/0.443/1.910 | 10.2/2.3 | 205/72 |
| 1×54.6 RM + 3×70 RM + 3×16 RM | 47.3 | 1148 | 0.630/0.443/1.910 | 10.2/2.3 | 205/72 |
| 1×54.6 RM + 3×70 RM + 1×25 RM | 37 | 1048 | 0.630/0.443/1.200 | 10.2/3.8 | 205/107 |
| 1×54.6 RM + 3×70 RM + 2×25 RM | 45.2 | 1150 | 0.630/0.443/1.200 | 10.2/3.8 | 205/107 |
| 1×54.6 RM + 3×70 RM + 3×25 RM | 47.3 | 1250 | 0.630/0.443/1.200 | 10.2/3.8 | 205/107 |
| 1×54.6 RM + 3×95 RM | 37.4 | 1176 | 0.630/0.320 | 13.5 | 240 |
| 1×54.6 RM + 3×95 RM + 1×16 RM | 41.9 | 1243 | 0.630/0.320/1.910 | 13.5/2.3 | 240/72 |

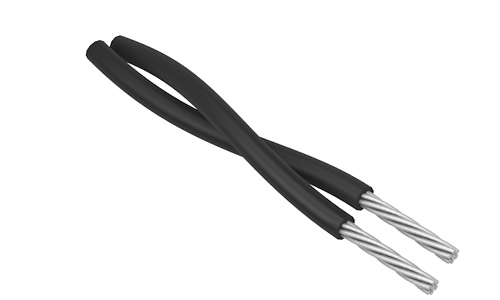

CÂBLE ISOLÉ 0.6/1KV TORSADÉ (BRANCHEMENT)
INSULATED CABLE 0.6/1KV TWISTED (CONNECTION)
CÂBLE DE BRANCHEMENT THS Use
Used for connecting subscriber meters and riser base boxes in buildings and enabling the power supply of street lightsCÂBLE DE BRANCHEMENT THS Description
Round core in Aluminum or Copper class 2, S ≤ 35mm 2PR/XLPE insulation in black color
CÂBLE DE BRANCHEMENT THS Special points
The cables can have a pair of 1.5mm 2 driver in class 1 round copper and insulated in colored cross-linked polyethylene PR / XLPE.| Imacab code | Composition & Nominal section (mm²) | Approx outer diameter (mm) | Approximate mass (Kg/Km) | Allowable current in amps at 30°C | Voltage drop V/A/Km cosØ=0.8 | Standard packaging T: Drum (m) |
| 2 round aluminum conductors, 1.5mm² single-phase copper driver | ||||||
| TRAB16 | 2x16 | 14 | 128 | 93 | 3.97 | T 2000 |
| TRAB16C | 2x16 | 14 | 128 | 93 | 3.97 | C 200 |
| TRB16CP | 2×16+2×1.5 | 15 | 260 | 93 | 3.97 | C 100 |
| TRAB25 | 2x25 | 17 | 200 | 122 | 2.54 | T 1000 |
| TRB25CP | 2×25+2×1.5 | 17 | 240 | 122 | 2.54 | C 80 |
| TRAB35 | 2x35 | 20 | 280 | 130 | 1.6 | T 1000 |
| 4 round aluminum conductors, 1.5mm² three-phase copper driver | ||||||
| TRAD16 | 4x16 | 18 | 260 | 83 | 3.44 | T 2000 |
| TRD16CP | 4×16+2×1.5 | 18 | 290 | 83 | 3.44 | C 100 |
| TRAD25 | 4x25 | 22 | 295 | 111 | 2.2 | T 1000 |
| TRD25CP | 4×25+2×1.5 | 22 | 350 | 111 | 2.2 | C 80 |
| TRAD35 | 4x35 | 24 | 532 | 138 | 1.62 | T 1000 |
| 2 single-phase round copper conductors | ||||||
| TRCB6 | 2x6 | 11 | 135 | 65 | 6.2 | T 1000 |
| TRCB10 | 2x10 | 12 | 210 | 89 | 3.7 | T 1000 |
| TRCB16 | 2x16 | 14 | 327 | 120 | 2.2 | T 1000 |
| 4 three-phase round copper conductors | ||||||
| TRCD6 | 4x6 | 13 | 270 | 58 | 5.5 | T 1000 |
| TRCD10 | 4x10 | 15 | 420 | 80 | 3.3 | T 1000 |
| TRCD16 | 4x16 | 18 | 654 | 110 | 2.1 | T 1000 |
