AERIAL SERVICE CONDUCTORS

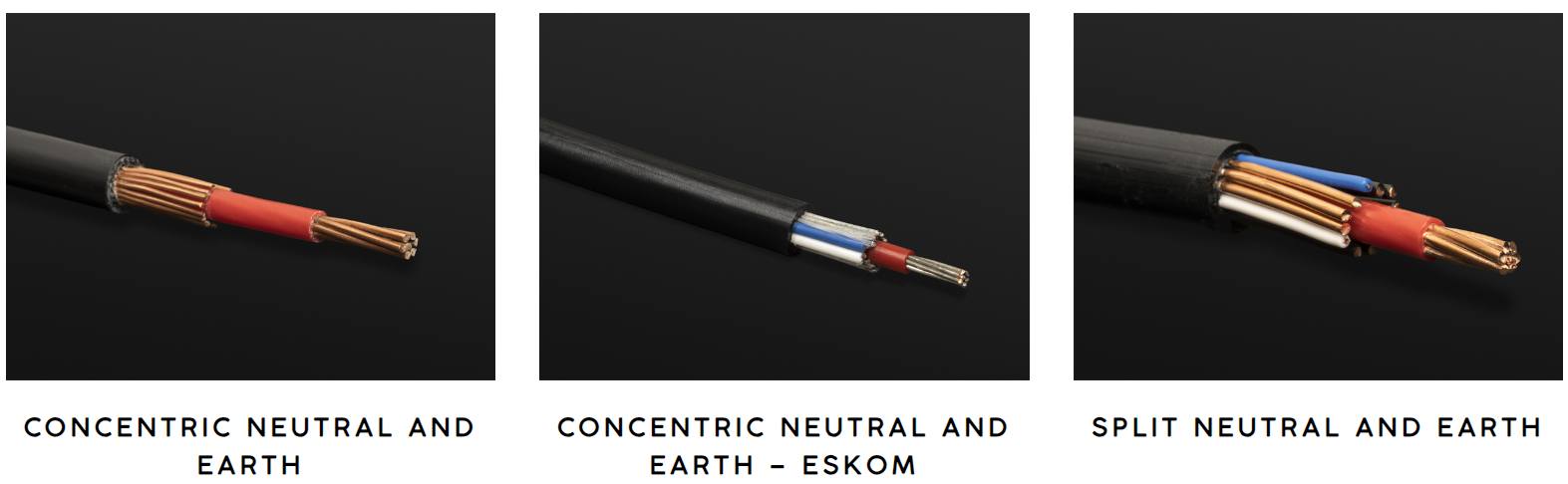

AERIAL SERVICE CABLE(CONCENTRIC NEUTRAL& EARTH)

Aerial service Cable (CNE) is used for house connections and can only be used for single phase supply. This cable is made to be suspended in the air but are also suitable for underground general use. split Concentric cable is suitable for power distribution as an underground or overhead cable. ltis constructed with a stranded hard drawn copper phase conductor, insulated with XLPE. The phase core is surrounded by concentricaly arranged bare neutral/earth conductors overall sheathed with black Polyethylene.

AERIALSERVICE CABLE(SPLIT NEUTRAL WITH PILOTCORES & EARTH)

Aeral serice Cable (SNE is used for house conections and can ony be used for single phase sup.This cable is made to be susended in the air but are also suitable for undereroundgeneral use. split concentric cable is suitable for power distribution as an underground or overhead cable. it is constructed with a stranded hard drawn copper phase conductor insulatedwith XLPE and Polyethyene insulated neutral with bare earth conductors. The phase coreisurounded by concentricaly aranged communications cores,bare earth and insulated neutral conductors overall sheathed with black Polyethylene.

Application

The concentric cable is used as electric service entrance from the power distribution network until the meter panel (especially where it is required to prevent “black” losses or electric power robbery), and as feeder cable from the meters panel until the panel or general distribution panel, just as it is specified in the National Electrical Code.


This type of conductor can be used in dry and wet places, directly buried or outdoors;Its maximum temperature of operation is 90 ºC and its voltage of service for all the applications is 600 V.

Construction of concentric cable

1.Solid or stranded aluminium conductor
2.Insulation with XLPE or PE or PVC
3.For two conductor cable, it is applied a helical mesh of copper wires over the central conductor,
4.For three or four conductors cable , parallel conductor or stranded conductor
5.PVC filler
6.Helical mesh of copper wires
7.Wrapping tape
8.Black color jacket of PE or PVC

Standard

XLPE/PE /PVC Insulated Concentric Cable is designed as IEC ,BS ,ASTM and othere standard or according to client’s requirement.

Construction Table

  BS7870 Aluminium Concentric PVC Cable CSALUMINIUM CONCENTRIC... BS7870 Copper Split Concentric PVC Cable CS
COPPER LSZH SPLIT...
BS7870 Aluminium Concentric LSZH Cable CSALUMINIUM CONCENTRIC... BS7870 Aluminium Split Concentric PVC Cable CSALUMINIUM SPLIT... BS7870 Aluminium Split Concentric LSZH Cable CSALUMINIUM SPLIT... BS7870 Copper Concentric Cable CS
COPPER CONCENTRIC...
BS7870 Copper Split Concentric PVC Cable CS
COPPER SPLIT CONCENTRIC...
VOLTAGE

0.6/1kV

CONDUCTOR

Class 1 Solid Aluminium

Class 2 stranded Copper

Class 1 Solid Aluminium

Class 2 Stranded Copper

INSULATION

XLPE (Cross-Linked Polyethylene)

XLPE (Cross-linked Polyethylene)

XLPE (Cross-Linked Polyethylene)

CONCENTRIC CONDUCTOR

Single Layer of Plain Copper Wires

-

Single Layer of Plain Copper Wires

-

Single Layer of Plain Copper Wires

-

NEUTRAL CONDUCTOR

-

Plain Copper Wires covered by a Polymeric Compound

-

Plain Copper Wires covered by a Polymeric Compound

-

Plain Copper Wires covered by a Polymeric Compound

EARTH CONTINUITY CONDUCTOR

-

Plain Copper wires

-

Plain Copper Wires

-

Plain Copper Wires

STRING SEPARATOR

-

Non-Hygroscopic

-

Non-Hygroscopic

-

Non-Hygroscopic

OUTER SHEATH

PVC (Polyvinyl Chloride)

LSZH (Low Smoke Zero Halogen)

PVC (Polyvinyl Chloride)

LSZH (Low Smoke Zero Halogen)

PVC (Polyvinyl Chloride)



Concentric & Split Concentric Cable Types

Aluminium Concentric BS 7870 PVC Cable
Copper LSZH Split Concentric BS7870
Aluminium Concentric BS 7870 LSZH Cable
Aluminium Split Concentric BS 7870 PVC Cable
Aluminium Split Concentric BS 7870 LSZH Cable
Copper Concentric BS 7870 PVC Cable
Copper Split Concentric BS 7870 PVC Cable

ASTM 600/1000V
Core AWG Structure Size (mm) Copper cable (kg/km)
Conductor Insulation Concentric conductor Outer sheath
Single wire XLPE Single wire UV-PVC
No. Dia. Thick No. Dia. Thick Dia.
1 16 7 0.49 1.14 39 0.321 1.14 6.82 81.46
1 10 7 0.98 1.14 34 0.511 1.14 8.67 172.04
1 8 7 1.23 1.14 25 0.643 1.14 9.68 221.58
1 6 7 1.55 1.14 25 0.813 1.14 10.98 160.50
1 4 7 1.96 1.14 27 1.020 1.14 12.62 509.26
IEC 60502-1 IEC 60228 600/1000v
Size (mm2) Structure Size mm Copper cable (kg/km)
Concuctor Insulation Concentric conductor Outer sheath
Single wire Dia. PVC Single wire UV-PVC
No. Dia. Thick No. Dia. Thick Dia. (kg/km)
10 7 1.35 4.05 1.55 20 0.85 1.4 11.79 301.55
16 7 1.7 5.1 1.55 32 0.85 1.4 12.84 431.7
25 7 2.14 6.42 1.6 29 1.13 1.5 15.02 647.46
Aluminum Cable
16 7 1.7 5.1 1.55 26 1.13 1.4 13.42 244.16
25 7 2.14 6.42 1.6 29 1.13 1.5 15.02 307.3
35 19 1.53 7.65 1.65 27 1.35 1.6 16.99 390.15

Package:
Package in plastic reel, paper reel ,wooden drum,steel wooden drum or as customer’s requirement.


How to Order dây Concentric Service Cable Price

Our team is committed to providing outstanding service before, during, and after the sale. To learn more about our products or to place an order, please contact your sales representative. Email us at info@uni-fibercable.com
