Azerbaijan Enquiry for SİP-3 Cable

SİP-3 Cable Description

Self-supporting wires SİP-3 1x95 mm², 35 kV (analogue SAX, PAS-W)

Self-supporting Insulated Conductor Technical Specification

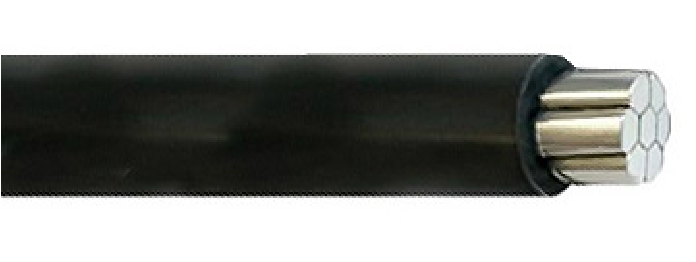

self-supporting insulated conductor (Type-3) 1x95 mm² (with additional 0x0), with steel-aluminum conductors, covered with light-stabilized cross-linked polyethylene insulation.
Nominal AC voltage: 20/35 kV
Outer diameter of SIP-3 1x95 conductor: 19 mm
Nominal frequency: 50 Hz
Electrical resistance of 1 km conductor to DC: 0.36 Ω/km
Active resistance of the conductor at 90°C at 50 Hz: 0.47 Ω/km
Maximum permissible current for 1-second short circuit: 8.2 kA
Minimum allowable bending radius during installation: 190 mm (10 times the cable diameter)
Operating temperature range: from -60°C to +50°C
Minimum installation temperature without preheating: -20°C
Climatic design: B, placement category 1, 2, and 3 according to GOST 15150-69.
Increased relative humidity of air up to 98% at +35°C does not affect the operational characteristics of the product.
The conductor is resistant to the action of sunlight.
During installation and mounting, the bending radius of the conductor must be greater than 10 times its outer diameter.
The cleanliness and quality of raw materials affect its mechanical parameters.
Mechanical characteristics:
Tensile strength: at least 14.2 kN.
Resistance to elongation: 20.6 kN.
Weight: (251 – 263) kg/km.
Outer diameter: (12.7 – 26.3) mm.
Bending radius: (127 – 263) mm.
Temperature limits:
Long-term allowable working temperature of the conductor: +90°C.
Temperature during an emergency or overload: +130°C.
Maximum temperature in short circuit (K.Z.): +250°C.
