Naming Rules for Optical Fiber Cables
Release time: 2023-04-17
Naming Rules for Optical Fiber Cables
Outside Plant Optical Fiber Cables' Naming Rules
Class Strength member Structural features Sheath Outer sheath Fibre type
GY-Outdoor (void)-metallic D-Fibre ribbon Y-PE Sheath 33-Steel wires armor+PE B1-G652
GL-Micro trench F-FRP G-Slotted core A-Aluminum Tape+PE 53-Steel tape armor+PE B1.3-G652D
GP-Sewer H-Aramid yarns X-Uni-tube S-Steel tape+PE 54-Steel tape armor+PE+nylon sheath B4-G655
  G-Glass fibre yarns T-Compound Filled W-Steel tape+PE+2Steel wires 63-Glass fibre yarn armor+PE B6-G657
  A-Aramid yarns (void)-Dry water blocking F-Glass fibre tape+PE 333-Double steel wire armor+PE B6a2-G657A2
    C-Self-supporting     A1a-50/125μm
    Z-Flame-retardant     A1b-62.5/125μm
    B-Flat shape
    8-Figure 8

Drop Optical Fiber Cables' Naming Rules
Class Strength member Structural features Sheath Fibre type
GJX-Indoor Wiring (void)-metallic D-Fibre ribbon H-LSZH B6-G657
GJYX-Outdoor Drop F-FRP C-Self-supporting   B6a2-G657A2

Indoor Optical Fiber Cables' Naming Rules
Class Application Scope Strength member Structural features Sheath Fibre type
GJ-Indoor B-Branch F-Non Metallic J-Tigh buffer H-LSZH B1.3-G652D
  P-Bundle   B-Flat shape V-PVC B4-G655
  D-Ribbon     U-PU B6-G657
          B6a2-G657A2

Recommendations for Conventional Optical Fiber Cables
Types of Conventional Optical Fiber Cables
Type FTTH Metropolitan Area Network
Access Network
Backbone Network
  Drop Distribution Feeder
  Duct Aerial S-S Duct Aerial S-S U-W Buried Aerial S-S U-W
ADSS-SJ
ADSS-DJ

GJXH
GJXFH
GJYXCH
GJYXFCH
GJXDH
GJXFDH
GJYXDCH
GJYXFDCH
GJYXFHA
GJYXFHS
GJYXFH53

GYTA
GYTS
GYFS
GYTY53
GYFY53
GYTS54
GYTA53
GYTS53
GYTA33/333
GYTS33/333
GYTA53+33/333

GYFTY
GYFTA(S)
GYFTY63
GYFY63
GYFTA53
GYXTY
GYFXTY
GYXTW
GYDTA
GYDXTW
GYTC8A(S)
GYFTC8A(S)
GYFC8Y
GYFC8Y53
GYXTC8A(S)

The Structure of Conventional Optical Fiber Cables
Dielectric Single Jacket ADSS
NO. NAME
ADSS-SJ-80 Single Jacket ADSS G.652D span 80m
ADSS-SJ-100 Single Jacket ADSS G.652D span 100m
ADSS-SJ-120 Single Jacket ADSS G.652D span 120m
ADSS-SJ-200 Single Jacket ADSS G.652D span 200m
ADSS-SJ-300 Single Jacket ADSS G.652D span 300m

Dielectric Double Jacket ADSS
NO. NAME
ADSS-DJ-150 Double Jacket ADSS G.652D span 150m
ADSS-DJ-200 Double Jacket ADSS G.652D span 200m
ADSS-DJ-300 Double Jacket ADSS G.652D span 300m
ADSS-DJ-500 Double Jacket ADSS G.652D span 500m
ADSS-DJ-800 Double Jacket ADSS G.652D span 800m

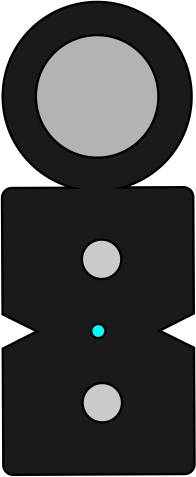

(Steel) Self-Supporting Drop Cable
NO. NAME
GJYXCH-1  GJYXCH-1 G657A  (Steel) Self-Supporting Drop cable
GJYXCH-2  GJYXCH-2 G657A  (Steel) Self-Supporting Drop cable
GJYXCH-4  GJYXCH-4 G657A  (Steel) Self-Supporting Drop cable



Self-Supporting GFRP Drop Cable
NO. NAME
GJYXFCH-1  GJYXFCH-1 G657A  (Steel) Self-Supporting GFRP Drop cable
GJYXFCH-2  GJYXFCH-2 G657A  (Steel) Self-Supporting GFRP Drop cable
GJYXFCH-4  GJYXFCH-4 G657A  (Steel) Self-Supporting GFRP Drop cable



(Steel) Drop Cable
NO. NAME
GJXH-1 GJXH-1 G657A (Steel) Drop Cable
GJXH-2 GJXH-2 G657A (Steel) Drop Cable
GJXH-4 GJXH-4 G657A (Steel) Drop Cable



Unitube Light-armored Cable
NO. NAME
GYXTW-4 Unitube Light-armored Cable GYXTW 4 cores G.652D
GYXTW-6 Unitube Light-armored Cable GYXTW 6 cores G.652D
GYXTW-8 Unitube Light-armored Cable GYXTW 8 cores G.652D
GYXTW-10 Unitube Light-armored Cable GYXTW 10 cores G.652D
GYXTW-12 Unitube Light-armored Cable GYXTW 12 cores G.652D

Double Sheathed Cable
NO. NAME
GYXTW53-4 Double Sheathed Cable GYXTW53 4 cores G.652D
GYXTW53-6 Double Sheathed Cable GYXTW53 6 cores G.652D
GYXTW53-8 Double Sheathed Cable GYXTW53 8 cores G.652D
GYXTW53-10 Double Sheathed Cable GYXTW53 10 cores G.652D
GYXTW53-12 Double Sheathed Cable GYXTW53 12 cores G.652D

Steel wires Armored Cable
NO. NAME
GYFXTY-4 Steel wires Armored GYXTW53 4 cores G.652D
GYFXTY-6 Steel wires Armored GYXTW53 6 cores G.652D
GYFXTY-8 Steel wires Armored GYXTW53 8 cores G.652D
GYFXTY-10 Steel wires Armored GYXTW53 10 cores G.652D
GYFXTY-12 Steel wires Armored GYXTW53 12 cores G.652D

Stranded Loose Tube Cable
NO. NAME
GYTA 2-48 Stranded Loose Tube Cable GYTA 2-48 cores G.652D
GYTA > 48 Stranded Loose Tube Cable GYTA > 48 cores G.652D
GYTS 2-48 Stranded Loose Tube Cable GYTS 2-48 cores G.652D
GYTS > 48 Stranded Loose Tube Cable GYTS > 48 cores G.652D
GYFTY 2-48 Stranded Loose Tube Cable GYFTY 2-48 cores G.652D
GYFTY > 48 Stranded Loose Tube Cable GYFTY > 48 cores G.652D

UG Double Sheathed Cable
NO. NAME
GYTA53 2-48 UG Double Sheathed Cable GYTA53 2-48 cores G.652D
GYTA53 > 48 UG Double Sheathed Cable GYTA53 > 48 cores G.652D
GYTS53 2-48 UG Double Sheathed Cable GYTS53 2-48 cores G.652D
GYTS53 > 48 UG Double Sheathed Cable GYTS53 > 48 cores G.652D



Figure 8 Cable
NO. NAME
GYXTC-8S Figure 8 Cable GYXTC-8S 2-6 cores G.652D
GYTC-8S Figure 8 Cable GYTC-8S G.652D
GYTC-8A Figure 8 Cable GYTC-8A G.652D
GYTS-8S Figure 8 Cable GYTS-8S G.652D
GYTA-8S Figure 8 Cable GYTA-8S G.652D


Color Arrangement Rules for Optical Fiber & Indoor Fiber Optic Cable
Color Arrangement of Fibres and Loose Tube
Standard Fibre Color Sequence, which complies with Standard TIA/EIA-598-2014.
Fibers Color Standard Sequence
No. 1 2 3 4 5 6
Color Blue Orange Green Brown Gray White(Natural)
No. 7 8 9 10 11 12
Color Red Black Yellow Violet Pink Aqua
Note:
1. If there are less than 12 fibers in a loose tube, the color sequence is followed continuously, starting from No.1,
2. In the standard color sequence, No.6 white color can be replaced by natural color, called the W color sequence.
3. Color arrangement can be customized.
Tubes Color Standard Sequence
No. 1 2 3 4 5 6
Color Blue Orange Green Brown Gray White(Natural)
No. 7 8 9 10 11 12
Color Red Black Yellow Violet Pink Aqua

Tigh Buffer Fibers Color Standard Sequence
No. 1 2 3 4 5 6
Color Blue Orange Green Brown Gray White(Natural)
No. 7 8 9 10 11 12
Color Red Black Yellow Violet Pink Aqua

Indoor Fiber Optic Cable Color Standard Sequence
Colors of Cable Sheaths comply with YD/T1258
Default color for single-mode fibre: Yellow; Default color for multimodefibre:  Orange

Note: Color arrangement can be customized.

The properties of single mode optical fiber
(ITU-T Rec. G652|G657)
Category Description   G.652.D
Normal
G.652.D
Best
G.657.A1 G.657.A2 Unit/单位
Unidade
Transmission
Characteristics
传输特性
Características de transmissão
850nm (multimode optical fiber communication system)
O:1260-1360(237.9-220.4THZ)
E: 1360-1460 (the least commonly used, the attenuation is large)
     (220.4-205.3) frequency range
S:1460-1530 (commonly used in PON system)
    (205.3-195.9)
C: 1530-1565 (minimum attenuation)
      (195.9-191.6)
L: 1565-1625 (2nd lowest attenuation)
      (191.6-184.5)
U: 1625-1675 (mainly used for network monitoring)
       (184.5-179.0)
Attenuation Coefficient
@1310 nm ≤0.35 ≤0.34 ≤0.34 ≤0.34 dB/km
@1285-1330 nm   ≤0.37 ≤0.37 ≤0.37 dB/km
@1383 nm(after hydrogen aging)氢老化后 (水峰衰减) ≤0.30 ≤0.30 ≤0.31 ≤0.31 dB/km
@1460 nm
@1490 nm ≤0.24   ≤0.23 ≤0.23 dB/km
@1550 nm ≤0.22 ≤0.21 ≤0.2 ≤0.2 dB/km
@1525-1575 nm   ≤0.22 ≤0.21 ≤0.21 dB/km
@1625 nm ≤0.25 ≤0.24 ≤0.22 ≤0.22 dB/km
Mode Field Diameter
模场直径
@1310 nm 8.6±0.4 9.0±0.4 9.0±0.3 8.6±0.4 µm
@1550 nm 9.8±0.5 10.2±0.4 10.2±0.4 9.6±0.5 µm
Cable Cut-off wavelength(λ cc)
光缆截止波长
  ≤1260 ≤1260 ≤1260 ≤1260 nm
Zero Dispersion Wavelength
零色散波长
  1300-1324 1300-1324 1300-1324 1300-1324 nm
Zero Dispersion Slope
零色散斜率
  ≤0.092 ≤0.092 ≤0.09 ≤0.09 ps/nm²/km
Dispersion Coefficient
色散系数
@1285-1339 nm   ≤3.4 ≤3 ≤3.4 ps/(nm·km)
@1271-1360 nm   ≤5.3     ps/(nm·km)
1525-1575nm
1530-1565nm
1565-1625nm
@1550 nm ≤ 18 ≤ 18 ≤ 17 ≤ 18 ps/(nm·km)
@1625 nm ≤ 22 ≤ 22 ≤ 21 ≤ 22 ps/(nm·km)
PMD Maximum Individual Fiber
偏正模色散单根光纤
  ≤0.1 ≤0.1 ≤0.1 ≤0.1 ps√km
PMD Link Design Value
偏正模色散链路设计值
  ≤0.06 ≤0.06 ≤0.06 ≤0.06 ps/√km
Point Discontinuity
点不连续性
@1310 nm, @1550 nm ≤0.05 ≤0.05 ≤0.05 ≤0.05 dB
EGRI
Effective Group Refractive Index
有效群折射率
@1310 nm   1.4671 1.4671 1.4676
@1550 nm   1.4675 1.4675 1.4683
@1625 nm   1.468 1.468 1.4685
Macro Bending Loss
宏观弯曲损耗
A1  弯曲半径10mm
A2 弯曲半径7.5mm
B2   弯曲半径7.5mm
B3    弯曲半径5mm
10turns of 15mm radius     ≤0.25 ≤0.03 @1550 nm
dB
100turns of 25mm radius
1turns of 16mm radius     ≤0.25 ≤0.03
1turns of 10mm radius     ≤0.75 ≤0.1
1turns of 7.5mm radius       ≤0.2
1turns of 5mm radius
100turns of 30mm radius ≤0.05 ≤0.05     @1625 nm
dB
100turns of 25mm radius
10turns of 15mm radius     ≤1.0 ≤0.1
1turns of 10mm radius     ≤1.5 ≤0.2
1turns of 7.5mm radius       ≤0.5
1turns of 5mm radius
Category Description   G.652.D
常规
G.652.D
品牌1
G.657.A1 G.657.A2 Unit/单位
Unidade
Dimensions
几何参数
Dimensões
Cladding Diameter
包层直径
  125±0.7 125±0.5 125±0.5 125±0.5 µm
Core / Cladding Concentricity Error
芯/包层同心度误差
  ≤0.5 ≤0.4 ≤0.4 ≤0.4 µm
Cladding Non-circularity
包层不圆度百分比
  ≤1.0 ≤0.7 ≤0.7 ≤0.7 %
Coating Diameter
涂覆层直径
  245±5 245±5 242±5 242±5 µm
Coating / Cladding Concentricity Error涂覆层/包层同心度误差   ≤12 ≤12 ≤8 ≤8 µm
Mechanical Characteristics
机械性能
Características mecânicas
Proof Test
张力筛选试验
Fiber Strain
纤维应变
≥1 ≥1 ≥1 ≥1 %
Fiber Load
光纤负载
≥9 ≥9 ≥9 ≥9 N
Stress
压强
≥100 ≥100 ≥100 ≥100 kpsi
Dynamic Stress Corrosion Susceptibility Factor
动态疲劳参数
Unaged &Aged(30 days@85℃,85%R.H.) ≥20 ≥20 ≥20 ≥20
Coating Strip Force
涂层剥离力
Peak Value
峰值
1.3-8.9 1.3-8.9 1.3-8.9 1.3-8.9 N
Fiber Curl
光纤翘曲半径
  ≥4 ≥4 ≥4 ≥4 m
Environmental Characteristics
环境性能
Características ambientais
Dry heat aging干热(30days@85℃) @1310 nm, @1550 nm ≤0.05 ≤0.05 ≤0.05 ≤0.05 dB/km
Accelerated ageing 湿热(30days@85℃,85%R.H.) @1310 nm, @1550 nm ≤0.05 ≤0.05 ≤0.05 ≤0.05 dB/km
Temperature Cycling温度循环
(-60℃- +85℃)
@1310 nm, @1550 nm ≤0.05 ≤0.05 ≤0.05 ≤0.05 dB/km
Water Soak浸水(30days@23℃) @1310 nm, @1550 nm ≤0.05 ≤0.05 ≤0.05 ≤0.05 dB/km
