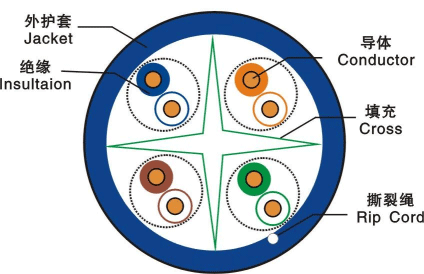

CAT 6 UTP CABLE
CAT 6 FTP CABLE
CAT 6 SF/UTP CABLE
 |
 |
| ltem | Indoor U/UTP Cat6 Cable 305m |
| Type | CAT6 |
| U/UTP | U/UTP |
| Conductor | Bare Copper,24 AWG / 23 AWG |
| Number Of Conductor | 4 Pairs |
| Conductor diameter | 1/0.50mm,1/0.52mm,1/0.53mm,1/0.54mm,1/0.55mm,1/0.56mm,1/0.57mm |
| Insulation | HDPE |
| Filler | PE Cross or FM-PE Thin slice |
| Jacket | PvC,LSZH,PE(outdoor), PVC+PE double sheath |
| Flame Retardant | CM,CMX,CMR,CMP,Fca,Eca,Dca,Cca,B2ca |
| Color | As client's request |
| Length | 305m/100Oft per pull box |
| Packing | Pull box，2 boxes /carton |
| Test | 100% Passed the FLUKE 9OM link and 10OM channel test |
| Reference Standard | YD/T1019-2001, lSO/EC 11801,ANSITIA/EIA-568B,UL444 |
| certificates | CE, RoHS，IsO9001 |
| Customizing | Color of PVC jacket, marking words on cable & customized packaging |

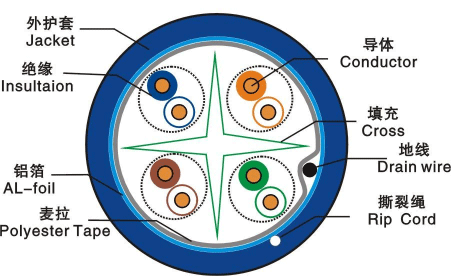

CAT 6 FTP CABLE
 |
 |
| ltem | Indoor F/UTP Cat6 Cable 305m |
| Type | CAT6 |
| shielding structure | FIUTP |
| conductor | Bare Copper,23 AWG |
| Number Of Conductor | 4 Pairs |
| Conductor diameter | 1/0.53mm,1/0.54mm,110.55mm,110.56mm,1/0.57mm,1/0.58mm |
| Insulation | HDPE |
| shield | Mylar +AL-foil |
| Drain wire | 0.4mm , TC,CCA,TCCS |
| Jacket | PVC,LSZH,PE(outdoor), PVC+PE double sheath |
| Flame Retardant | CM,CMX,CMR,CMP,Fca,Eca,Dca,Cca,B2ca |
| color | As clients request |
| Length | 305m(1000ft )/Drum |
| Packing | Wooden spool(wooden drum) |
| Test | 100% Passed the FLUKE 90M link and 100M channel test |
| Reference Standard | YD/T1019-2001,ISO/EC 11801,ANSITIA/EIA-568B,UL444 |
| Certificates | CE, RoHS, ISO9001 |
| customizing | Color of PVC jacket, marking words on cable & customized packaging |
CAT 6 SF/UTP CABLE
 |
|
| ltem | Indoor SF/UTP Cat6 Cable 305m |
| Type | CAT6 |
| Shielding structure | SFIUTP |
| conductor | Bare Copper,23 AWG |
| Number Of Conductor | 4 Pairs |
| Conductor diameter | 1/0.53mm,1/0.54mm,110.55mm, 1/0.56mm,1/0.57mm,1/0.58mm |
| Insulation | HDPE |
| shield | Mylar +AL-foil |
| Braiding | 64、80 or 96*0.12mm ALM，0.1mmTC |
| Drain wire | o.4mm ,Tc,CCA,TCCS |
| Jacket | PvC,LSZH,PE(outdoor),PVC+PE double sheath |
| Flame Retardant | CM,CMX,CMR,CMP,Fca,Eca,Dca,Cca,B2ca |
| color | As clients request |
| Length | 305m(100Oft )/Drum |
| Packing | Wooden spool(wooden drum) |
| Test | 100%Passed the FLUKE 90M link and 10OM channel test |
| Reference Standard | YD/T1019-2001,ISO/IEC11801,ANSI/TIA/EIA-568B,UL444 |
| certificates | CE, RoHS, ISO9001 |
| customizing | Color of PVC jacket, marking words on cable & customized packaging |
