Indoor Cable Riser or Plenum Rated
Indoor tight buffered cables assure reliable broadband performance, meet flame retardant safety codes, and support easy field termination.
This
optical fiber cable family packages 900μm tight buffered fibers into a single flame retardant cable. This cable design is available in both riser rated and plenum rated versions for deployment in
any indoor application.
The tight buffered distribution cable supports standard installation practices and may be easily terminated using established field connectorization methods.
900μm tight buffered fibers are designed to support rapid field termination
- • Industry standard color coding provides quick, error-free fiber identification
- • Single-Unit designs provide space savings and cost advantages
- • Subunit construction improves organization and termination practices
- • Available with bend-insensitive singlemode and multimode optical fibers
- • Flexible, flame-retardant, and color coded outer jacket
- • Supports all high performance networks including OM4/10 Gigabit Ethernet systems
Fibre Optic Cable Specifications
Applications: Versatile Indoor Flame-Rated Cable provides unsurpassed performance for intrabuilding applications that require crossing floors in multi-level buildings or placement in air handling spaces
Constructions: Single-Unit (≤ 24f); Subunits (≥ 18f); Interlock Armor optional
Flame Ratings: Riser (OFNR / OFCR / FT4); Plenum (OFNP / OFCP / FT6)
Standards: ANSI/ICEA S-83-596, UL- 1666, NFPA 262, CSA 22.2 No 230, Telcordia GR-409, RoHS Compliant
Temperatures: Shipping and Storage - Riser/Plenum: -40 °F to +176 °F (-40 °C to +80 °C)
Installation - Riser: +14 °F to +140 °F (- 10 °C to +60 °C), Plenum: +32 °F to +140 °F (0 °C to +60 °C)
Operation - Riser: -4 °F to +176 °F (-20 °C to +80 °C), Plenum: +32 °F to +176 °F (0 °C to +80 °C)

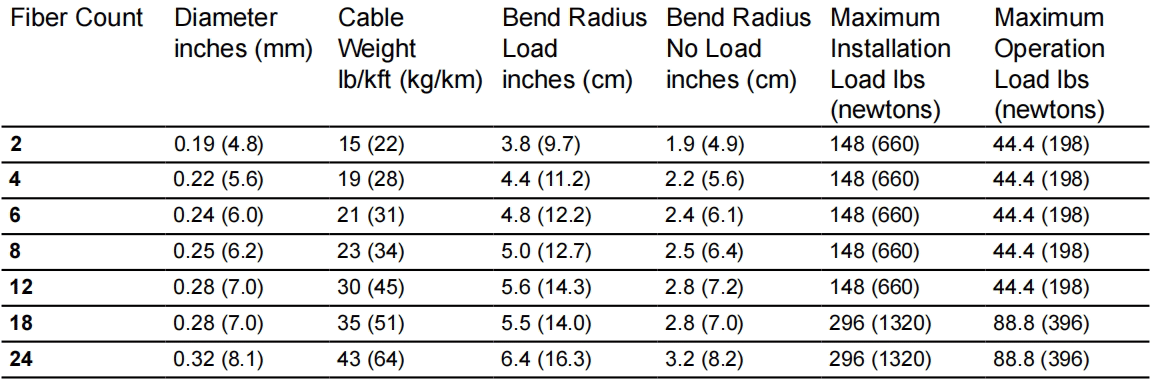

Indoor Cable Riser Specifications

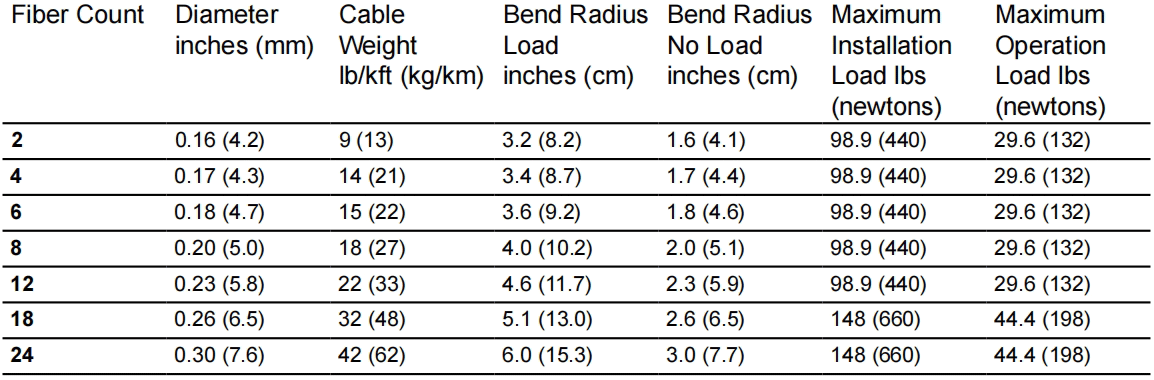

Indoor Plenum Specifications
