Photovoltaic PV H1Z2Z2-K Solar Cable for Afghanistan 40MW Photovoltaic Power Station
Release time: 2024-06-28

Photovoltaic PV H1Z2Z2-K Solar Cable for Afghanistan 40MW Photovoltaic Power Station

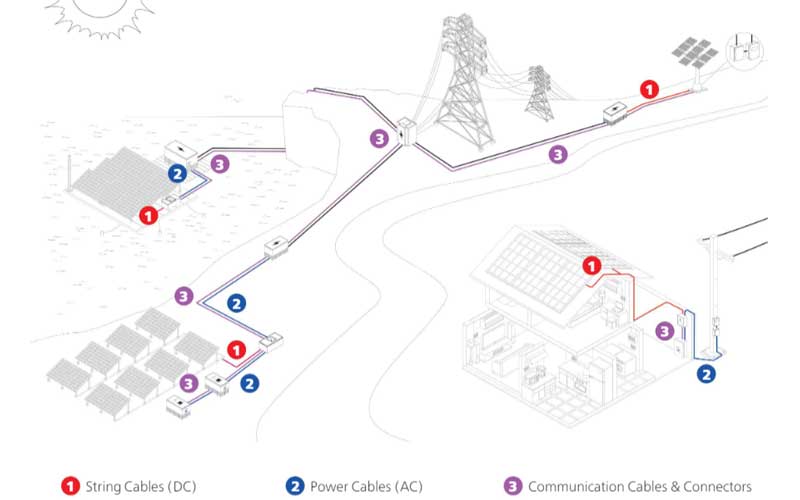

Photovoltaic Solar H1Z2Z2-K Cable Application

Our updated harmonised (H1Z2Z2-K) European standard solar cable intended for the interconnection within photovoltaic systems such as solar panel arrays. Suitable for fixed installations, internal and external, within conduit or systems. Impact tested - Suitable for direct burial. For installations where fire, smoke emissions and toxic fumes create a potential risk to life and equipment. Water resistant to AD8. They are manufactured in accordance with European Standard EN 50618 and with the harmonised designation H1Z2Z2-K. TUV approved, this standard supersedes the previous TÜV approved PV1-F cable.
As with the TÜV PV1-F cable, the EN50618 cable benefits from a double-insulation offering increased safety. The Low Smoke Zero Halogen (LSZH) insulation and sheathing makes them suitable for use in environments where corrosive smoke would present a risk to human life in the event of fire.

H1Z2Z2-K Cable Standards

  1. EN 50618, TÜV 2 PfG 1169/08.2007, EN 50288-3-7,
  2. EN 60068-2-78, EN 50395
  3. Flame retardant to IEC/EN 60332-1-2
  4. Low Smoke Zero Halogen to IEC/EN 60754-1/2,
  5. IEC/EN 61034-1/2, EN 50267-2-2
  6. Ozone and UV Resistant to EN 60811-403, EN 50396,
  7. EN ISO 4892-1/3,
  8. Water Resistant to AD8

PV Solar Cable Characteristics

  • Voltage Rating Uo/U: AC: 1000/1000V DC: 1500/1500V
  • Maximum Voltage (Umax): 1800V
  • Test Voltage: 6.5kV AC
  • Temperature Rating: Fixed: -40°C to +90°C
  • Minimum Bending Radius: 5 x overall diameter
  • Maximum Conductor Temperature: +120°C (for 20000h)

NO.OF
CORES
NOMINAL CROSs
SECTIONALAREA
mm²
NOMINAL OVERALL
DIAMETER
mm
NOMINAL
WEIGHT
kg/km
TENSILE STRENGTH
IN OPERATION
N
1 1.5 4.6 36 22
1 2.5 5 46 37
1 4 5.6 62 60
1 6 6.1 82 90
1 10 7.1 125 150
1 16 8.5 190 240
1 06
20
10.4 285 375
1 35 11.5 385 525
1 50 13.7 540 750
1 70 15.8 740 1050
1 95 17.3 965 1350
1 120 19.1 1210 1800
1 150 21.4 1495 2250
1 185 24.9 1885 2775
1 240 27.3 2395 3600

How to Order Solar Aluminium Cable and Accessories Price

Our team is committed to providing outstanding service before, during, and after the sale. To learn more about our products or to place an order, please contact your sales representative. Email us at info@uni-fibercable.com
