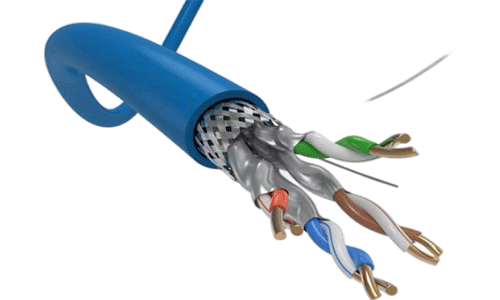

CAT 7 S/FTP CABLE
![]() |
![]() |
| ltem | S/FTP Cat7 Cable 305m |
| Type | CAT7 |

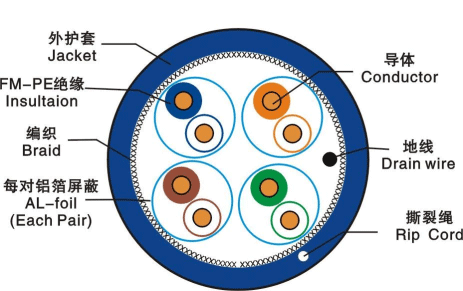

| shielding structure | S/FTP |
| Conductor | Bare Copper,23 AWG |
| Number Of Conductor | 4 Pairs |
| Conductor diameter | 1/0.56mm,1/0.57mm,1/0.58mm |
| Insulation | Foam PE |
| Pair Shield | 65U AL Foil for each pair |
| Braiding | 96*0.12mm ALM,0.1mm TC |
| Drain wire | 0.4mm ,TC,CCA,TCCS |
| Jacket | PVC,LSZH,PE(outdoor), PVC+PE double sheath |
| Flame Ratardancy | CM,CMX,CMR,CMP,Fca,Eca,Dca,Cca,B2ca |
| Color | As client's request |
| Length | 305m(1000ft)/Drum, 500m/Drum |
| Packing | Wooden spool(wooden drum) |
| Test | 100%Passed the FLUKE 9OM link and 10OM channel test |
| Reference standard | YD/T1019-2001,ISO7 IEC11801;ANSI/TIA/ELA-568B |
| Certificates | CE, RoHS, ISO9001 |
| Customizing | Color of PVC jacket,marking words on cable & customized packaging |
