PKP MULTITUBE LOOSE TUBE CABLE
Cable ADSS PKP Description
A reliable optical link cable for aerial applications. Double sheathed cable for a fully outdoor environment. It is an

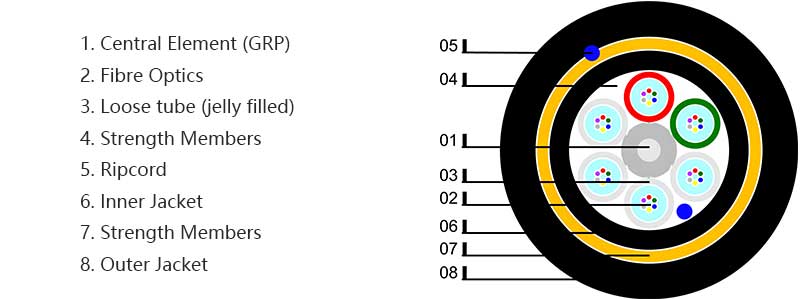

ADSS cable for duct or aerial mounting with a maximum span of 60 m. Fully dielectric and multi-tube this cable has an two MDPE jackets, one innner and the other external. Each loose tube contains 8 optical fibres and an anti-moisture compound. The cable is protected by an water blocking tape and aramid threads.
Gel filled multi loose tube cable of double jacket for outdoor installation. The double jacket construction adds a layer of protection for harsh environments. Strength members composed of aramid yarns. Polyethylene outer sheath. Available up to 216 fibres.
Cable ADSS PKP Applications
Exterior
Cable ADSS PKP Benefits
• Savings in cable installation time and costs
• ADSS
• Easy stripping
• Available in single mode
• Ideal for aerial installation
• Double sheath
• Loose tubes protected with an water blocking filling compound
• Easy access to the cable fibres
• Easy stripping
Cable ADSS PKP Standards
• IEC 60794-1-2
• ITU-T G.652D
| Fibers |
Buffer (μm) |
Attenuation (dB/Km) |
| MM |
SM |
| 850nm |
1300nm |
1310nm |
1550nm |
| G652.D |
250 |
— |
— |
≤0.40 |
≤0.30 |
| Fiber |
Fiber count |
Fibers per tube |
Outside diameter [mm] |
Weight [Kg/Km] |
Tensile [N] |
| SM G652.D |
8 |
8 |
11.8 |
105 |
1800 |
| 16 |
8 |
11.8 |
105 |
1800 |
| 24 |
8 |
11.8 |
105 |
1800 |
| 32 |
8 |
11.8 |
105 |
1800 |
