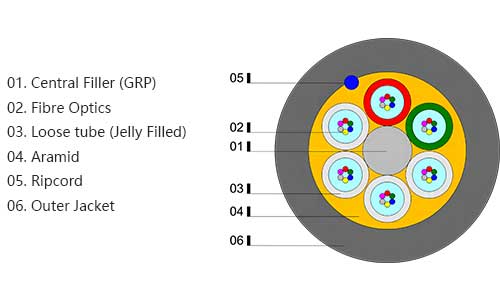

Single Jacket | ADSS-U AERIAL LOOSE TUBE CABLE Description All dielectric self supported cable (ADSS). Gel filled multi loose tube cable of single jacket for aerial outdoor installation. Strength members composed of fibreglass yarns. Span length up to 150 m . Polyethylene outer sheath. Available up to 144 fibres. Applications Exterior Aerial Installation |
|
FIG8 AERIAL SELF-SUPPORTED FIGURE 8 CABLE Description Gel filled multi loose tube cable in Figure 8 for aerial outdoor installation. Metallic messenger as strength member. Span length up to 80 m. Polyethylene outer sheath. Available up to 24 fibres. Applications Exterior Aerial Installation |
||

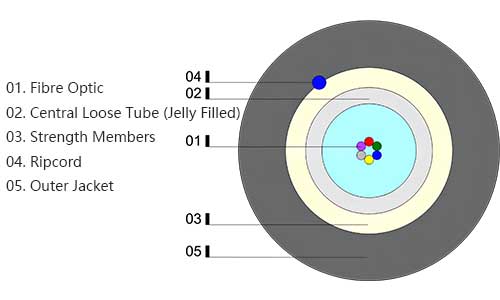

TENAX-DP DIELECTRIC UNITUBE CABLE Description Gel filled single loose tube cable with dielectric armour for outdoor installation. Strength members composed of fibreglass yarns. The fibreglass yarns provide a repellent for small rodents (light resistance for TENAX 1500 and medium resistance for TENAX 3000). High tensile strength. Polyethylene outer sheath. Suitable for aerial installation in short spans. Available up to 24 fibres. Applications Exterior Rodent protected Suitable for "blown air" system Aerial Installation |
||

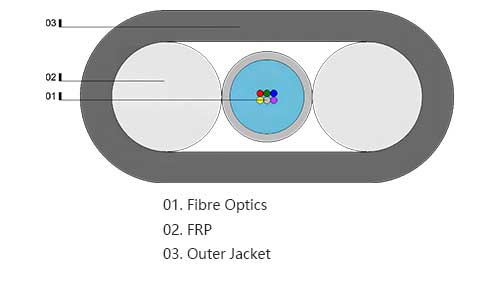

ADSS FLAT / F2 FLAT DROP ADSS CABLE Description All dielectric self supported cable (ADSS). Gel filled loose tube cable. Single jacket for aerial outdoor installation. Two FRP strength members. Span length up to 80m . Polyethylene outer sheath. Available up to 12 fibres. Applications Exterior Aerial Installation FTTx Drop Cable |
||

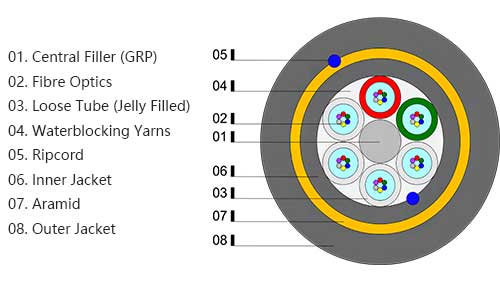

Double Jacket | ADSS AERIAL LOOSE TUBE CABLE Description All dielectric self supported cable (ADSS). Gel filled multi loose tube cable of double jacket for aerial outdoor installation. The double jacket construction adds bigger mechanical resistance. Strength members composed of aramid yarns. Span length up to 400 m. Polyethylene outer sheath. Available up to 144 fibres. Applications Exterior Aerial Installation |
