CCST AAAC 12/20 (24) kV

CCST is a round-wire, non-compacted, thermoplastic covered conductor. The All Aluminum Alloy Conductor, AAAC is longitudinally water blocked. All three layers are extruded in the same process. The UV-protected HDPE-jacket is both abrasion
and tracking resistant.

Conductor – AAAC
Extruded, longitudinal waterblocking layer
Extruded, inner semiconductive layer
Insulation of PE
Outer layer of UV-resistant HDPE

Minimum bending radius: 15 x diameter.
Lowest temperature for installation: -15°C.
Maximum continuous temperature: +70°C.

CCST AAAC 50mm2, 20(24)kV Standard

Conductor EN 50397-1

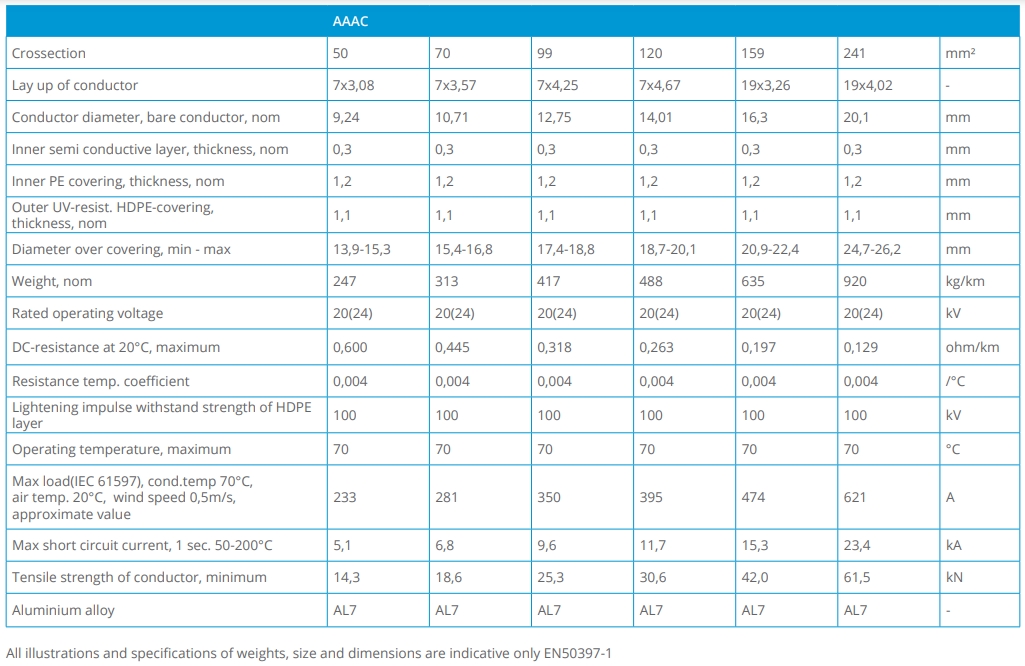

Semi-insulated conductor CCST 50 AAAC 20(24)kV W Table: Technical data

Number	Description of technical requirement	Unit of measure	Wanted
1	Manufacturer's name	-	Uni Industry Group Co., Ltd.
2	Manufacturer's address	-
3	The standard according to which the conductor was manufactured and tested	-	EN50397-1 2020 or equivalent
4	Conductor marking	-	YY/MM Manufacturer CCST 50 AAAC W 20/24 kV EN50397-1  or equivalent
5	Conductor material	-	AlMgSi - AL7 or AL3
6	Rated voltage	kV	20kV
7	Maximum voltage	kV	24kV
8	Nominal conductor cross-section	mm²	50
9	Actual conductor cross-section	mm²	≥ 50
10	Nominal wire diameter	mm	≥ 3.00
11	Conductor diameter	mm	≥ 8,5
12	Number of wires in the conductor	-	1+6
13	Conductor weight	kg/km	≤ 143
14	Conductor mass with insulation	kg/km	≤ 247
15	Maximum DC conductor resistance at 20 °C	Ω/km	≤ 0.644
16	Permissible current load at: 1) conductor temperature 70 ˚C, ambient temperature 20 ˚C, wind speed 0.5 m/s, solar radiation 1000 W/m2   2) conductor temperature 70 ˚C, ambient temperature 40 ˚C, wind speed 0.5 m/s, solar radiation 1000 W/m2   3) conductor temperature 70 ˚C, ambient temperature 20 ˚C, wind speed 0.0 m/s, solar radiation 1000 W/m2   4) conductor temperature 70 ˚C, ambient temperature 40 ˚C, wind speed 0.0 m/s, solar radiation 1000 W/m2   Only approximate values according to IEC61597	A   A     A     A	≥ 205   ≥ 142     ≥ 119     ≥ 59
17	Maximum operating temperature	˚C	Permanent 70 ˚C Short-term +130 ˚C
18	Maximum permissible short circuit current 1s	kA	≥ 3.6
19	Tensile strength of conductor	kN	≥ 14.3
20	Elastic modulus	kN/mm² (GPa)	Initial: 65 GPa After permanent load: 67 GPa
21	Coefficient of linear expansion	K-1	2.30E-05
22	Nominal insulation thickness	mm	≥ 2.3
23	Nominal thickness of the first layer	mm	≥ 1.2
24	Nominal thickness of the second layer (outer sheath)	mm	≥ 1.1
