CAT 6A U/UTP CABLE
CAT 6A F/UTP CABLE
CAT 6A SF/UTP CABLE
CAT 6A U/FTP CABLE
CAT 6A F/FTP CABLE
CAT 6A S/FTP CABLE
 |
 |

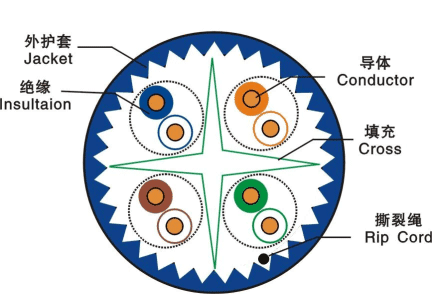

| ltem | U/UTP Cat6A Cable 305m |
| Type | CAT6A |
| shielding structure | U/UTP |
| Conductor | Bare Copper,24 AWG / 23 AWG |
| Number Of Conductor | 4 Pairs |
| conductor diameter | 1/0.53mm,1/0.54mm,1/0.55mm,1/0.56mm,1/0.57mm |
| Insulation | HDPE |
| Filler | PE Cross or FM-PE Thin slice |
| Jacket | PvC,LSZH,PE(outdoor),PVC+PE double sheath |
| Flame Retardant | CM,CMX,CMR,CMP,Fca,Eca,Dca,Cca,B2ca |
| Color | As client's request |
| Length | 305m/1000ft per pull box |
| Packing | Pull box，2 boxes /carton |
| Test | 100% Passed the FLUKE 90M link and 10OM channel test |
| Reference Standard | YD/T1019-2001,ISO/IEC 11801,ANSITIA/EIA-568B,UL444 |
| Certificates | CE, RoHS, ISO9001 |
| Customizing | Color of PVC jacket, marking words on cable & customized packaging |

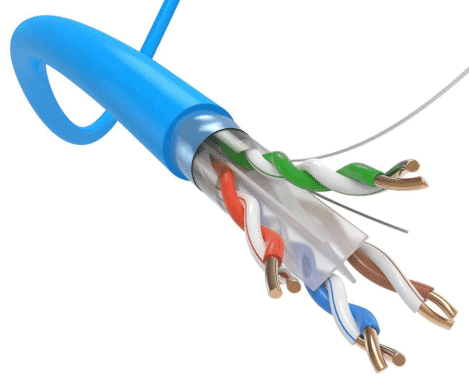

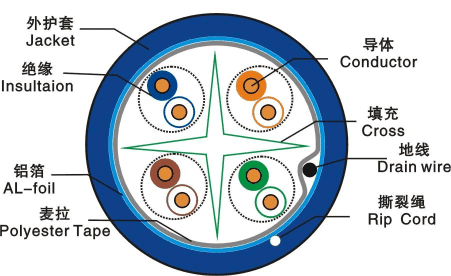

CAT 6A F/UTP CABLE
 |
 |
ltem |
F/UTP Cat6A Cable 305m |
| Type | CAT6A |
| shielding structure | FIUTP |
| Conductor | Bare Copper,23 AWG |
| Number Of Conductor| | 4 Pairs |
| Conductor diameter | 1/0.54mm,1/0.55mm,1/0.56mm,1/0.57mm,1/0.58mm |
| Insulation | HDPE |
| Shield | Mylar +AL-foil |
| Drain wire | 0.4mm ,TC,CCA,TCCS |
| Jacket | PVC, LSZH,PE(outdoor),PVC+PE double sheath |
| Flame Retardant | CM,CMX,CMR,CMP,Fca,Eca,Dca,Cca,B2ca |
| color | As client's request |
| Length | 305m(1000ft )/Drum |
| Packing | Wooden spool(wooden drum) |
| Test | 100%Passed the FLUKE 90M link and 10OM channel test |
| Reference Standard | YD/T1019-2001,ISO/EC11801,ANSI/TIA/EIA-568B,UL444 |
| Certificates | CE, RoHS, ISO9001 |
| customizing | Color of PVC jacket, marking words on cable & customized packaging |

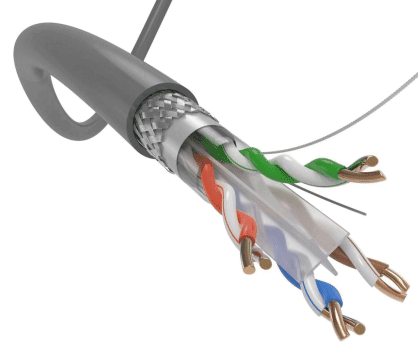

CAT 6A SF/UTP CABLE
 |
 |
| ltem | SF/UTP Cat6A Cable 305m |
| Type | CAT6A |
| shielding structure | SFIUTP |
| Conductor | Bare Copper,23AWG |
| Number Of Conductor | 4 Pairs |
| Conductor diameter | 1/0.54mm,1/0.55mm,1/0.56mm,1/0.57mm,1/0.58mm |
| Insulation | HDPE |
| shield | Mylar+AL-foil |
| Braiding | 64、80 or 96*0.12mm ALM，0.1mm TC |
| Drain wire | 0.4mm ,TC,CCA,TCCS |
| Jacket | PvC,LSZH,PE(outdoor), PVC+PE double sheath |
| Flame Retardant | CM,CMX,CMR,CMP,Fca,Eca,Dca,Cca,B2ca |
| color | As client's request |
| Length | 305m(1000ft )Drum |
| Packing | Wooden spool(wooden drum) |
| Test | 100% Passed the FLUKE 90M link and 100M channel test |
| Reference Standard | YD/T1019-2001,ISO/EC 11801,ANSITIA/EIA-568B,UL444 |
| Certificates | CE, RoHS, ISO9001 |
| customizing | Color of PVC jacket, marking words on cable & customized packaging |

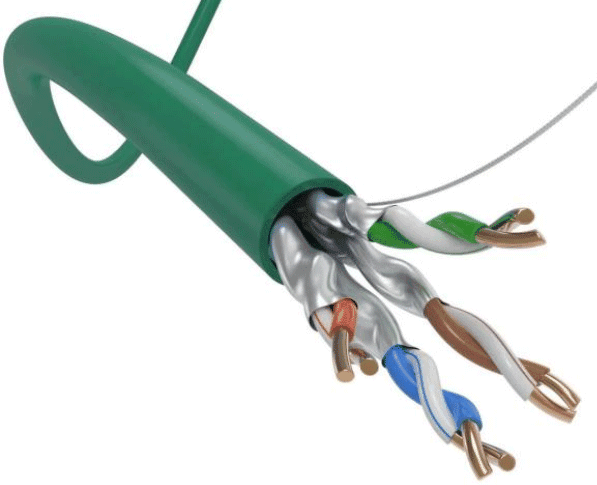

CAT 6A U/FTP CABLE
 |
 |
| ltem | U/FTP Cat6A Cable 305m |
| Type | CAT6A |
| Shielding structure | U/FTP |
| Conductor | Bare Copper,23AWG |
| Number Of Conductor | 4 Pairs |
| Conductor diameter | 1/0.55mm,1/10.56mm,1/0.57mm,1/0.58mm |
| Insulation | Foam PE |
| Pair Shield | 65U AL Foil for each pair |
| Drain wire | 0.4mm ,TC,CCA,TCCS |
| Jacket | PVC,LSZH,PE(outdoor),PVC+PE double sheath |
| Flame Retardant | CM,CMX,CMR,CMP,Fca,Eca,Dca,Cca,B2ca |
| color | As client's request |
| Length | 305m(1000ft )Drum, 50Om/Drum |
| Packing | Wooden spool(wooden drum) |
| Test | 100% Passed the FLUKE 90M link and 10OM channel test |
| Reference Standard | YD/T1019-2001;ISO7 IEC 11801﹔ANSI/TIA/EIA-568B |
| certificates | CE, RoHS, ISO9001 |
| customizing | Color of PVC jacket, marking words on cable & customized packaging |

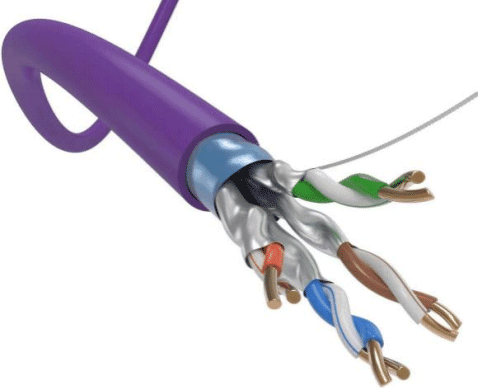

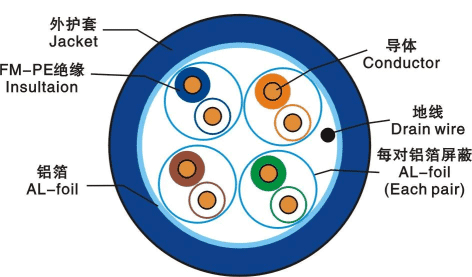

CAT 6A F/FTP CABLE
 |
 |
| Item | F/FTP Cat6A Cable 305m |
| Type | CAT6A |
| Shielding structure | F/FTP |
| conductor | Bare Copper,23AwG |
| Number Of Conductor | 4 Pairs |
| Conductor diameter | 1/0.55mm,1/0.56mm,1/0.57mm,1/0.58mm |
| Insulation | Foam PE |
| Pair Shield | 65U*12mm AL Foil for each pair |
| Main Shield | 65uU*23mm AL Foil for |
| Drain wire | o.4mm ,TC,CCA,TCCS |
| Jacket | PvC,LSZH,PE(outdoor), PVC+PE double sheath |
| Flame Ratardancy | CM,CMX,CMR,CMP,Fca,Eca,Dca,Cca,B2ca |
| color | As clients request |
| length | 305m(1000ft )/Drum, 50Om/Drum |
| Packing | Wooden spool(wooden drum) |
| Test | 100% Passed the FLUKE 90M link and 10OM channel test |
| Reference Standard | YD/T1019-2001;ISO/ IEC11801;ANSI/ TIA/EIA-568B |
| certificates | CE,RoHS, ISO9001 |
| customizing | Color of PVC jacket, marking words on cable & customized packaging |

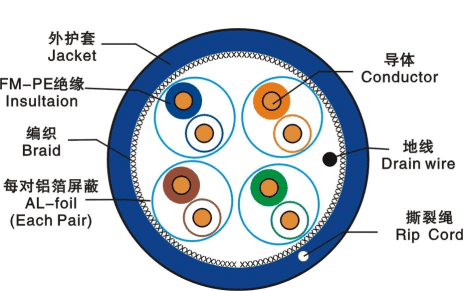

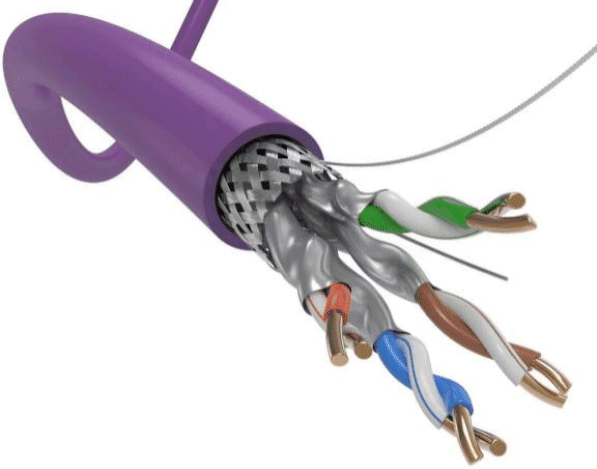

CAT 6A S/FTP CABLE
 |
 |
| Item | S/FTP Cat6A Cable 305m |
| Type | CAT6A |
| shielding structure | S/FTP |
| Conductor | Bare Copper,23 AWG |
| Number Of Conductor | 4 Pairs |
| Conductor diameter | 1/0.55mm,1/0.56mm,1/0.57mm,1/0.58mm |
| Insulation | Foam PE |
| Pair Shield | 65U AL Foil for each pair |
| Braiding | 96*0.12mm ALM，0.1mm TC |
| Drain wire | o.4mm ,TC,CCA,Tccs |
| Jacket | PVC,LSZH,PE(outdoor),PVC+PE double sheath |
| Flame Ratardancy | CM,CMX,CMR,CMP,Fca,Eca,Dca,Cca,B2ca |
| Color | As client's request |
| Length | 305m(1000ft yDrum,500m/Drum |
| Packing | Wooden spool(wooden drum) |
| Test | 100%Passed the FLUKE 90M link and 10OM channel test |
| Reference Standard | YD/T1019-2001;ISO/ IEC 11801，ANSI/TIA/EIA-568B |
| Certificates | CE, RoHS, ISO9001 |
| customizing | Color of PVC jacket, marking words on cable & customized packaging |
