3.6/6 kV 6/10 kV 8.7/15 kV 12/20 kV 18/30 kV Aluminium Medium Voltage Power Cables

3.6/6(7.2)kV; 6/10(12)kV; 8.7/15(17.5)kV; 12/20(24)kV; 18/30(36)kV Aluminium Medium Voltage Power Ca

MV Multicore ArmouredAluminium Cable; MV Single Core AluminiumArmoured Power Cable; MV XLPE Aluminium Double Armoured Cable

Medium Voltage Cable Standards

MV Cable Standard MV Standard Description
IEC 60502-2 Cables with extruded insulation with voltage rating between 6kV and 30kV
N2XSH / N2XS(F)H / N2XS(FL)H
NA2XSH / NA2XS(F)H / NA2XS(FL)H
Single core Copper (N) or Aluminium (NA) XLPE/LSZH cables in accordance with IEC60502-2 with optional single or dual waterblocking. Available as 3-core variants under references N2XSEH / NA2XSEH.
N2XS2Y / N2XS(F)2Y / N2XS(FL)2Y
NA2XS2Y / NA2XS(F)2Y / NA2XS(FL)2Y
Single core Copper (N) or Aluminium (NA) XLPE/MDPE cables in accordance with IEC60502-2 with optional single or dual waterblocking. Available as 3-core variants under references N2XSE2Y / NA2XSE2Y.
N2XSY
NA2XSY
Single core Copper (N) or Aluminium (NA) XLPE/PVC cables in accordance with IEC60502-2. Available as 3-core variants under references N2XSEY.
BS6622 Armoured cable with PVC outer sheathing and voltage rating from 3.3/6kV to 19/33kV - AWA single core, SWA multicore.
BS7835 Armoured cable with LSZH outer sheathing and voltage rating from 3.3/6kV to 19/33kV - AWA single core, SWA multicore.
BS7870-4.10 Single core cables for distribution utilities with extruded insulation up to and including 11kV and 33kV
HD620 Cables with extruded insulation and voltage ratings 3.6/6 (7.2)kV to 20.8/36 (42)kV (often seen in conjunction with IEC60502-2)
DIN VDE 0276 Part 620 Distribution cables of nominal voltages 3.6kV to 20.8/36kV

Whilst the German nomenclature for IEC60502-2 cables (eg: N2XSH) is widely used, there are other naming conventions also in use - Portuguese Medium Voltage cables include references LXHIOE and XHIOAV. Our team can support specification against all references, regardless of geography.

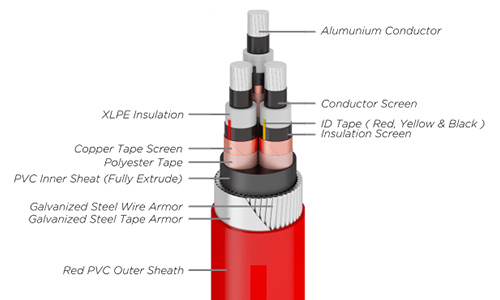

Medium Voltage Cable Construction

Construction will influenced by the installation environment but it will include the following:
MV Cable Layer MV Cable Materials
Conductor Copper or Aluminium - Class 1 solid, Class 2 stranded (circular, circular compacted, sectorial). Some flexible MV cables for dynamic equipment also available.
Optional: Conductor Waterblocking Swellable powders or swellable yarns in stranded interstices
Conductor Screen Semi-Conductive Layer
Insulation XLPE (Cross-linked Polyethylene) or EPR (Ethylene Propylene Rubber)
Insulation Screen Semi-Conductive Layer
Optional: Waterblocking - Longitudinal Swellable powders or tape
Metallic Screen Copper Wires and/or Copper Tape (around individual cores)
Optional: Waterblocking - Longitudinal Swellable Tape
Optional: Inner Sheath Applied where Armour is also applied. PVC or LSZH compound
Optional: Armour Single Core: Aluminium Wires / Tape Multi-Core: Galvanised Steel Wires / Tape (Wires can be circular or flat, tapes can be single or double layer flat or corrugated)
Optional: Waterblocking - Radial Aluminium/PET Tape with the aluminium side tightly bonded to outer sheath
Outer Sheath LDPE, MDPE (Low/Medium Density Polyethylene), PVC (Polyvinyl Chloride), LSZH (Low Smoke Zero Halogen). Additives to offer resistance to UV, oils & greases, water, flames, termites, and other environmental factors can be added as required.


Aluminium Medium Voltage Power Cables Types

  XLPE Insulation
PVC Sheath
XLPE Insulation
PE Sheath
Cross Section
Twisted Cables 2-4 cores NFA2XSY( Al / XLPE / CWS / PVC )
(Aluminium Conductor, XLPE Insulated, Copper Wire Screen, PVC Sheathed)
NFA2XS2Y( Al / XLPE / CWS / PE )
(Aluminium Conductor, XLPE Insulated, Copper Wire Screen, PE Sheathed)
up to 18/30 kV: 35-300
2-3 cores + steel messenger NFA2XSY-T ( Al / XLPE / CWS / PVC )
(Aluminium Conductor, XLPE Insulated, Copper Wire Screen, PVC Sheathed with Galvanized Steel Support Messenger)
NFA2XSY-T( Al / XLPE / CWS / PVC )
(Aluminium Conductor, XLPE Insulated, Copper Wire Screen, PVC Sheathed with Galvanized Steel Support Messenger)
up to 18/30 kV: (50-240)+95
Single Core + copper tape screen NA2XSY( Al / XLPE / CTS / PVC )
(Aluminium Conductor, XLPE Insulated, Copper Tape Screen, PVC Sheathed)
NA2XS2Y( Al / XLPE / CTS / PE )
(Aluminium Conductor, XLPE Insulated, Copper Tape Screen, PE Sheathed)
3.6/6 kV:25-800
6/10 kV: 25-800
8.7/15 kV: 25-800
12/20 kV: 35-800
18/30 kV: 50-800
+ copper wire screen NA2XCY( Al / XLPE / CWS / PVC )
(Aluminium Conductor, XLPE Insulated, Copper Wire Screen, PVC Sheathed)
NA2XC2Y(Al / XLPE / CWS / PE )
(Aluminium Conductor, XLPE Insulated, Copper Wire Screen, PE Sheathed)
3.6/6 kV:25-800
6/10 kV: 25-800
8.7/15 kV: 25-800
12/20 kV: 35-800
18/30 kV: 50-800
+ aluminium tape armor NA2XSB(AL)Y( Al / XLPE / CTS / PVC / ATA/ PVC )
(Aluminium Conductor, XLPE Insulated, Copper Tape Screen, Aluminium Tape Armor, PVC Sheathed)
NA2XSB(AL)2Y(Al / XLPE / CTS / PVC / ATA/ PE )
(Aluminium Conductor, XLPE Insulated, Copper Tape Screen, Aluminium Tape Armor, PE Sheathed)
3.6/6 kV:25-800
6/10 kV: 25-800
8.7/15 kV: 25-800
12/20 kV: 35-800
18/30 kV: 50-800
+ aluminium wire armor NA2XSR(AL)Y( Al / XLPE / CTS / PVC / AWA/ PVC )
(Aluminium Conductor, XLPE Insulated, Copper Tape Screen, Aluminium Wire Armor, PVC Sheathed)
NA2XSR(AL)2Y(Al / XLPE / CTS / PVC / AWA/ PE )
(Aluminium Conductor, XLPE Insulated, Copper Tape Screen, Aluminium Wire Armor, PE Sheathed)
3.6/6 kV:25-800
6/10 kV: 25-800
8.7/15 kV: 25-800
12/20 kV: 35-800
18/30 kV: 50-800
Three Cores with individual copper tape screen NA2XSEY( Al / XLPE / CTS / PVC )
(Aluminium Conductor, XLPE Insulated, Copper Tape Screen, PVC Sheathed)
NA2XSE2Y( Al / XLPE / CTS / PE )
(Aluminium Conductor, XLPE Insulated, Copper Tape Screen, PE Sheathed)

3.6/6 kV:25-300
6/10 kV: 25-300
8.7/15 kV: 25-300
12/20 kV: 35-300
18/30 kV: 50-300
+ steel round wire armor NA2XSERY( Al / XLPE / CTS / PVC / SWA/ PVC )
(Aluminium Conductor, XLPE Insulated, Copper Tape Screen, Galvanized Steel WireArmor, PVC Sheathed)
NA2XSER2Y( Al / XLPE / CTS / PVC / SWA/ PE )
(Aluminium Conductor, XLPE Insulated, Copper Tape Screen, Galvanized Steel WireArmor, PE Sheathed)
3.6/6 kV:25-300
6/10 kV: 25-300
8.7/15 kV: 25-300
12/20 kV: 35-300
18/30 kV: 50-300
+ steel flat wire armor NA2XSEFGbY( Al / XLPE / CTS / PVC / SFWA/ PVC )
(Aluminium Conductor, XLPE Insulated, Copper Tape Screen, Galvanized Steel Flat WireArmor, PVC Sheathed)
NA2XSEFGb2Y( Al / XLPE / CTS / PVC / SFWA/ PE )
(Aluminium Conductor, XLPE Insulated, Copper Tape Screen, Galvanized Steel Flat WireArmor, PE Sheathed)
3.6/6 kV:25-300
6/10 kV: 25-300
8.7/15 kV: 25-300
12/20 kV: 35-300
18/30 kV: 50-300
+ double steel tape armor NA2XSEBY( Al / XLPE / CTS / PVC / STA/ PVC )
(Aluminium Conductor, XLPE Insulated, Copper Tape Screen, Galvanized Steel TapeArmor, PVC Sheathed)
NA2XSEB2Y( Al / XLPE / CTS / PVC / STA/ PE )
(Aluminium Conductor, XLPE Insulated, Copper Tape Screen, Galvanized Steel TapeArmor, PE Sheathed)
3.6/6 kV:25-300
6/10 kV: 25-300
8.7/15 kV: 25-300
12/20 kV: 35-300
18/30 kV: 50-300
