GJXFHA Bow-type drop cable for duct FTTH Drop Fiber Optic Cables FRP Strength Member LSZH

GJXFHA Bow-type drop cable for duct FTTH Drop Fiber Optic Cables FRP Strength Member LSZH

Application: Used in aerial and duct access cabling; Installation in small bending environment; Suitable for the connection between indoor and outdoor
GJXFHA Bow-type drop cable for duct FTTH Drop Fiber Optic Cables FRP Strength Member LSZH
Description

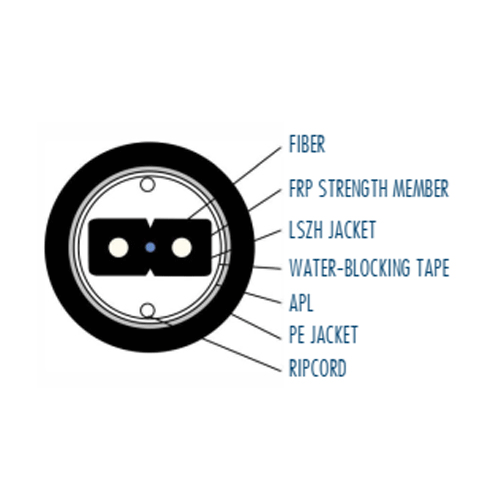

The fiber optic drop cable with a PE jacket consists of central fibers and two side parallel FRP strength members. They are then sheathed with a black LSZH jacket, coated with an APL waterproof coating, and finally sheathed with a PE or LSZH jacket to obtain an end drop cable.

Application
The fiber optic drop cable with a PE jacket is ideal for indoor installation and connection with end equipment. It can be used in FTTB, and indoors with FTTH. It can be also installed horizontally or vertically, as well as aerial installation. The fiber optic drop cable with a PE jacket can also be used as a pipe laying fiber optic cable.

Features
• Special Low-bend-sensitivity fiber provides high bandwidth and excellent communi- cation transmission property
• Two parallel FRP/strength members ensure good performance of crush resistance to protect the fiber
• Simple structure, light weight and high practicablity
• Novel flute design, easily strip and splice, simplify the installation and maintenance • Low smoke,zero halogen and flame retardant sheath
• APL moisture barrier,PSP enhancing moistrue-proof

Technical parameters
Cable Code Fiber count Cable size mm Cable weight kg/Km Tensile Strength Long/Short term N Crush Resistance Long/Short term N/1000mm Bending Radius Dyna mic / Static mm
GJYX(F)HA-1 1 Ø7.0 49 300/600 1000/2200 10D/20D
GJYX(F)HA-2 2 Ø7.0 49 300/600 1000/2200 10D/20D
GJYX(F)HA-4 4 Ø7.0 49 300/600 1000/2200 10D/20D
GJYX(F)HA-6 6 Ø7.0 49 300/600 1000/2200 10D/20D

Contact Us, Now.
24-hour service hotline
Contact online customer service
Add: Factory 1:No.33 Jinan City, Shandong Province,China
Factory 2: No. 28 Zhengzhou City, Henan Province,China
Related products

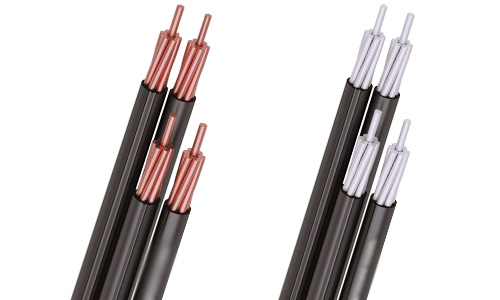

HT Aerial Bunch Cable(IS 7098-2)
