Direct Buried Fiber Optic Cable
Direct buried fiber optic cable is a kind of optical cable which is armored with steel tape or steel wire outside. With performance of resisting external mechanical damage and soil erosion, it can be directly buried in the ground. Direct burial is the most convenient laying method for fiber optic cable and also save the duct and aerial installation costs.Direct buried fiber optic cable is widely used in long-distance communication and inter-office communication network.
All specifications direct buried fiber optic cables and on-demand manufacturing. Request a direct burial fiber cable quote today.
Standard Types
Custom Materials & Specifications for Direct Buried Fiber Optic Cable
Custom With Experts
Stranded Loose Tube Aluminum/Steel Tape Double Sheath Armored Fiber Optic Cable
Technical Characteristics
Estimated Analysis for Direct Buried Fiber Optic Cable Price
Direct buried fiber cable cost-driving are mainly cable specifications, materials, cable structures and shipping.
For a formal and accurate offer price, you can always contact one of our experts!
GET A QUOTE
Fiber Optic Cable Installation Buried Laying
Direct burial is a better choice, for all fiber cables are buried underground and no need for poles. So buried laying is suitable for fiber optic cable installation in cities and places with this need.
The main disadvantage of buried cable laying is that it affects the underground construction a lot. But it can be avoided and overcome with some effective measures.
Contact Your Fiber Optic Cable Experts
We help you avoid the pitfalls to deliver the quality and value your fiber optic cable need, on-time and on-budget.
Direct buried fiber optic cable is a kind of optical cable which is armored with steel tape or steel wire outside. With performance of resisting external mechanical damage and soil erosion, it can be directly buried in the ground. Direct burial is the most convenient laying method for fiber optic cable and also save the duct and aerial installation costs.Direct buried fiber optic cable is widely used in long-distance communication and inter-office communication network.
All specifications direct buried fiber optic cables and on-demand manufacturing. Request a direct burial fiber cable quote today.
Standard Types

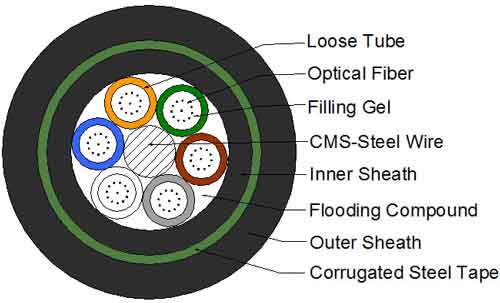

| GYTY53 Double Sheaths Stranded Loose Tube Cable with Steel Tape |  |

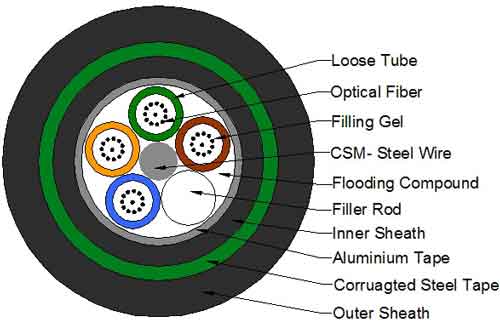

| GYTA53 Stranded Loose Tube Cable with Aluminum Tape and Steel Tape |  |
| GYFTA53 Aluminum Tape and Steel Tape Armored Double Sheath Stranded Loose Tube Cable |  |
| GYFTY53 Loose Tube No-metallic Armored Cable |  |
Custom With Experts
Stranded Loose Tube Aluminum/Steel Tape Double Sheath Armored Fiber Optic Cable
| Cable Specifications It is a fiber optic cable which has good performance of resisting external mechanical damage and preventing soil erosion. Fiber optic units are armored with metal aluminum table, water-blocking materials, steel tape and double sheath outside, which makes it is available for directly buried in the ground. Applications long-distance communication and inter-office communication network Features • Good mechanical properties and temperature characteristics • Single steel wire as central strength member • Plastic coated aluminum tape (APL) moisture-proof layer • Double side plastic coated steel tape (PSP) • Fiber filling compound protection • Stranded loose tube for large fiber counts • Water-blocking materials • Double PE sheath |
 |
| Fiber Count |
Loose Tubes |
Fillers | Weight (kg/km) |
Tensile Long/Short Term (N/100mm) | Crush Long/Short Term (N/100mm) | Bending Radius Static/Dynamic (mm) |
|---|---|---|---|---|---|---|
| 2~36 | 1~6 | 5~0 | 177 | 1000/3000 |
1000/3000 |
12.5D/25D |
| 38~60 | 4~5 | 1~0 | 194 | |||
| 62~72 | 6 | 0 | 204 | |||
| 74~96 | 7~8 | 1~0 | 239 | |||
| 98~120 | 9~10 | 1~0 | 275 | |||
| 122~216 | 11~18 | 5~0 | 312 |
Estimated Analysis for Direct Buried Fiber Optic Cable Price
Direct buried fiber cable cost-driving are mainly cable specifications, materials, cable structures and shipping.
For a formal and accurate offer price, you can always contact one of our experts!
GET A QUOTE
Fiber Optic Cable Installation Buried Laying
Direct burial is a better choice, for all fiber cables are buried underground and no need for poles. So buried laying is suitable for fiber optic cable installation in cities and places with this need.
The main disadvantage of buried cable laying is that it affects the underground construction a lot. But it can be avoided and overcome with some effective measures.
Contact Your Fiber Optic Cable Experts
We help you avoid the pitfalls to deliver the quality and value your fiber optic cable need, on-time and on-budget.
