Underground Directly Buried Central Outdoor Loose Tube cable GYXTW 53

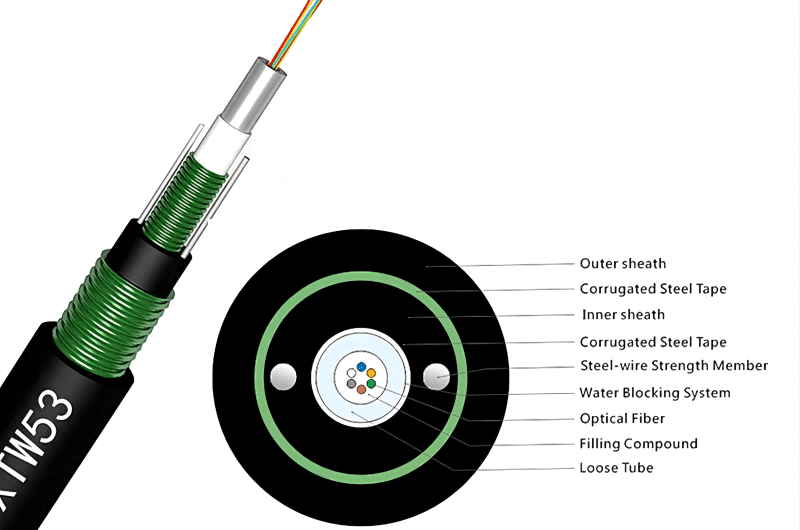

GYXTW53 Double Steel Tape Armored Uni-tube Outdoor Fiber Optic Cable

GYXTW53 Fiber Cable Central Loose Tube Type Armored Fiber acount: 2-24 cores
GYXTW53 Armored Central Loose Tube Direct Buried Fiber Cable
Description
Product Name: Armored and Sheathed Double Central Loose tube Cable
Model: outdoor direct buried optic cable

Application:
  • Adopted to Outdoor distribution.
  • Suitable for aerial duct and buried method.
  • Long distance and local area network communication.

Characteristics:
  1. Steel-wire parallel member.filler protect tube fiber steel tape armored.
  2. Excellent mechanical and environmental performance.
  3. Compact structure.light weight.
  4. Can be installed conveniently and operated simply.

Technical Parameters:
Cable Count Out sheath Weight Minimum allowable Tensile Strength minimum allowable Crush Load Minimum Bending Radius Storage
Diameter (N) (N/100mm) (MM) temperature
(MM) (KG) short term long term short term long term short term long term (℃)
2 12 165 3000 1000 1500 500 20D 10D 20
4 12 165 3000 1000 1500 500 20D 10D 20
6 12 165 3000 1000 1500 500 20D 10D 20
8 12 165 3000 1000 1500 500 20D 10D 20
10 12 165 3000 1000 1500 500 20D 10D 20
12 12 165 3000 1000 1500 500 20D 10D 20
24 12 165 3000 1000 1500 500 20D 10D 20
