Stranded Loose Tube Steel Wire Armored Optical Fiber Cable GYFTA33/GYTA33 (2-44cores)
| Installation: | Underwater, direct-burial, climbing. |
|---|---|

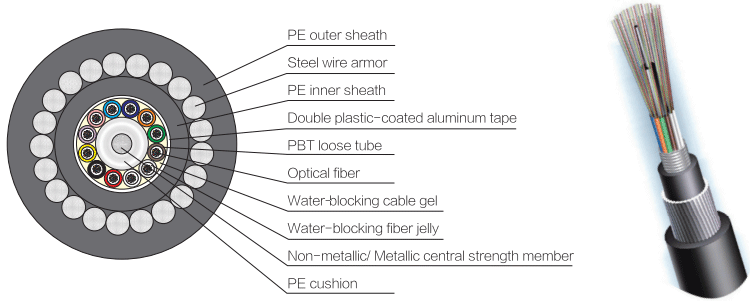

| Structural features: | Non- metallic (FRP)/ Metallic (phosphated steel wire) central strength member, double plastic- coated aluminum tape-PE bonded inner sheath, steel wire armor-PE bonded outer sheath. |
| Performance characteristics： | Excellent water- resistant performance with double plastic-coated aluminum tape-PE bonded inner sheath, steel wire armor significantly improved ihe performance of tensile resistance, crush resistance and impact resistance. |
| Application: | Long-haul communication, interoffice communication, especially suitable for harsh environment like climbing slops, crossing rivers and so on. |
Technical parameters
| Fiber count | Cable O.D (mm) | Cable weight (kg/km) | Minimum bending radius | Tension allowed(N) | Crush resistance(N) | |||
| Static | Dynamic | Short term | Long term | Short term | Long term | |||
| 2-30 | 19.4 | 745 | 12.5 times O.D | 25 times O.D | 20000 | 10000 | 5000 | 3000 |
| 32-36 | 20.4 | 810 | ||||||
| 38-60 | 20.4 | 810 | ||||||
| 62-72 | 21.0 | 820 | ||||||
| 74-96 | 22.0 | 880 | ||||||
| 98-120 | 24.0 | 1080 | ||||||
| 122-144 | 27.2 | 1473 | ||||||
