ABNT NBR 8182 0.6/1kV Preassembled Cabos De Alumínio Multiplexado

ABNT NBR 8182 0.6/1kV Preassembled Cabos De Alumínio Multiplexado

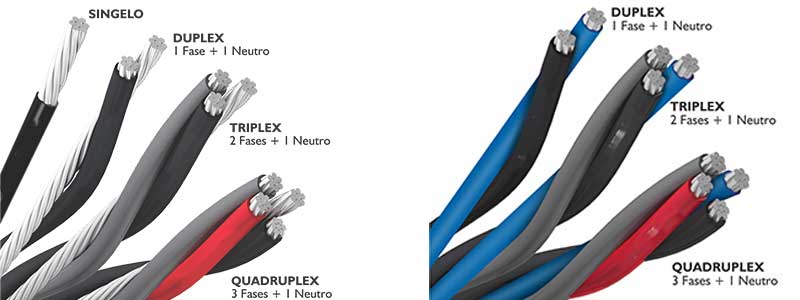

Cabo Multiplexado AL XLPE 0,6/1kV - Neutro Nu; Cabo Multiplexado AL XLPE 0,6/1kV - Neutro Isolado

Pre-assembled Cable Insulated AluminumMultiplex Wire Application

Pre-assembled Cable is also called cabo multiplex , it is used in distribution circuits and household connections. t has advantage over bare cables, because they can be installed in wooded areas and in places where there is little physical space.
Due to the fact of being isolated, Pre assembled Cable provides greater reliability to the electrical system, avoiding disconnections due to short circuits caused by contact with trees.

Pre-assembled Cable Insulated AluminumMultiplex Wire Construction


Phase conductor: Aluminum wires 1350, stringing class 2, compact, acc. to NM 280.
Insulation: thermosetting compound of XLPE/PE polyethylene, weather resistant.

Pre-assembled Cable Insulated AluminumMultiplex Wire Identification

1 phase: black
2 phases: black and gray
3 phases: black, grey and red

Pre-assembled Cable Insulated AluminumMultiplex Wire Neutral conductor

Aluminum CA: aluminum wires 1350, hardness H19, normal round stringing.
Alloy aluminum CAL: aluminum wires with alloy 6201, hardness T81, normal round stringing, acc. to 10298.
Neutral conductor insulation: if requested, in XLPE in light blue.

Pre-assembled Cable Insulated AluminumMultiplex Wire Maximum Operating Temperatures

In continuous regime: 90°C
In overload: 130°C
In short circuit: 250°C

Pre-assembled Cable Insulated AluminumMultiplex Wire Reference Standards

ABNT NBR 8182 - Self-sustained multiplex power cables with extruded insulation of PE or XLPE, for voltages up to
0,6/1 kV - Performance requirements.
ABNT NBR NM 280 - Conductors of insulated cables (IEC 60228, MOD).
ABNT NBR 10298 - Bare cables with alloy aluminum-magnesium-silicon, for overhead lines - Specification

Pre-assembled Cable Insulated AluminumMultiplex Wire Specification

Cabo Multiplexado AL XLPE 0,6/1kV - Neutro Isolado
Tipo Seção Nominal (mm²) Condutor Fase Condutor Neutro Diâmetro externo aprox (mm) Peso Líquido (kg/km)
Diâmetro do Condutor (mm) Espessura de Isolação (mm) Resistência Elétrica Máxima (Ω/km) Formação (nº fios x mm) Espessura de Isolação (mm) Carga de Ruptura mín (kgf)
CA CAL
Duplex 1x10 + 10 4,0 1,2 3,08 7x1,36 1,2 199 - 12,9 96,4
1x16 + 16 4,7 1,2 1,91 7x1,70 1,2 306 - 14,6 135
1x25 + 25 5,9 1,4 1,20 7x2,11 1,4 455 - 17,8 207
1x35 + 35 6,9 1,6 0,87 7x2,50 1,6 626 1113 20,8 284
1x50 + 50 8,1 1,6 0,64 7x3,00 1,6 852 1602 23,5 377
Triplex 2x10 + 10 4,0 1,2 3,08 7x1,36 1,2 199 - 13,8 142
2x16 + 16 4,7 1,2 1,91 7x1,70 1,2 306 - 15,6 199
2x25 + 25 5,9 1,4 1,20 7x2,11 1,4 455 - 19,2 304
2x35 + 35 6,9 1,6 0,87 7x2,50 1,6 626 1113 22,4 420
2x50 + 50 8,1 1,6 0,64 7x3,00 1,6 852 1602 25,3 551
Quadruplex 3x10 + 10 4,0 1,2 3,08 7x1,36 1,2 199 - 15,4 188
3x16 + 16 4,7 1,2 1,91 7x1,70 1,2 306 - 17,3 264
3x25 + 25 5,9 1,4 1,20 7x2,11 1,4 455 - 21,3 403
3x35 + 35 6,9 1,6 0,87 7x2,50 1,6 626 1113 24,8 555
3x50 + 50 8,1 1,6 0,64 7x3,00 1,6 852 1602 28,0 726
3x70 + 70 9,7 1,8 0,44 7x3,45 1,8 1102 2030 32,6 1004
3x95 + 70 11,5 2,0 0,32 7x3,45 2,0 1102 2030 37,9 1270
3x120 + 70 12,9 2,0 0,25 7x3,45 2,0 1102 2030 41,3 1500
Cabo Multiplexado AL XLPE 0,6/1kV - Neutro Nu
Tipo Seção Nominal (mm²) Condutor Fase Condutor Neutro Diâmetro externo aprox (mm) Peso Líquido (kg/km)
Diâmetro do Condutor (mm) Espessura de Isolação (mm) Resistência Elétrica Máxima (Ω/km) Formação (nº fios x mm) Carga de Ruptura mín (kgf)
CA CAL
Duplex 1x10 + 10 4,0 1,2 3,08 7x1,36 199 - 10,5 74
1x16 + 16 4,7 1,2 1,91 7x1,70 306 - 12,2 109
1x25 + 25 5,9 1,4 1,20 7x2,11 455 - 15,0 167
1x35 + 35 6,9 1,6 0,87 7x2,50 626 1113 17,6 231
1x50 + 50 8,1 1,6 0,64 7x3,00 852 1602 20,3 311
Triplex 2x10 + 10 4,0 1,2 3,08 7x1,36 199 - 13,8 119
2x16 + 16 4,7 1,2 1,91 7x1,70 306 - 15,3 173
2x25 + 25 5,9 1,4 1,20 7x2,11 455 - 18,8 266
2x35 + 35 6,9 1,6 0,87 7x2,50 626 1113 21,8 367
2x50 + 50 8,1 1,6 0,64 7x3,00 852 1602 24,4 485
Quadruplex 3x10 + 10 4,0 1,2 3,08 7x1,36 199 - 15,4 165
3x16 + 16 4,7 1,2 1,91 7x1,70 306 - 17,0 238
3x25 + 25 5,9 1,4 1,20 7x2,11 455 - 20,9 365
3x35 + 35 6,9 1,6 0,87 7x2,50 626 1113 24,2 502
3x50 + 50 8,1 1,6 0,64 7x3,00 852 1602 27,1 660
3x70 + 70 9,7 1,8 0,44 7x3,45 1102 2030 31,9 920
3x95 + 70 11,5 2,0 0,32 7x3,45 1102 2030 37,2 1185
3x120 + 70 12,9 2,0 0,25 7x3,45 1102 2030 40,6 1415
DADOS CONSTRUTIVOS
Formação do cabo(mm²) Condutor Fase Condutor Neutro Diâmetro externo
aproximado (mm)
Resistência
elétrica nominal
C.C. a 20°C
(Ω/km)
Massa líquida
aproximada
(kg/km)
Diâmetro nominal
do condutor (mm)
Material
da isolação
Espessura nominal
da isolação(mm)
Nº de
fios
Diâmetro nominal do
condutor (mm)
Tipo(4)
DUPLEX 1x1x10+10 4,08 XLPE 90°C 1,2 7 4,08 CA 10,60 3,08 77
1x1x16+16 4,60 XLPE 90°C 1,2 7 5,12 CA 12,20 1,91 107
1x1x25+25 5,60 XLPE 90°C 1,4 7 6,33 CA 14,70 1,20 163
1x1x35+35 6,70 XLPE 90°C 1,6 7 7,50 CA 17,40 0,868 238
1x1x50+50 7,80 XLPE 90°C 1,6 7 9,00 CA 20,00 0,641 331
1x1x70+70 9,95 XLPE 90°C 1,8 7 10,40 CA 24,00 0,443 424
TRIPLEX 2x1x10+10 4,08 XLPE 90°C 1,2 7 4,08 CA 14,00 3,08 125
2x1x16+16 4,60 XLPE 90°C 1,2 7 5,12 CA 15,10 1,91 169
2x1x25+25 5,60 XLPE 90°C 1,4 7 6,33 CA 18,10 1,20 260
2x1x35+35 6,70 XLPE 90°C 1,6 7 7,50 CA 21,40 0,868 377
2x1x50+50 7,80 XLPE 90°C 1,6 7 9,00 CA 23,80 0,641 527
2x1x70+70 9,95 XLPE 90°C 1,8 7 10,40 CA 29,30 0,443 679
QUADRUPLEX 3x1x10+10 4,08 XLPE 90°C 1,2 7 4,08 CA 15,70 3,08 165
3x1x16+16 4,60 XLPE 90°C 1,2 7 5,12 CA 16,90 1,91 236
3x1x25+25 5,60 XLPE 90°C 1,4 7 6,33 CA 20,30 1,20 349
3x1x35+35 6,70 XLPE 90°C 1,6 7 7,50 CA 23,90 0,868 518
3x1x50+50 7,80 XLPE 90°C 1,6 7 9,00 CA 26,50 0,641 724
3x1x70+70 9,95 XLPE 90°C 1,8 7 10,40 CA 32,70 0,443 924
3x1x95+70 11,80 XLPE 90°C 2,0 7 10,40 CA 37,60 0,320 1,148
3x1x95+95 11,80 XLPE 90°C 2,0 7 12,33 CA 38,10 0,320 1,335
3x1x120+70 13,40 XLPE 90°C 2,0 7 10,40 CA 40,60 0,253 1,420
3x1x120+120 13,40 XLPE 90°C 2,0 19 14,50 CA 41,90 0,253 1,574
  • (4) Condutor neutro tipo CAA (alumínio com alma de aço zincado) e CAL (alumínio liga) sob consulta.
  • (5) Duplex: composto por um condutor fase e um condutor neutro.
  • (6) Triplex: composto por dois condutores fase e um condutor neutro.
  • (7) Quadruplex: composto por três condutores fase e um condutor neutro.
