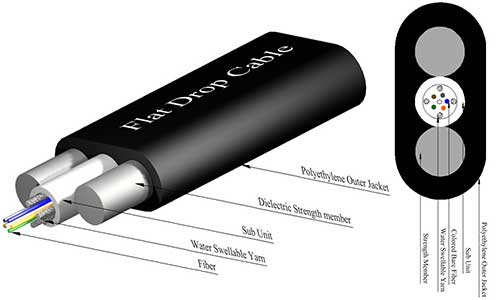

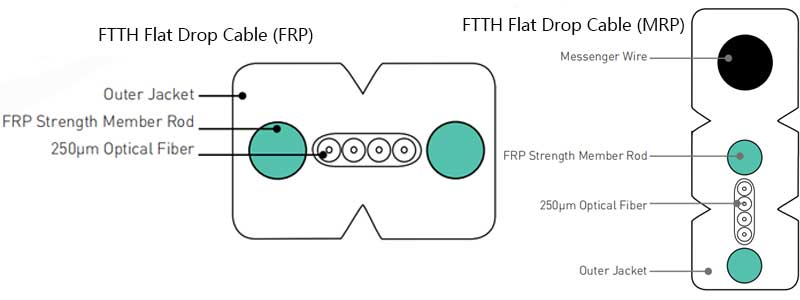

FTTH flat drop cables are available in ITU-T G.652D, ITU-T G.657A1 & ITU-T G.657A2. All dielectric Fiber To The Home (FTTH) drop cables consist of 1 to 4 250µm individually colored optical fibers with Fiber Reinforced Plastic strength members and Low Smoke Zero Halogen (LSZH) or PVC jackets
FTTH flat drop cables are available in ITU-T G.652D, ITU-T G.657A1 & ITU-T G.657A2. All dielectric Fiber To The Home (FTTH) drop cables consist of 1 to 4 250µm individually colored optical fibers with Fiber Reinforced Plastic strength members and Low Smoke Zero Halogen (LSZH) or PVC jackets
Flat Drop Cable Fiber Type OS1/2 6/125; OS1/2 G.657.A1 G.657.A2 OM1 62.5/125; OM2 50/125; OM3 50/125; OM4 50/125 Flat Drop Cable 1 to 12 fiber Features • Choice of fiber types • Individually colored optical fibers • Notched construction • Choice of outer jacket material • Customized jacket print legend FTTH China Applications • Internal FTTH applications • Clipping to surfaces including skirting boards • Self-Supporting • Horizontal cabling |
 |
| Parameter | UOM | Value | |
| Fiber count | 1~4F | ||
| Outer diameter | mm | 3. 1x1.9 | 5.0x2.0 |
| Insertion loss | dB/km | SM: ≤0.4@1310nm, ≤0.3@1550nm MM: ≤3.5@850nm, ≤1.5@1300nm |
|
| Long term tensile strength | N | 40 | 300 |
| Short term tensile strength | N | 80 | 600 |
| Minimum static bending radius | mm | 19 | 20 |
| Minimum dynamic bending radius | mm | 38 | 40 |
| Long term crush resistance | N | 500 | 1000 |
| Short term crush resistance | N | 1000 | 2200 |
| Storage temperature | oC | -20~+60 | |
| Operating temperature | oC | -20~+60 | |
| Cable weight | kg/km | 9 | 20 |
| Reel dimension (4km/reel) | WxDia. (mm) | 445x600 | |
| Reel weight | Kg | 6.82 | |
FTTH Drop Ordering Information
| FD Flat Drop Cable | ||||||
| Cable Type | Fiber count | Fiber Type | Strength Member | Outer Jacket Material | Outer Sheath Color | Length |
| FD=FTTH Drop cable | 1 2 4 |
SM=OS1/OS2 M1=OM1 M2=OM2 M3=OM3 M4=OM4 A1=G657A1 A2=G657A2 |
F=FRP M=MRP | Outer Jacket Material | OR=Orange BK=Black WH=White BL=Blue |
1=1KM 2=2KM 4=4KM |
