SANS 1418 Aerial Bundled Cable Application
SANS 1418 is one of the South African national standards for overhead bundled conductor systems for low, medium and high voltage distribution lines and transmission lines.The SANS 1418 LV ABC Conductor Aerial Bunch Cable is used for overhead line power, so called for combining multiple single core cables together. With applications including temporary power distribution to street lighting and secondary pole-to-pole service cables, they are lightweight stranded aluminium conductors, both single core and multi-cores. ABC Conductor is easy to install, which is the same as bare conductor.

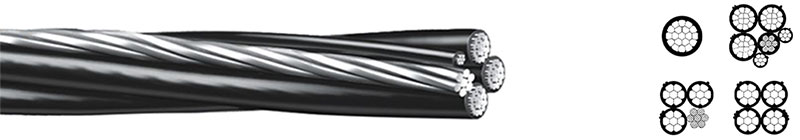

SANS 1418 Aerial Bundled Cable Construction
Concentric strands or compact aluminum conductor, polyethylene or crosslinked polyethyleneinsulation.Phase conductor: circular stranded,rounded,compact aluminum conductor
Phase Core ldentification: colour strip, rib or number
Neutral/Messenger conductor: non-compacted or compacted all aluminum alloy conductOr AAAC
Street Lighting Conductor: circular stranded, rounded, compacted aluminum conductor
Insulation: black polyethylene(PE) or crosslinked polyethylene(XLPE)
SANS 1418 Aerial Bundled Cable Features
- Both self-supporting and supporting-core systems available.
- Self-supporting is AAC strand compacted conductor up to 4 cores XLPE insulated.
- Supporting-core is AAAC conductor XLPE insulated.
- Conductor and supporting-core can be offered in single, duplex, triplex, and quadruplex.
- Flame retardant, fire resistance and other requirement can be full-filled.
- Rare specifications or producing by your sample can also be full filled.
SANS 1418 Standard Aerial Bunch Cable LV ABC Conductor Specification
Cross Section | Nominal Overall Diameter | Nominal Weight | Minimum Bending Radius | Maximum Current Rating Air 30 ºC | Voltage Drop Cos φ= 0,8 |
nc x mm² | mm | kg/km | mm | A | V/A.km |
AL 16/2 | 14,6 | 135 | 215 | 81 | 3,489 |
AL 25/2 | 20,5 | 200 | 300 | 109 | 2,226 |
AL 35/3+16A+54,6N | 30,7 | 705 | 440 | 120 | 1,632 |
AL 35/3+25A+54,6N | 33,4 | 740 | 450 | 120 | 1,632 |
AL 50/3+54,6N | 30,3 | 735 | 440 | 150 | 1,229 |
AL 50/3+16A+54,6N | 32,7 | 800 | 500 | 150 | 1,229 |
AL 50/3+2x16A+54,6N | 36,7 | 890 | 540 | 150 | 1,229 |
AL 50/3+25A+54,6N | 33,4 | 840 | 510 | 150 | 1,229 |
AL 70/3+16A+54,6N | 37,9 | 1.035 | 560 | 190 | 0,860 |
AL 70/3+2x16A+54,6N | 43,9 | 1.120 | 650 | 190 | 0,860 |
AL 70/3+25A+54,6N | 39,9 | 1.070 | 590 | 190 | 0,860 |
AL 95/3+54,6N | 36,7 | 1.185 | 540 | 230 | 0,652 |
AL 95/3+2x16A+54,6N | 48,4 | 1.345 | 720 | 230 | 0,652 |
AL 95/3+25A+54,6N | 43,9 | 1.285 | 650 | 230 | 0,652 |
AL 120/3+25A+54,6N | 47,7 | 1.492 | 710 | 273 | 0,504 |
AL 150/3+2x16A+54,6N | 57,1 | 1.795 | 850 | 305 | 0,446 |
AL 150/3+2×95 | 52,6 | 2.080 | 770 | 305 | 0,446 |
AL 16/4 | 20,3 | 266 | 300 | 81 | 3,489 |
AL 25/4 | 24,2 | 404 | 360 | 109 | 2,226 |
AL 50/4+25A | 34,3 | 795 | 515 | 150 | 1,229 |
AL 70/4+25A | 42,5 | 1.104 | 580 | 190 | 0,860 |
AL 95/4+25A | 44,3 | 1.410 | 640 | 230 | 0,652 |
AL 95/4+2x16A | 48,4 | 1.419 | 720 | 230 | 0,652 |
AL 120/4 | 43,2 | 1.562 | 640 | 273 | 0,504 |
AL 120/4+2x16A | 52,6 | 1.695 | 780 | 273 | 0,504 |
Nominal Cross Section | Phase(AAC+UV-XLPE) | Approx.Overall Diameter | Max. D.C. Resistance of Conductor at 20℃ | ||||
Compact Conductor | UV-XLPE Insulation | ||||||
No.of Individual Wires | Nominal Overall Diameter | Nominal Thickness | Min. Thickness |
Nominal Diameter | |||
No. X mm2 | - | mm | mm | mm | mm | mm | Ω`/km |
4 X 16 | 7 | 4.8 | 1.2 | 0.98 | 7.2 | 17.42 | 1.91 |
4 X 25 | 7 | 6.0 | 1.4 | 1.16 | 8.8 | 21.3 | 1.2 |
4 X 35 | 7 | 7.0 | 1.6 | 1.34 | 10.2 | 24.68 | 0.868 |
4 X 50 | 7 | 8.3 | 1.6 | 1.34 | 11.5 | 27.83 | 0.641 |
4 X 70 | 19 | 10.0 | 1.8 | 1.52 | 13.6 | 32.91 | 0.443 |
4 X 95 | 19 | 11.6 | 1.8 | 1.52 | 15.2 | 36.78 | 0.32 |
4 X 120 | 19 | 13.0 | 1.8 | 1.52 | 16.6 | 40.17 | 0.253 |
4 X 150 | 19 | 14.6 | 1.8 | 1.52 | 18.2 | 44.04 | 0.206 |
3 X 16 | 7 | 4.8 | 1.2 | 0.98 | 7.2 | 15.55 | 1.91 |
3 X 25 | 7 | 6.0 | 1.4 | 1.16 | 8.8 | 19.01 | 1.2 |
3 X 35 | 7 | 7.0 | 1.6 | 1.34 | 10.2 | 22.03 | 0.868 |
3 X 50 | 7 | 8.3 | 1.6 | 1.34 | 11.5 | 24.84 | 0.641 |
3 X 70 | 19 | 10.0 | 1.8 | 1.52 | 13.6 | 29.38 | 0.443 |
3 X 95 | 19 | 11.6 | 1.8 | 1.52 | 15.2 | 32.83 | 0.32 |
3 X 120 | 19 | 13.0 | 1.8 | 1.52 | 16.6 | 35.86 | 0.253 |
3 X 150 | 19 | 14.6 | 1.8 | 1.52 | 18.2 | 39.31 | 0.206 |
2 X 16 | 7 | 4.8 | 1.2 | 0.98 | 7.2 | 14.4 | 1.91 |
2 X 25 | 7 | 6.0 | 1.4 | 1.16 | 8.8 | 17.6 | 1.2 |
2 X 35 | 7 | 7.0 | 1.6 | 1.34 | 10.2 | 20.4 | 0.868 |
2 X 50 | 7 | 8.3 | 1.6 | 1.34 | 11.5 | 23 | 0.641 |
2 X 70 | 19 | 10.0 | 1.8 | 1.52 | 13.6 | 27.2 | 0.443 |
2 X 95 | 19 | 11.6 | 1.8 | 1.52 | 15.2 | 30.4 | 0.32 |
2 X 120 | 19 | 13.0 | 1.8 | 1.52 | 16.6 | 33.2 | 0.253 |
2 X 150 | 19 | 14.6 | 1.8 | 1.52 | 18.2 | 36.4 | 0.206 |
1 X 16 | 7 | 4.8 | 1.2 | 0.98 | 7.2 | 7.2 | 1.91 |
1 X 25 | 7 | 6.0 | 1.4 | 1.16 | 8.8 | 8.8 | 1.2 |
1 X 35 | 7 | 7.0 | 1.6 | 1.34 | 10.2 | 10.2 | 0.868 |
1 X 50 | 7 | 8.3 | 1.6 | 1.34 | 11.5 | 11.5 | 0.641 |
1 X 70 | 19 | 10.0 | 1.8 | 1.52 | 13.6 | 13.6 | 0.443 |
1 X 95 | 19 | 11.6 | 1.8 | 1.52 | 15.2 | 15.2 | 0.32 |
1 X 120 | 19 | 13.01 | 1.8 | 1.52 | 16.6 | 16.6 | 0.253 |
1 X 150 | 19 | 14.6 | 1.8 | 1.52 | 18.2 | 18.2 | 0.206 |
Nominal Section Area | Phase(AAC+UV-XLPE) | Supporting(AAAC+UV-XLPE) | Approx. Overall Diameter | ||||
Phase (AAC+UV-XLPE) |
Supporting (AAAC+UV-XLPE) |
Compact Conductor | UV-XLPE Insulation | Conductor | UV-XLPE Insulation | ||
No.of Individual Wires | Nominal Diameter | Nominal Thickness | No./Dia.of Wires | Nominal Thickness | |||
No. X mm2 | No. X mm2 | - | mm | mm | No./mm | mm | mm |
3 X 16 | 1 X 54.6 | 7 | 4.8 | 1.2 | 7/3.15 | 1.6 | 20.72 |
3 X 25 | 1 X 54.6 | 7 | 6 | 1.4 | 7/3.15 | 1.6 | 23.63 |
3 X 35 | 1 X 54.6 | 7 | 7 | 1.6 | 7/3.15 | 1.6 | 26.17 |
3 X 50 | 1 X 54.6 | 7 | 8.3 | 1.6 | 7/3.15 | 1.6 | 28.53 |
3 X 70 | 1 X 54.6 | 19 | 10 | 1.8 | 7/3.15 | 1.6 | 32.34 |
3 X 95 | 1 X 54.6 | 19 | 11.6 | 1.8 | 7/3.15 | 1.6 | 35.24 |
3 X 120 | 1 X 54.6 | 19 | 13 | 1.8 | 7/3.15 | 1.6 | 37.78 |
3 X 150 | 1 X 54.6 | 19 | 14.6 | 1.8 | 7/3.15 | 1.6 | 40.69 |
3 X 16 | 1 X 70 | 7 | 4.8 | 1.2 | 7/3.5 | 1.6 | 21.36 |
3 X 25 | 1 X 70 | 7 | 6 | 1.4 | 7/3.5 | 1.6 | 24.26 |
3 X 35 | 1 X 70 | 7 | 7 | 1.6 | 7/3.5 | 1.6 | 26.8 |
3 X 50 | 1 X 70 | 7 | 8.3 | 1.6 | 7/3.5 | 1.6 | 29.16 |
3 X 70 | 1 X 70 | 19 | 10 | 1.8 | 7/3.5 | 1.6 | 32.97 |
3 X 95 | 1 X 70 | 19 | 11.6 | 1.8 | 7/3.5 | 1.6 | 35.88 |
3 X 120 | 1 X 70 | 19 | 13 | 1.8 | 7/3.5 | 1.6 | 38.42 |
3 X 150 | 1 X 70 | 19 | 14.6 | 1.8 | 7/3.5 | 1.6 | 41.32 |
Nominal Section Area | Phase | Supporting | Service Connection | Approx.Overall Diameter | |||||||
Phase (AAC+XLPE) |
Supporting (AAAC+XLPE) |
Service Connection (AAC+XLPE) |
Compact Conductor | UV-XLPE | Conductor | UV-XLPE | Compact Conductor | UV-XLPE | |||
No.of Al.Wire | Overall Dia. | Normal Thickness |
No./Dia.of Alloy Wires | Normal Thickness |
No. of Al. Wire | Overall Dia. | NominalThickness | ||||
No.Xmm2 | No.Xmm2 | No.Xmm2 | - | mm | mm | No./mm | mm | - | mm | mm | mm |
3 X 16 | 1 X 54.6 | 1 X 25 | 7 | 4.8 | 1.2 | 7/3.15 | 1.6 | 7 | 6.0 | 1.4 | 27.05 |
3 X 25 | 1 X 54.6 | 1 X 25 | 7 | 6.0 | 1.4 | 7/3.15 | 1.6 | 7 | 6.0 | 1.4 | 30.25 |
3 X 35 | 1 X 54.6 | 1 X 25 | 7 | 7.0 | 1.6 | 7/3.15 | 1.6 | 7 | 6.0 | 1.4 | 33.05 |
3 X 50 | 1 X 54.6 | 1 X 25 | 7 | 8.3 | 1.6 | 7/3.15 | 1.6 | 7 | 6.0 | 1.4 | 35.65 |
3 X 70 | 1 X 54.6 | 1 X 25 | 19 | 10.0 | 1.8 | 7/3.15 | 1.6 | 7 | 6.0 | 1.4 | 39.85 |
3 X 95 | 1 X 54.6 | 1 X 25 | 19 | 11.6 | 1.8 | 7/3.15 | 1.6 | 7 | 6.0 | 1.4 | 43.05 |
3 X 120 | 1 X 54.6 | 1 X 25 | 19 | 13.0 | 1.8 | 7/3.15 | 1.6 | 7 | 6.0 | 1.4 | 45.85 |
3 X 150 | 1 X 54.6 | 1 X 25 | 19 | 14.6 | 1.8 | 7/3.15 | 1.6 | 7 | 6.0 | 1.4 | 49.05 |
3 X 16 | 1 X 54.6 | 2 X 25 | 7 | 4.8 | 1.2 | 7/3.15 | 1.6 | 7 | 6.0 | 1.4 | 27.05 |
3 X 25 | 1 X 54.6 | 2 X 25 | 7 | 6.0 | 1.4 | 7/3.15 | 1.6 | 7 | 6.0 | 1.4 | 30.25 |
3 X 35 | 1 X 54.6 | 2 X 25 | 7 | 7.0 | 1.6 | 7/3.15 | 1.6 | 7 | 6.0 | 1.4 | 33.05 |
3 X 50 | 1 X 54.6 | 2 X 25 | 7 | 8.3 | 1.6 | 7/3.15 | 1.6 | 7 | 6.0 | 1.4 | 35.65 |
3 X 70 | 1 X 54.6 | 2 X 25 | 19 | 10.0 | 1.8 | 7/3.15 | 1.6 | 7 | 6.0 | 1.4 | 39.85 |
3 X 95 | 1 X 54.6 | 2 X 25 | 19 | 11.6 | 1.8 | 7/3.15 | 1.6 | 7 | 6.0 | 1.4 | 43.05 |
3 X 120 | 1 X 54.6 | 2 X 25 | 19 | 13.0 | 1.8 | 7/3.15 | 1.6 | 7 | 6.0 | 1.4 | 45.85 |
3 X 150 | 1 X 54.6 | 2 X 25 | 19 | 14.6 | 1.8 | 7/3.15 | 1.6 | 7 | 6.0 | 1.4 | 49.05 |
3 X 16 | 1 X 70 | 1 X 25 | 7 | 4.8 | 1.2 | 7/3.15 | 1.6 | 7 | 6 | 1.4 | 28.1 |
3 X 25 | 1 X 70 | 1 X 25 | 7 | 6.0 | 1.4 | 7/3.15 | 1.6 | 7 | 6 | 1.4 | 31.3 |
3 X 35 | 1 X 70 | 1 X 25 | 7 | 7.0 | 1.6 | 7/3.15 | 1.6 | 7 | 6 | 1.4 | 34.1 |
3 X 50 | 1 X 70 | 1 X 25 | 7 | 8.3 | 1.6 | 7/3.15 | 1.6 | 7 | 6 | 1.4 | 36.7 |
3 X 70 | 1 X 70 | 1 X 25 | 19 | 10.0 | 1.8 | 7/3.15 | 1.6 | 7 | 6 | 1.4 | 40.9 |
3 X 95 | 1 X 70 | 1 X 25 | 19 | 11.6 | 1.8 | 7/3.15 | 1.6 | 7 | 6 | 1.4 | 44.1 |
3 X 120 | 1 X 70 | 1 X 25 | 19 | 13.0 | 1.8 | 7/3.15 | 1.6 | 7 | 6 | 1.4 | 46.9 |
3 X 150 | 1 X 70 | 1 X 25 | 19 | 14.6 | 1.8 | 7/3.15 | 1.6 | 7 | 6 | 1.4 | 50.1 |
3 X 16 | 1 X 70 | 2 X 25 | 7 | 4.8 | 1.2 | 7/3.15 | 1.6 | 7 | 6 | 1.4 | 28.1 |
3 X 25 | 1 X 70 | 2 X 25 | 7 | 6.0 | 1.4 | 7/3.15 | 1.6 | 7 | 6 | 1.4 | 31.3 |
3 X 35 | 1 X 70 | 2 X 25 | 7 | 7.0 | 1.6 | 7/3.15 | 1.6 | 7 | 6 | 1.4 | 34.1 |
3 X 50 | 1 X 70 | 2 X 25 | 7 | 8.3 | 1.6 | 7/3.15 | 1.6 | 7 | 6 | 1.4 | 36.7 |
3 X 70 | 1 X 70 | 2 X 25 | 19 | 10.0 | 1.8 | 7/3.15 | 1.6 | 7 | 6 | 1.4 | 40.9 |
3 X 95 | 1 X 70 | 2 X 25 | 19 | 11.6 | 1.8 | 7/3.15 | 1.6 | 7 | 6 | 1.4 | 44.1 |
3 X 120 | 1 X 70 | 2 X 25 | 19 | 13.0 | 1.8 | 7/3.15 | 1.6 | 7 | 6 | 1.4 | 46.9 |
3 X 150 | 1 X 70 | 2 X 25 | 19 | 14.6 | 1.8 | 7/3.15 | 1.6 | 7 | 6 | 1.4 | 50.1 |
3 X 16 | 1 X 54.6 | 1 X 16 | 7 | 4.8 | 1.2 | 7/3.15 | 1.6 | 7 | 4.8 | 1.2 | 27.05 |
3 X 25 | 1 X 54.6 | 1 X 16 | 7 | 6.0 | 1.4 | 7/3.15 | 1.6 | 7 | 4.8 | 1.2 | 30.25 |
3 X 35 | 1 X 54.6 | 1 X 16 | 7 | 7.0 | 1.6 | 7/3.15 | 1.6 | 7 | 4.8 | 1.2 | 33.05 |
3 X 50 | 1 X 54.6 | 1 X 16 | 7 | 8.3 | 1.6 | 7/3.15 | 1.6 | 7 | 4.8 | 1.2 | 35.65 |
3 X 70 | 1 X 54.6 | 1 X 16 | 19 | 10.0 | 1.8 | 7/3.15 | 1.6 | 7 | 4.8 | 1.2 | 39.85 |
3 X95 | 1 X 54.6 | 1 X 16 | 19 | 11.6 | 1.8 | 7/3.15 | 1.6 | 7 | 4.8 | 1.2 | 43.05 |
3 X 120 | 1 X 54.6 | 1 X 16 | 19 | 13.0 | 1.8 | 7/3.15 | 1.6 | 7 | 4.8 | 1.2 | 45.85 |
3 X 150 | 1 X 54.6 | 1 X 16 | 19 | 14.6 | 1.8 | 7/3.15 | 1.6 | 7 | 4.8 | 1.2 | 49.05 |
3 X 16 | 1 X 54.6 | 2 X 16 | 7 | 4.8 | 1.2 | 7/3.15 | 1.6 | 7 | 4.8 | 1.2 | 27.05 |
3 X 25 | 1 X 54.6 | 2 X 16 | 7 | 6.0 | 1.4 | 7/3.15 | 1.6 | 7 | 4.8 | 1.2 | 30.25 |
3 X 35 | 1 X 54.6 | 2 X 16 | 7 | 7.0 | 1.6 | 7/3.15 | 1.6 | 7 | 4.8 | 1.2 | 33.05 |
3 X 50 | 1 X 54.6 | 2 X 16 | 7 | 8.3 | 1.6 | 7/3.15 | 1.6 | 7 | 4.8 | 1.2 | 35.65 |
3 X 70 | 1 X 54.6 | 2 X 16 | 19 | 10.0 | 1.8 | 7/3.15 | 1.6 | 7 | 4.8 | 1.2 | 39.85 |
3 X 95 | 1 X 54.6 | 2 X 16 | 19 | 11.6 | 1.8 | 7/3.15 | 1.6 | 7 | 4.8 | 1.2 | 43.05 |
3 X 120 | 1 X 54.6 | 2 X 16 | 19 | 13.0 | 1.8 | 7/3.15 | 1.6 | 7 | 4.8 | 1.2 | 45.85 |
3 X 150 | 1 X 54.6 | 2 X 16 | 19 | 14.6 | 1.8 | 7/3.15 | 1.6 | 7 | 4.8 | 1.2 | 49.05 |
3 X 16 | 1 X 54.6 | 1 X 16 | 7 | 4.8 | 1.2 | 7/3.15 | 1.5 | 7 | 4.8 | 1.2 | 27.9 |
3 X 25 | 1 X 70 | 1 X 16 | 7 | 6.0 | 1.4 | 7/3.15 | 1.5 | 7 | 4.8 | 1.2 | 31.1 |
3 X 35 | 1 X 70 | 1 X 16 | 7 | 7.0 | 1.6 | 7/3.15 | 1.5 | 7 | 4.8 | 1.2 | 33.9 |
3 X 50 | 1 X 70 | 1 X 16 | 7 | 8.3 | 1.6 | 7/3.15 | 1.5 | 7 | 4.8 | 1.2 | 36.5 |
3 X 70 | 1 X 70 | 1 X 16 | 19 | 10.0 | 1.8 | 7/3.15 | 1.5 | 7 | 4.8 | 1.2 | 40.7 |
3 X 95 | 1 X 70 | 1 X 16 | 19 | 11.6 | 1.8 | 7/3.15 | 1.5 | 7 | 4.8 | 1.2 | 43.9 |
3 X 120 | 1 X 70 | 1 X 16 | 19 | 13.0 | 1.8 | 7/3.15 | 1.5 | 7 | 4.8 | 1.2 | 46.7 |
3 X 150 | 1 X 70 | 1 X 16 | 19 | 14.6 | 1.8 | 7/3.15 | 1.5 | 7 | 4.8 | 1.2 | 49.9 |
3 X 16 | 1 X 70 | 2 X 16 | 7 | 4.8 | 1.2 | 7/3.15 | 1.5 | 7 | 4.8 | 1.2 | 27.9 |
3 X 25 | 1 X 70 | 2 X 16 | 7 | 6.0 | 1.4 | 7/3.15 | 1.5 | 7 | 4.8 | 1.2 | 31.1 |
3 X 35 | 1 X 70 | 2 X 16 | 7 | 7.0 | 1.6 | 7/3.15 | 1.5 | 7 | 4.8 | 1.2 | 33.9 |
3 X 50 | 1 X 70 | 2 X 16 | 7 | 8.3 | 1.6 | 7/3.15 | 1.5 | 7 | 4.8 | 1.2 | 36.5 |
3 X 70 | 1 X 70 | 2 X 16 | 19 | 10.0 | 1.8 | 7/3.15 | 1.5 | 7 | 4.8 | 1.2 | 40.7 |
3 X 95 | 1 X 70 | 2 X 16 | 19 | 11.6 | 1.8 | 7/3.15 | 1.5 | 7 | 4.8 | 1.2 | 43.9 |
3 X 120 | 1 X 70 | 2 X 16 | 19 | 13.0 | 1.8 | 7/3.15 | 1.5 | 7 | 4.8 | 1.2 | 46.7 |
3 X 150 | 1 X 70 | 2 X 16 | 19 | 14.6 | 1.8 | 7/3.15 | 1.5 | 7 | 4.8 | 1.2 | 49.9 |
