Helical Suspension Set for ADSS from Manufacturer and Supplier
Release time: 2023-12-27

Helical Suspension Set for ADSS from Manufacturer and Supplier

Helical Suspension Set for ADSS is mainly used for hanging and supporting optical cable on straight tower/pole, to transfer axial load and divert axial pressure and provide well protection for optical cable, it also protect ADSS Cable from emergencies caused by too small bending radius or stress concentration. Grip strength of the Suspension Set is larger than 15%-20% of ADSS rated tensile strength; it is fatigue resistance and can serve as vibration reduction.

Helical ADSS Wire Suspension Set Applications

Short Span Suspension Set for ADSS fiber cable is mainly used for span length within 100m; Single layer Suspension Set is mainly used for span length between 100m and 200m. If Suspension Set for ADSS is adopted double layers helical rods designing, generally it is used for 200m span length ADSS installation.
Double Suspension Sets for ADSS cable is mainly used for ADSS installation on pole/tower with large falling head, and span length is larger than 800 meters or line corner is more than 30° .

Suspension Clamp for ADSS Cable Characteristics

Helical Suspension Set for ADSS is divided into several kinds in according to ADSS span length, includes Short Span Suspension Set, Single Layer Suspension Set, Double Layers Single Point, Suspension Set(abbreviation is Single Suspension), and Dual Point Suspension Set (abbreviation is Double Suspension).

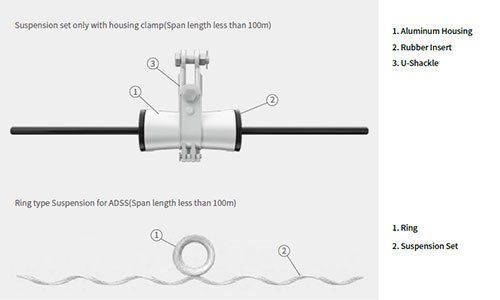

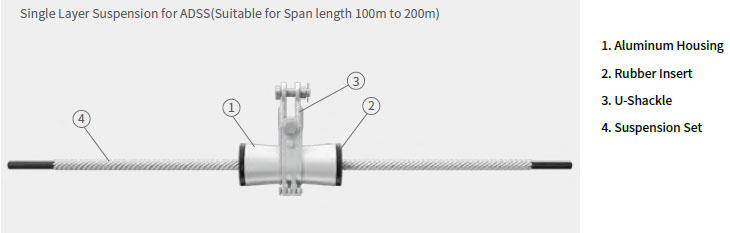

Short Span Suspension Set and Single Layer Suspension Set

Reference Assembly

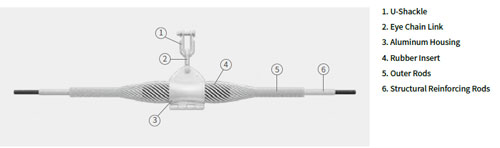

Single Suspension Set for ADSS

Suspension set for ADSS is composed by aluminum alloy helical rods, Aluminum housing and other link fittings.
Reference Assembly

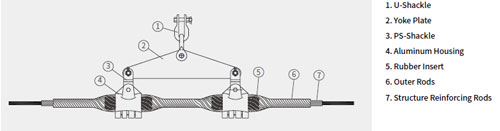

Double Suspension Sets for ADSS

Reference Assembly

How to Order ADSS Cable Price

Our team is committed to providing outstanding service before, during, and after the sale. To learn more about our products or to place an order, please contact your sales representative. WhatsApp/Mobile/WeChat our Customer Service Department at +86 186 3866 8721 or email us at info@uni-fibercable.com
