Aerial Fiber Optic Cable

Aerial Fiber Optic Cable

1-144 Core Aerial Fiber Optic Cable Figure 8 Cable; 2-288 Core All Dielectric Self Supporting (ADSS); 1-12 Core FTTH Aerial Cable
Aerial Fiber Optic Cable
Aerial fiber optic cable is a fibre optic cable that is hung on a pole and is required to be able to adapt to various natural environments. Aerial optical fiber cables can be laid using the original overhead open line poles, saving construction costs and shortening the construction period. It is suitable for areas with flat terrain and small undulations. Aerial fiber optic cable is mainly hung under the steel strand and self-supporting between poles. Its laying method is through the pole hanging line bracket hanging or bundle (winding) erection.

Overhead Fiber Optic Cable Features
As we have known, there are hanging wire and self-supporting two types of overhead fiber optic cable.
Hanging wire type
1. Fiber cable is fastened on the pole with a hanging wire
2. There are hooks to hang the optical cable on the hanging wire
3. The load of the optical cable is carried by the hanging wire
Self-supporting type
1. Self-supporting structure of the optical cable makes it no need for hanging wire
2. Figure 8 fiber optic cable and ADSS fiber optic cable are the most common self-supporting fiber optic cable
3. The load of the optical cable is carried by the self-supporting fiber optic cable itself

Aerial Fiber Optic Cable And Types
Outdoor aerial self-supporting fiber optic cable & hanging lines installation

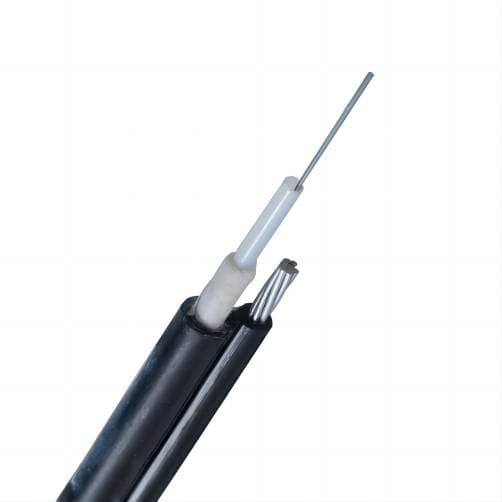

Figure 8 Multi Tube Light Armored Self Support Cable GYTC8A
Aerial Fiber Optic Cable Unitube Non Armored Figure 8 Cable GYXTC8Y
Aerial Flat Drop Fiber Cable Self-supporting Flat Aerial FTTH Fiber Cable Flat Aerial Fiber Drop Cable
ADSS Fiber Optic Cable Up To 800 M Span Aerial ADSS
Aerial Fiber Optic Cable Stranded Non Metallic Double Sheath Cable GYHTY
Armoured Fibre Optic Cable Unitube Light Armored Cable Central unitube armored fiber optic cable backbone fiber cable
Armored Fiber Optic Cable Stranded Loose Tube Light Armored Cable GYTS
Custom Materials & Specifications for Your Aerial Fiber Optic Cable
GET A QUOTE

Aerial Fiber Optic Cable Specifications
Aerial fiber optic cable is vulnerable to typhoons, ice, floods and other natural disasters, but also vulnerable to external forces and its own mechanical strength weakening and other effects, so the specifications of the overhead fiber optic cable is important.

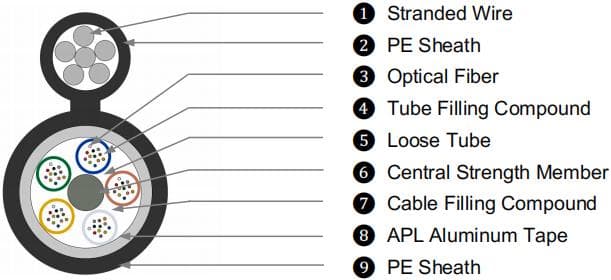

This common figure 8 aluminum armored 60 fibers self supporting
armored aerial fiber optic cable comes with stranded loose tube,
APL aluminum tape and central strength member. Other than that,
it's also accompanied with a stranded wire for self-supporting aerial installation.
Fiber Count Tubes Fillers Cable Weight   (kg/km)
4C 1 4 161
6C 1 4 161
8C 2 3 161
12C 2 3 161
24C 4 1 161
36C 6 0 165
48C 4 1 179
72C 6 0 199
96C 8 0 220
144C 12 0 286

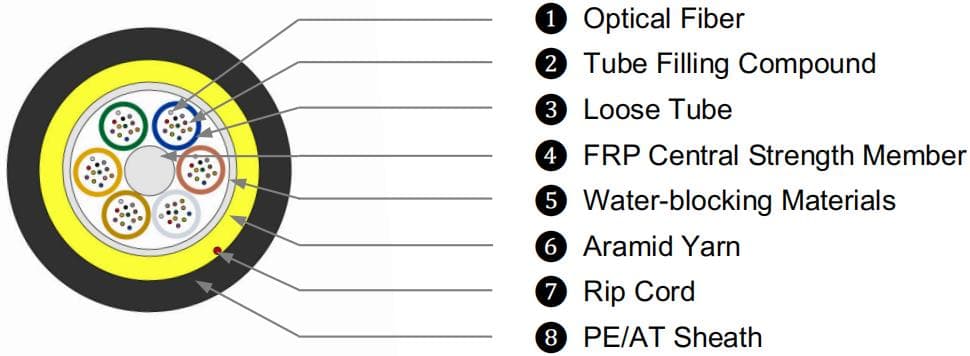

All Dielectric Self Supporting (ADSS)
ADSS 72 fibers single PE sheath, all dielectric metallic free materials with
protection from aramid yarn and FRP strength member, which is light weight
and strong enough to be installed in aerial without other hanging line. It is
also have span from 80 to 800 meters.
Fibre Count Nominal diameter (mm) Nominal weight (kg/km) Minimum bend radius (cm)
6-24 12 120 24
48-72 12.7 130 25.4
96 14.2 160 28.2
144 17 230 34
