ADSS 6/12/24/48/96/144/288 Core Single/Double Jacket 9/125 G652D All-Dielectric Self-Supporting

ADSS Single Mode/Multimode Fiber Optic Cable at China Factory Prices
All-Dielectric Self-Supporting cable is ideal for installation in distribution as well as transmission environments, even when live-line installations are required. As its name indicates, there is no support or messenger wire required, so installation is achieved in a single pass, making ADSS an economical and simple means of achieving a fiber optic network. With light weight itself and aramid yarn protection, adss fiber cable is strong enough to support itself between poles or tower without using conductive mental elements. adss fiber optic's an alternative to OPGW with lower installation costs.
ADSS fiber cable is consisting of fiber core, aramid yarn as enforcement and outside sheath. Double sheath or AT sheath is required when comes with long span or near electronic lines.
Standard 6 Core 12 Core 24 Core 96 Core ADSS Cable
Features:
1. Suitable for use on distribution and high voltage transmission lines
2. Requires no messenger wire -- fully self-supporting
3. Single pass installation -- no messenger, no lashing wire -- faster and lower cost
4. Cable is water-blocked using dry core technology, therefore no messy flooding compounds
5. Design details for span lengths up to 1500ft (457m) and fiber counts up to 432
6. Custom designs available for larger span lengths or other fiber counts
7. Full line of attachment hardware available for a "system" solution
8. Track-resistant outer jacket available for installations on high voltage lines where space potentials reach up to 25kV
9. Gel-filled buffer tubes are S-Z stranded for easy mid-span access


---

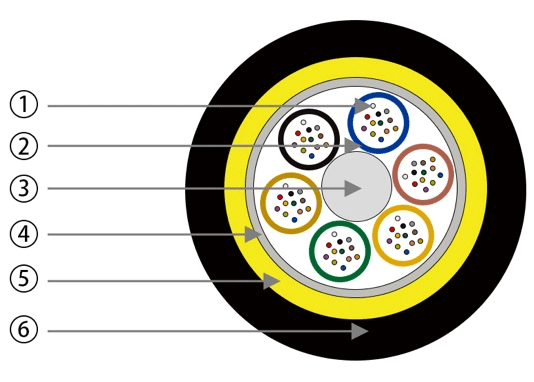

Structure of Single Jacket ADSS OFC Cable	Double Jacket ADSS All Dielectric Self-supporting Cable Similar Structure

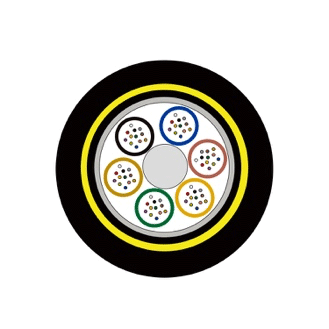

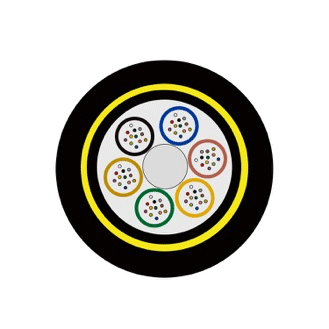

①　Optical fiber ②　Loose tube ③　FRP strength member ④　Water blocking Tape ⑤　Aramid yarn ⑥　Outer sheath	1.Double sheath 2.Water blocking cable filling compound

Applications for Adss Fiber Optic Cable Wholesale
The more and more ADSS fiber optic cable are applied in not just power line communication system, and also used for communication lines in areas where thunder and lightning is prone, large-span, and other overhead laying environments.
APPLICATIONS:
1. Utilized for telecommunications by power utilities, telcos, and private network groups
2. Designed for installation on distribution and transmission lines
3. Capable of being installed in close proximity to conductors if security is a concern
4. Suitable for underbuild applications, minimizing the need for outages
5. Used for telecom networks where quick, low-cost installation is a priority
 Most Required ADSS Fiber Optic Cable Manufacturer
All adss fiber optic cable are popular, but not every market is the same. For example, some Brazil customers love ASU80 and ASU120, so if you are planning to order them, it is best to ask our experienced consultants.

ADSS Optical Cable Parameters
ADSS single jacket

fiber count	structure	fiber per tube	losse tube diameter(MM)	FRP/pad diameter (mm)	Thickness of outer jacket(mm)	Ref.Outer Diameter (mm)	Ref.Weight (kg/km)
							PE Jacket	AT Jacket
4	1+6	4	1.9	2.0/2.0	1.7±0.1	9.8±0.2	83	93
6	1+6	6	1.9	2.0/2.0	1.7±0.1	9.8±0.2	83	93
8	1+6	4	1.9	2.0/2.0	1.7±0.1	9.8±0.2	83	93
12	1+6	6	1.9	2.0/2.0	1.7±0.1	9.8±0.2	83	93
24	1+6	6	2.0	2.0/2.0	1.7±0.1	9.8±0.2	86	96
48	1+6	12	2.0	2.0/2.0	1.7±0.1	10.0±0.2	89	99
72	1+6	12	2.2	2.0/2.0	1.7±0.1	10.5±0.2	99	109
96	1+8	12	2.2	2.0/3.4	1.7±0.1	12.0±0.2	124	136
144	1+12	12	2.2	3.0/7.2	1.7±0.1	15.2±0.2	176	189

2.ADSS double jacket

fiber count	structure	fiber per tube	losse tube diameter(MM)	FRP/pad diameter (mm)	Thickness of outer jacket(mm)	Ref.Outer Diameter (mm)	Ref.Weight (kg/km)
							PE Jacket	AT Jacket
4	1+6	4	1.9	2.0/2.0	1.7±0.1	12.0±0.2	125	135
6	1+6	6	1.9	2.0/2.0	1.7±0.1	12.0±0.2	125	135
8	1+6	4	1.9	2.0/2.0	1.7±0.1	12.0±0.2	125	135
12	1+6	6	1.9	2.0/2.0	1.7±0.1	12.0±0.2	125	135
24	1+6	6	2.0	2.0/2.0	1.7±0.1	12.0±0.2	128	138
48	1+6	12	2.0	2.0/2.0	1.7±0.1	12.5±0.2	130	140
72	1+6	12	2.2	2.0/2.0	1.7±0.1	13.2±0.2	145	155
96	1+8	12	2.2	2.0/3.4	1.7±0.1	14.5±0.2	185	195
144	1+12	12	2.2	3.0/7.2	1.7±0.1	16.5±0.2	212	228



Fiber   core	Outer sheath	Span	Number of fiber   cores per tube	Cable   diameter（mm）	Cable unit   weight（kg/km）	Rated tensile   Strength （kN）	Maximum   allowable tension （MAT,kN）
12、24、36	PE	100	6	12.30	122	11.00	4.40
12、24、36	PE	200	6	12.50	126	16.00	6.40
12、24、36	PE	300	6	12.90	134	24.00	9.60
12、24、36	PE	400	6	13.20	140	30.63	12.25
12、24、36	PE	500	6	13.50	148	39.00	15.60
12、24、36	PE	600	6	13.80	156	48.00	19.20
12、24、36	PE	700	6	14.70	175	55.00	22.00
12、24、36	PE	800	6	15.00	182	62.00	24.80
48、72	PE	100	12	13.70	153	12.50	5.00
48、72	PE	200	12	14.00	159	19.25	7.70
48、72	PE	300	12	14.40	170	31.00	12.40
48、72	PE	400	12	14.50	173	34.50	13.80
48、72	PE	500	12	14.70	178	40.38	16.15
48、72	PE	600	12	15.10	186	49.63	19.85
48、72	PE	700	12	15.80	207	57.88	23.15
48、72	PE	800	12	16.10	213	64.75	25.90
12、24、36	AT（220KV)	100	6	12.30	133	11.00	4.40
12、24、36	AT（220KV)	200	6	12.50	138	16.00	6.40
12、24、36	AT（220KV)	300	6	12.90	146	24.00	9.60
12、24、36	AT（220KV)	400	6	13.20	152	30.63	12.25
12、24、36	AT（220KV)	500	6	13.50	160	39.00	15.60
12、24、36	AT（220KV)	600	6	13.80	168	48.00	19.20
12、24、36	AT（220KV)	700	6	14.70	189	55.00	22.00
12、24、36	AT（220KV)	800	6	15.00	196	62.00	24.80
48、72	AT（220KV)	100	12	13.70	166	12.50	5.00
48、72	AT（220KV)	200	12	14.00	172	19.25	7.70
48、72	AT（220KV)	300	12	14.40	183	31.00	12.40
48、72	AT（220KV)	400	12	14.50	186	34.50	13.80
48、72	AT（220KV)	500	12	14.70	192	40.38	16.15
48、72	AT（220KV)	600	12	15.10	201	49.63	19.85
48、72	AT（220KV)	700	12	15.80	222	57.88	23.15
48、72	AT（220KV)	800	12	16.10	228	64.75	25.90
