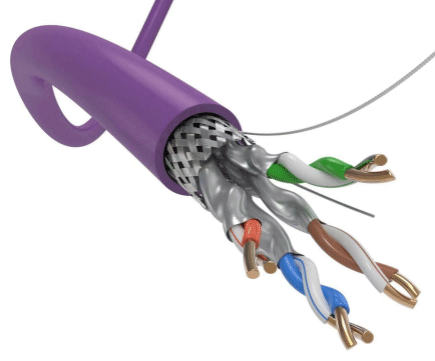

CAT 8 S/FTP CABLE
 |
 |
| ltem | S/FTP Cat8 Cable 305m |
| Type | CAT8 |

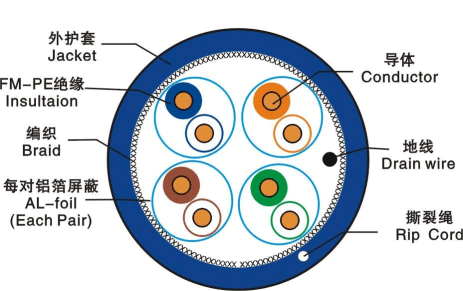

| Shielding structure | S/FTP |
| Conductor | Bare Copper,22 AWG |
| Number Of Conductor | 4 Pairs |
| Conductor diameter | 1/0.62mm,1/0.64mm |
| Insulation | Foam PE |
| Pair shield | 65U AL Foil for each pair |
| Braiding | 128*0.12mm ALM，0.1mm TC |
| Drain wire | 0.4mm , TC |
| Jacket | PvC, LSZH,PE(outdoor),PVC+PE double sheath |
| Flame Retardant | CM,CMX,CMR,CMP,Fca,Eca,Dca,Cca,B2ca |
| color | As client's request |
| length | 305m(1000ft )/Drum, 500m/Drum |
| Packing | Wooden spool(wooden drum) |
| Test | 100% Passed the FLUKE 30M channel test |
| Reference Standard | YD/T1019-2001; ISO 7 IEC11801﹔ANSI/ TIA/EIA-568B |
| Certificates | CE,RoHS, ISO9001 |
| customizing | Color of PVC jacket, marking words on cable & customized packaging |
