CTC ADSS Cable Price from Manufacturer in China
Release time: 2024-07-03

CTC ADSS Cable Price from Manufacturer in China

Central Tube Cable All Dielectric Self Supporting Cable Product Info

  • The Central Tube Cable All Dielectric Self Supporting Cable (CTC ADSS) is an aerial central tube cable with low bend radius, no waterpeak G.657.A1 fibres and dry-waterblocking aramid yarns underneath the polyethylene outer sheath.
  • It is characterized by high flexibility and resistance to tearing, it is resistant to UV radiation. The cable is intended for outdoor installation on low-voltage power installation poles, on railway and tram lines and between buildings for a spacing of 30-150 m, depending on the climatic conditions in the installation area.
  • The CTC ADSS cable, due to its light structure, in most cases does not increase the load on the foundation of the existing infrastructure.

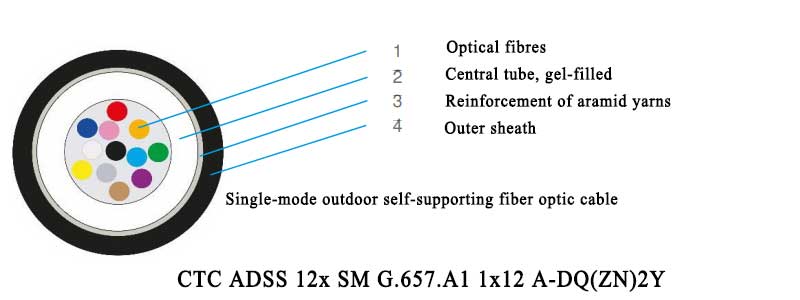

CTC ADSS Construction

  1. FO cable with central tube
  2. Outdoor application: aerial fibre-optic drop cable

CTC ADSS Specifications

Product characteristics
Cable type CTC
Fibre type Single mode 9/125
Optical fibre standard ITU-T G.657.A1
Optical element Loose tube, gel filled
Cable metal free Yes
Strain relief Yes
Material outer sheath PE
Colour outer sheath Black
Application
Test procedures EN IEC 60794-1-2
Application Outside
Blow in Yes
Optical specification
Max. attenuation @ 1310 nm 0.4 dB/km
Max. attenuation @ 1550 nm 0.3 dB/km
Max. attenuation @ 1625 nm 0.4 dB/km
Environmental specification
Longitudinal watertight construction Super Absorbing Polymer
Installation temperature -15/50 °C
Transportation and storage temperature -40/70 °C
Operational temperature range Ta1 - Tb1 -40/70 °C
Max. attenuation increase during Ta1 - Tb1 0.05 dB
Operational temperature range Ta2 - Tb2 -40/70 °C
Max. attenuation increase during Ta2 - Tb2 0.15 dB
UV resistant Yes

ADSS All Dielectric Self Supporting Cable Parameter

Description Outer diameter approx. Netto Weight (kg/m) Min. bending radius after installation Min. bending radius during installation Tensile load short term (Tm) Tensile load Long Term (Tl)
2x SM G.657.A1 (1x2) 6,5 mm 0.033 100 mm 130 mm 1350 N 600 N
4x SM G.657.A1 (1x4) 6,5 mm 0.033 100 mm 130 mm 1350 N 600 N
6x SM G.657.A1 (1x6) 6,5 mm 0.033 100 mm 130 mm 1350 N 600 N
8x SM G.657.A1 (1x8) 6,5 mm 0.033 100 mm 130 mm 1350 N 600 N
12x SM G.657.A1 (1x12) 7,1 mm 0.039 105 mm 140 mm 1350 N 600 N

How to Order ADSS Cable and Accessories Price

Our team is committed to providing outstanding service before, during, and after the sale. To learn more about our products or to place an order, please contact your sales representative. Email us at info@uni-fibercable.com
