CAT5E UTP CABLE
CAT5E FTP CABLE
CAT5E FTP/UTP CABLE
CAT5E SFTP CABLE
 |
 |

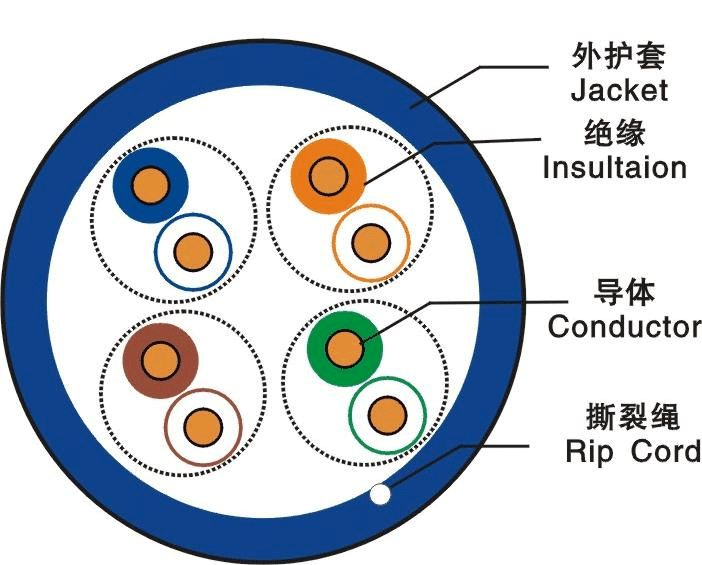

| Item | Indoor UUTP Cat5E Cable 305m |
| Type | CAT5E |
| shielding structure | U/UTP |
| conductor | Bare Copper,24 AWG |
| Number Of Conductor | 4 Pairs |
| conductor diameter | 1/0.45mm，1/0.46mm,1/0.47mm,1/0.48mm，1/0.49mm,1/0.50mm,1/0.50mm |
| Insulation | HDPE |
| Jacket | PVC,LSZH,PE(outdoor), PVC+PE double sheath |
| Flame Retardant | cM,CMX,CMR,CMP,Fca,Eca,Dca,Cca,B2ca |
| color | As client's request |
| Length | 305m/1000ft per pull box |
| Packing | Pull box，2 boxes /carton |
| Test | 100% Passed the FLUKE 90M link and 100M channel test |
| Reference Standard | YD/T1019-2001,ISO/EC 11801,ANSVTIA/EIA-568B,UL444 |
| Certificates | CE,RoHS，ISO9001 |
| customizing | Color of PVC jacket,marking words on cable & customized packaging |
 |
 |
| ltem | Indoor U/UTP Cat5E Cable 305m |
| Type | CAT5E |
| shielding structure | U/UTP |
| Conductor | Bare Copper,24AWG |
| Number Of Conductor | 4 Pairs |
| Conductor diameter | 1/0.45mm，1/0.46mm,1/0.47mm,1/0.48mm，1/0.49mm,1/0.50mm,1/0.50mm |
| Insulation | HDPE |
| Jacket | PVC,LSZH,PE(outdoor), PVC+PE double sheath |
| Flame Retardant | CM,CMX,CMR,CMP,Fca,Eca,Dca,Cca,B2ca |
| Color | As client's request |
| Length | 305m/1000ft per pull box |
| Packing | Pull box，2 boxes carton |
| Test | 100%Passed the FLUKE 90M link and 100M channel test |
| Reference Standard | YD/T1019-2001,ISOIEC 11801,ANSVTIA/EIA-568B,UL444 |
| certificates | CE, RoHS, ISO9001 |
| customizing | Color of PVC jacket, marking words on cable & customized packaging |
CAT5E FTP/UTP CABLE
 |
 |
| ltem | Indoor F/UTP Cat5E Cable 305m |
| Type | CAT5E |
| shielding structure | FIUTP |
| Conductor | Bare Copper,24 AWG |
| Number Of Conductor | 4 Pairs |
| Conductor diameter | 1/0.48mm,1/0.49mm,1/0.50mm,1/0.51mm |
| Insulation | HDPE |
| shield | Mylar +AL-foil |
| Drain wire | 0.4mm ,TC,CCA,TCCS |
| Jacket | PVC,LSZH,PE(outdoor),PVC+PE double sheath |
| Flame Retardant | CM,CMX,CMR,CMP,Fca,Eca,Dca,Cca,B2ca |
| Color | As client's request |
| Length | 305m(100Oft)/Drum |
| Packing | Wooden spool(wooden drum) |
| Test | 100% Passed the FLUKE 90M link and 100M channel test |
| Reference Standard | YD/T1019-2001,ISO/EC 11801,ANSI/TIAEIA-568B,UL444 |
| Certificates | CE, RoHS, ISO9001 |
| Customizing | Color of PVC jacket, marking words on cable & customized packaging |
 |
 |
| ltem | Indoor SF/UTP Cat5E Cable 305m |
| Type | CAT5E |
| shielding structure | SF/UTP |
| Conductor | Bare Copper,24 AWG |
| Number Of Conductor | 4 Pairs |
| Conductor diameter | 1/0.48mm,110.49mm,1/0.50mm,110.51mm |
| Insulation | HDPE |
| shield | Mylar +AL-foil |
| Braiding | 64 or 80*0.12mm ALM,0.1mm Tc |
| Drain wire | 0.4mm ,TC,CCA,TCCS |
| Jacket | PVC,LSZH,PE(outdoor),PVC+PE double sheath |
| Flame Ratardancy | CM,CMX,CMR,CMP,Fca,Eca,Dca,Cca,B2ca |
| Color | As client's request |
| Length | 305m(100Oft)/Drum |
| Packing | Wooden spool(wooden drum) |
| Test | 100%Passed the FLUKE 90M link and 10OM channel test |
| Reference Standard | YD/T1019-2001,ISO/IEC11801,ANSI/TIAEIA-568B,UL444 |
| Certificates | CE, RoHS, ISO9001 |
| customizing | Color of PVC jacket,marking words on cable & customized packaging |
