FDC Central Tube LSZH Flat Drop Cable
Introduction

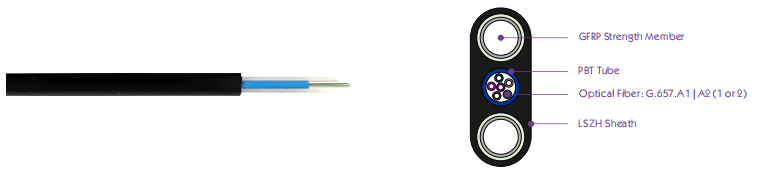

The typical Flat Drop Optical cable includes Central Tubes with optical fibre(s),Glass FRP as the strength members, a LSZH Sheath is extruded outside.
Features
Parameters
Introduction
The typical Flat Drop Optical cable includes Central Tubes with optical fibre(s),Glass FRP as the strength members, a LSZH Sheath is extruded outside.
Features
- Lighting resistance
- Non-metallic structure
- Duct installation and aerial installation together with tension strandwire
- Suitable for FTTH application as drop cable
| GJXFH | FRP Strength Member+2.0*3.0LSZH |
| GJXH | Steel Wire Strength Member+2.0*3.0 LSZH |
| GJXH-Small Diamter | Steel Wire Strength Member+1.6*2.0 LSZH |
| GJX(F)DH | Ribbon Fibers+2.0*4.0LSZH |
| GJYX(F)CH | Self-Supporting Wires+2.0*5.2LSZH |
| GJYX(F)CH-Small | Self-Supporting Wires+1.7*3.8LSZH |
| GJYXFDCH(GJYXDCH) | Self-Supporting Wires+Ribbon Fibers+1.7*3.8LSZH |
| GYFJU | Aramid Yarn Strength Round Sheath LSZH |
| GYGXY | Central Tube Glass Yarns armor Round Sheath HDPE |
| FDC | Flat Drop Cable+Central Tube+3.0*6.0 LSZH |
| ASU | Self-Supporting FRP Strength+Tube+7.0/8.0 HDPE |
| GYXY-8S | Figure-8 Self-supporting+Aramid Yarns+Tubes+4.6*8.8HDPE |
| GYFXBY | Flat Drop Cable+Central Tube+4.6*8.1 LSZH |
Parameters
| Type | Diameter mm |
Weight (kg/km) |
Tensile strength Long/short term (N) |
Crush Long/short term (N/100mm) |
Bending Radius Static/Dynamic |
| FDC-4-6F | 3.0*6.0(1.5TUBE) | 25 | 300/600 | 300/600 | 15/30 |
| FDC-12-24F | 4.0*7.0(2.5Tube) | 36 | 300/600 | 300/600 | 15/30 |
