GJXFDH GJXDH Ribbon Fibers LSZH Drop Cable

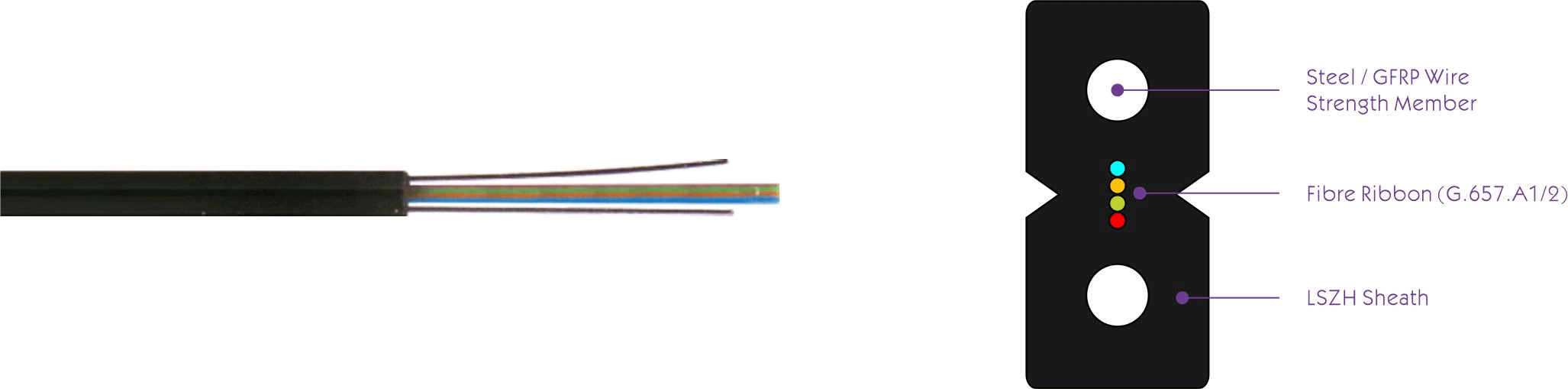

IntroductionThe typical GJXFDH bow-type drop optical cable includes central optical fibre(s) with 2 parallel FRP/Steel wires as the strength members placed on both sides a LSZH sheath is extruded outside.
Features
Simple structure, light weight, high tensile strength and metal-free
Novel groove design, easily strip and splice, simplified installation and maintenance
Low smoke, zero halogen and flame retardant sheath, environment-friendly, good safety
Parameters
Type | Diameter mm |
Weight (kg/km) |
Tensile strength Long/short term (N) |
Crush Long/short term (N/100mm) |
Bending Radius Static/Dynamic |
GJXFDH-4 | 2.0*4.0 | 11.8 | 40/80 | 500/1000 | 15/30 |
GJXDH-4 | 2.0*4.0 | 15 | 100/200 | 1000/2200 | 15/30 |
