ACSR-OC ACSR/AW-OC ACSR/AW-TR/OC Application
Aerial Insulated Cables with voltages from 6.6kV - 22.9kV of ACSR-OC, ACSR/AW-OC, ACSR/AW-TR/OC.The products primarily used for the distribution of electrical energy under normal conditions of overhead (aerial) installations. The conductors must be installed on insulators and/or spacers adequate for the service voltage. The user may want to give consideration to the dielectric compatibility of the covering, insulator, spacer and etc.
ACSR-OC ACSR/AW-OC ACSR/AW-TR/OC Description
The conductors are stranded,circular compressed ACSR-OC or ACSR/AW-OC or ACSR/AW-TR/OC. The conductor screen is the extruded Semi-conducting conductor shield in Black. The Insulation is cross-linked polyethylene (XLPE) in Black with Weather or UV resistant. The Insulation rated for 90°C normal service temperature.
ACSR-OC ACSR/AW-OC ACSR/AW-TR/OC Specifications
ACSR/AW-OC ACSR/AW-TR/OC
ACSR/AW Polyvinyl Chloride Insulated Outdoor Weather-proof wire
USAGE
An electrically, physically, and chemically outstanding cable made for pad-mounted use from a 22.9kV-y multiple grounding system.

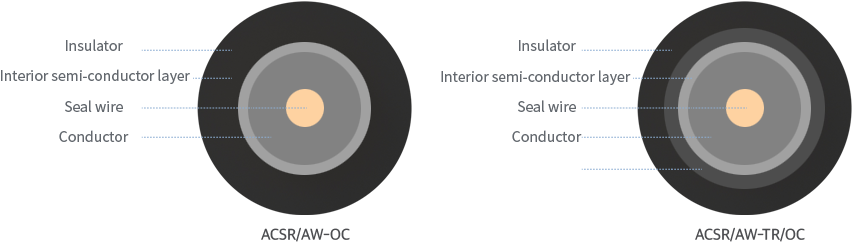

ACSR/AW-OC STRUCTURE
Seal wire : Aluminum-sheathed stranded wire (AW)
Conductor : Standard aluminum cable
Interior semi-conductor layer : Black semi-conductor thermosetting compound
Insulator : weather resistant cross-linked polyethylene (black)
ACSR/AW-TR/OC STRUCTURE
Seal wire : Aluminum-sheathed stranded wire (AW)
Conductor : Standard aluminum cable
Interior semi-conductor layer : Black semi-conductor thermosetting compound
Insulator : Weather-resistant cross-linked polyethylene (natural color)
Sheath : Black semi-conductor thermosetting compound (inner tracking)
6.6kV ACSR-OC Aerial Insulated Cables
22.9kV ACSR-OC Aerial Insulated Cables
6.6kV ACSR/AW-OC Aerial Insulated Cables
22.9kV ACSR/AW-OC Aerial Insulated Cables
ACSR/AW-TR/OC
22.9kV Aluminum Conductor Aluminum Clad Steel Reinforced Outdoor XLPE Insulated Wire
Aerial Insulated Cables with voltages from 6.6kV - 22.9kV of ACSR-OC, ACSR/AW-OC, ACSR/AW-TR/OC.The products primarily used for the distribution of electrical energy under normal conditions of overhead (aerial) installations. The conductors must be installed on insulators and/or spacers adequate for the service voltage. The user may want to give consideration to the dielectric compatibility of the covering, insulator, spacer and etc.
ACSR-OC ACSR/AW-OC ACSR/AW-TR/OC Description
The conductors are stranded,circular compressed ACSR-OC or ACSR/AW-OC or ACSR/AW-TR/OC. The conductor screen is the extruded Semi-conducting conductor shield in Black. The Insulation is cross-linked polyethylene (XLPE) in Black with Weather or UV resistant. The Insulation rated for 90°C normal service temperature.
ACSR-OC ACSR/AW-OC ACSR/AW-TR/OC Specifications
- GB/T 14049 (Equal to IEC 60502-2) Aerial Insulated Cables For Rated Voltage of 10kV
- KS C 3138 ACSR outdoor cross-linked polyethylene insulated wires for 6.6 kV
- ES-6145-0021: Technical Standard of ACSR/AW-TR/OC for 23kV
ACSR/AW-OC ACSR/AW-TR/OC
ACSR/AW Polyvinyl Chloride Insulated Outdoor Weather-proof wire
USAGE
An electrically, physically, and chemically outstanding cable made for pad-mounted use from a 22.9kV-y multiple grounding system.
ACSR/AW-OC STRUCTURE
Seal wire : Aluminum-sheathed stranded wire (AW)
Conductor : Standard aluminum cable
Interior semi-conductor layer : Black semi-conductor thermosetting compound
Insulator : weather resistant cross-linked polyethylene (black)
ACSR/AW-TR/OC STRUCTURE
Seal wire : Aluminum-sheathed stranded wire (AW)
Conductor : Standard aluminum cable
Interior semi-conductor layer : Black semi-conductor thermosetting compound
Insulator : Weather-resistant cross-linked polyethylene (natural color)
Sheath : Black semi-conductor thermosetting compound (inner tracking)
6.6kV ACSR-OC Aerial Insulated Cables
| Size (mm2) |
No. and Dia. of Wires |
Conductor Diameter | Insulation Thickness | Cable Diameter | Rated Strength |
Weight | |
| AL | St | ||||||
| No. | No. /mm | mm | mm | mm | kgf | kg/km | |
| 6.6 kV ACSR-OC/XLPE | |||||||
| 32 | 6/SB | 1/2.6 | 7.2 | 2.0 | 11.2 | 1090 | 185 |
| 58 | 6/SB | 1/3.5 | 9.7 | 2.5 | 14.7 | 1900 | 325 |
| 95 | 6/SB | 1/3.5 | 12.0 | 2.5 | 17.0 | 2360 | 455 |
| Size (mm2) |
No. and Dia. of wires |
Conductor Diameter | Insulation Thickness | Cable Diameter | Rated Strength |
Weight | |
| AL | St | ||||||
| No. | No. /mm | mm | mm | mm | kgf | kg/km | |
| 22.9 kV ACSR-OC/XLPE | |||||||
| 32 | 6/SB | 1/2.6 | 7.2 | 3.0 | 13.2 | 1090 | 215 |
| 58 | 6/SB | 1/3.5 | 9.7 | 3.0 | 15.7 | 1900 | 340 |
| 95 | 6/SB | 1/3.5 | 12.0 | 3.5 | 19.0 | 2360 | 540 |
| 160 | 18/SB | 1/3.2 | 15.4 | 4.0 | 23.4 | 3080 | 740 |
6.6kV ACSR/AW-OC Aerial Insulated Cables
| Size (mm2) |
No. and Dia. of Wires |
Conductor Diameter | Insulation Thickness | Cable Diameter | Rated Strength |
Weight | |
| AL | St | ||||||
| No. | No. /mm | mm | mm | mm | kgf | kg/km | |
| 6.6 kV ACSR/AW-OC/XLPE | |||||||
| 32 | 6/SB | 1/2.6 | 7.2 | 2.0 | 11.2 | 1090 | 180 |
| 58 | 6/SB | 1/3.5 | 9.7 | 2.5 | 14.7 | 1900 | 315 |
| 95 | 6/SB | 1/3.5 | 12.0 | 2.5 | 17.0 | 2360 | 445 |
| Size (mm2) |
No. and Dia. of Wires |
Conductor Diameter | Insulation Thickness | Cable Diameter | Rated Strength |
Weight | |
| AL | St | ||||||
| No. | No. /mm | mm | mm | mm | kgf | kg/km | |
| 22.9 kV ACSR/AW-OC/XLPE | |||||||
| 32 | 6/SB | 1/2.6 | 7.2 | 3.0 | 13.2 | 1090 | 210 |
| 58 | 6/SB | 1/3.5 | 9.7 | 3.0 | 15.7 | 1900 | 330 |
| 95 | 6/SB | 1/3.5 | 12.0 | 3.5 | 19.0 | 2360 | 530 |
| 160 | 18/SB | 1/3.2 | 15.4 | 4.0 | 23.4 | 3080 | 730 |
| 240 | 18/SB | 1/4.0 | 18.9 | 4.0 | 27.0 | 4500 | 1040 |
22.9kV Aluminum Conductor Aluminum Clad Steel Reinforced Outdoor XLPE Insulated Wire
| Nominal Sectional Area |
Conductor | Insulation Thickness |
Overall Diameter |
Max. Conductor Resistance at 20℃ |
Min. Insulation Resistance at 20℃ |
Test Voltage |
Min. Tensile Load |
Approx. Weight |
Standard Length |
||
| Number & Diameter of Wire |
Number & Diameter of Wire |
Outer Diameter |
|||||||||
| mm2 | mm | mm | mm | mm | mm | Ω/km | Ω/km | kVi | kN(kgf) | kg/km | m |
| 58 | 6/SB | 1/3.5 | 9.7 | 3 | 15.7 | 0.484 | 1,500 | 25 | 1,900 | 360 | 600 |
| 95 | 6/SB | 1/3.5 | 12 | 3.5 | 19 | 0.302 | 1,500 | 25 | 2,360 | 520 | 600 |
| 160 | 18/SB | 1/3.2 | 15.4 | 4 | 23.4 | 0.183 | 1,500 | 25 | 3,080 | 750 | 600 |
| 240 | 18/SB | 1/4.0 | 18.9 | 4 | 27 | 0.123 | 1,000 | ||||
