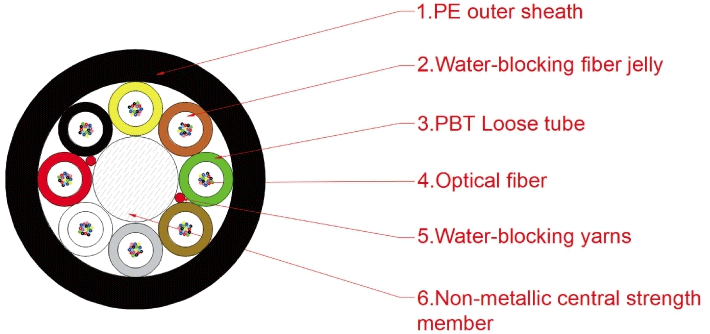

GCYFXTY Air-blown Micro Optical Fiber Cable 2-288core

GCYFXTY Air-blown Micro Optical Fiber Cable 2-288core

Specification Application: Applicable for construction of FTTX and re-construction of old areas. Applicable for extension of metropolitan area network. Applicabl
Specification
Application: Applicable for construction of FTTX and re-construction of old areas. Applicable for extension of metropolitan area network.
Applicable for express-way and private network.
Applicable for new trunk line construction and online extension.

Characteristics
• Small overall diameter, lightweight, moderate hardness, suitable for air-blow installation.
• Non- metallic structure, no need for grounding.
• Effective use of duct resources with high fiber density.
• Convenient to splice and construct with easy branching.
• Convenient expansion reduces the initial investment of operators.
• Co-construction and sharing with the existing duct resources of silicon tubes that are available.

Parameters
Cable type Fiber count Cable O.D(mm) Cable weight (Kg/KM) Tension allowed(N) Crush resistance(N) Bending radius
Long term Short term Long term Short term Static Dynamic
GYCFXTY 2-12 3.5 11 150 450 10D 20D
GYCFXTY 14- 24 4.1 14 150 450 10D 20D
GYCFTY 2- 72 5.0 22 150 450 10D 20D
GYCFTY 74- 96 5.9 33 150 450 10D 20D
GYCFTY 98- 120 7.0 43 150 450 10D 20D
GYCFTY 122- 144 7.7 52 150 450 10D 20D
GYCFTY 146- 216 7.9 52 150 450 10D 20D
GYCFTY 218-288 9.0 72 150 450 10D 20D
Note: △ 0.15 times the cable weight, optical fiber strain ≤ 0.1% ; O 0.5 times the cable weight, optical fiber strain ≤ 0.3%
