Copper Medium Voltage Power Cables Application
For power station and switchgear as well as station because of small bending radius in confined spaces indoors. As underground because of light weight where installation conditions are difficult.
Copper Medium Voltage Power Cables Special Features on Request
- Oil Resistance
- UV Resistance
- Flame Retardant Cat. A, B, C
- Flame Retardant Non Category
- Heat Resistance
- Anti Termite
- Anti Rodent
- Low Smoke Zero Halogen
Copper Medium Voltage Power Cables Types
Rated Voltage 1.8/3.0 - 18/30 kV| XLPE Insulation PVC Sheath |
XLPE Insulation PE Sheath |
Cross Section | |
| Twisted Cables 2-4 cores | NF2XSY( Cu / XLPE / CWS / PVC ) (Copper Conductor, XLPE Insulated, Copper Wire Screen, PVC Sheathed) |
NF2XS2Y( Cu / XLPE / CWS / PE ) (Copper Conductor, XLPE Insulated, Copper Wire Screen, PE Sheathed) |
up to 18/30 kV: 35-300 |
| 2-3 cores | NF2XSY-T( Cu / XLPE / CWS / PVC ) (Copper Conductor, XLPE Insulated, Copper Wire Screen, PVC Sheathed with Galvanized Steel Support Messenger) |
NF2XS2Y-T( Cu / XLPE / CWS / PE ) (Copper Conductor, XLPE Insulated, Copper Wire Screen, PE Sheathed with Galvanized Steel Support Messenger) |
up to18/30 kV: (50-150)+50 |
| Single Core + copper tape screen | N2XSY( Cu / XLPE / CTS / PVC ) (Copper Conductor, XLPE Insulated, Copper Tape Screen, PVC Sheathed) |
N2XS2Y( Cu / XLPE / CTS / PE ) (Copper Conductor, XLPE Insulated, Copper Tape Screen, PE Sheathed) |
3.6/6 kV:25-800 6/10 kV: 25-800 8.7/15 kV: 25-800 12/20 kV: 35-800 18/30 kV: 50-800 |
| + copper wire screen | N2XCY( Cu / XLPE / CWS / PVC ) (Copper Conductor, XLPE Insulated, Copper Wire Screen, PVC Sheathed) |
N2XC2Y( Cu / XLPE / CWS / PE ) (Copper Conductor, XLPE Insulated, Copper Wire Screen, PE Sheathed) |
3.6/6 kV:25-800 6/10 kV: 25-800 8.7/15 kV: 25-800 12/20 kV: 35-800 18/30 kV: 50-800 |
| + aluminium tape armor | N2XSB(AL)Y( Cu / XLPE / CTS / PVC / ATA/ PVC ) (Copper Conductor, XLPE Insulated, Copper Tape Screen, Aluminium Tape Armor, PVC Sheathed) |
N2XSB(AL)2Y( Cu / XLPE / CTS / PVC / ATA/ PE ) (Copper Conductor, XLPE Insulated, Copper Tape Screen, Aluminium Tape Armor, PE Sheathed) |
3.6/6 kV:25-800 6/10 kV: 25-800 8.7/15 kV: 25-800 12/20 kV: 35-800 18/30 kV: 50-800 |
| + aluminium wire armor | N2XSR(AL)Y( Cu / XLPE / CTS / PVC / AWA/ PVC ) (Copper Conductor, XLPE Insulated, Copper Tape Screen, Aluminium Wire Armor, PVC Sheathed) |
N2XSR(AL)2Y( Cu / XLPE / CTS / PVC / AWA/ PE ) (Copper Conductor, XLPE Insulated, Copper Tape Screen, Aluminium Wire Armor, PE Sheathed) |
3.6/6 kV:25-800 6/10 kV: 25-800 8.7/15 kV: 25-800 12/20 kV: 35-800 18/30 kV: 50-800 |
| Three Cores with individual copper tape screen | N2XSEY( Cu / XLPE / CTS / PVC ) (Copper Conductor, XLPE Insulated, Copper Tape Screen, PVC Sheathed) |
N2XSE2Y( Cu / XLPE / CTS / PE ) (Copper Conductor, XLPE Insulated, Copper Tape Screen, PE Sheathed) |
3.6/6 kV:25-300 6/10 kV: 25-300 8.7/15 kV: 25-300 12/20 kV: 35-300 18/30 kV: 50-300 |

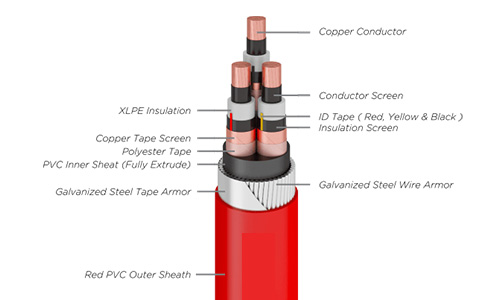

| + steel round wire armor | N2XSERY( Cu / XLPE / CTS / PVC / SWA/ PVC ) (Copper Conductor, XLPE Insulated, Copper Tape Screen, Galvanized Steel WireArmor, PVC Sheathed) |
N2XSER2Y( Cu / XLPE / CTS / PVC / SWA/ PE ) (Copper Conductor, XLPE Insulated, Copper Tape Screen, Galvanized Steel WireArmor, PE Sheathed) |
3.6/6 kV:25-300 6/10 kV: 25-300 8.7/15 kV: 25-300 12/20 kV: 35-300 18/30 kV: 50-300 |
| + steel flat wire armor | N2XSEFGbY( Cu / XLPE / CTS / PVC / SFWA/ PVC ) (Copper Conductor, XLPE Insulated, Copper Tape Screen, Galvanized Steel Flat WireArmor, PVC Sheathed) |
N2XSEFGb2Y( Cu / XLPE / CTS / PVC / SFWA/ PE ) (Copper Conductor, XLPE Insulated, Copper Tape Screen, Galvanized Steel Flat WireArmor, PE Sheathed) |
3.6/6 kV:25-300 6/10 kV: 25-300 8.7/15 kV: 25-300 12/20 kV: 35-300 18/30 kV: 50-300 |
| + double steel tape armor | N2XSEBY( Cu / XLPE / CTS / PVC / STA/ PVC ) (Copper Conductor, XLPE Insulated, Copper Tape Screen, Galvanized Steel TapeArmor, PVC Sheathed) |
N2XSEB2Y( Cu / XLPE / CTS / PVC / STA/ PE ) (Copper Conductor, XLPE Insulated, Copper Tape Screen, Galvanized Steel TapeArmor, PE Sheathed) |
3.6/6 kV:25-300 6/10 kV: 25-300 8.7/15 kV: 25-300 12/20 kV: 35-300 18/30 kV: 50-300 |
