Fig-8 Self-Supporting Optical Fiber Cable
Description
•Protecting the primary coated optical fibers with loose tube.

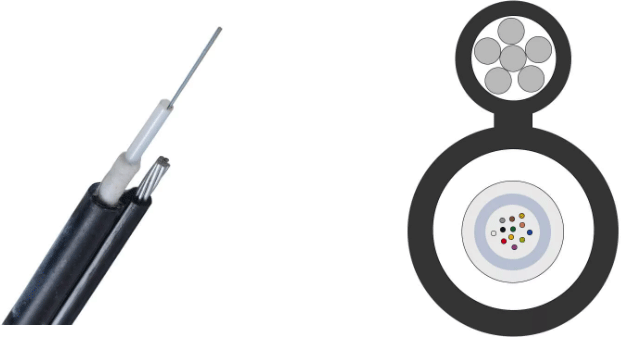

•With stranded steel wire messenger, showing its cross section as figue-8 shape.
Characteristics
•Easy installation with stranded steel wire self-supporting, cut down the installation cost.
•Water- resistance for the whole cross-section by filling water-blocking gel in every production process.
•Stable control of optical fiber excess length.
•The additional loss of optical fiber is less than 0.02dB/Km and no dispersion values variation after cabled.
•Excellent environmental performance with applicable temperature range from -40°C to +70°C
Mechanical characteristics:
Figure 8 Cable & Specifications
As a self-supporting aerial fiber cable, figure 8 fiber optic cable is a kind of fiber optic cable that is suitable for long-distance communication and inter-office communication. With steel stranded wire as the self-supporting part of the fiber optic cable, it can meet the very high tensile strength during installation and operation.
Figure 8 shape and steel wire messenger also save the installation costs. This cable is a small size figure 8 fiber optic cable. With advantages of light, flexible and easy to construction, it's also one of the alternative cable for FTTH cabling network.
On-Demand Materials & Specifications for Figure 8 Fiber Optic Cable
No matter what types or specifications of figure 8 fiber cables you want, based on our extensive experience, we can manufacture it.
Custom With Experts
Description
•Protecting the primary coated optical fibers with loose tube.
•With stranded steel wire messenger, showing its cross section as figue-8 shape.
Characteristics
•Easy installation with stranded steel wire self-supporting, cut down the installation cost.
•Water- resistance for the whole cross-section by filling water-blocking gel in every production process.
•Stable control of optical fiber excess length.
•The additional loss of optical fiber is less than 0.02dB/Km and no dispersion values variation after cabled.
•Excellent environmental performance with applicable temperature range from -40°C to +70°C
Mechanical characteristics:
| Fiber Count | Tubes | Fillers | Fiber Count |
Outside Diameter (mm) |
Cable Weight (kg/km) | Tensile Load | Crush Load | ||
| Short Term | Long Term | Short Term | Long Term | ||||||
| (N) | (N) | (N) | (N) | ||||||
| 4C | 1 | 4 | 4 | 5.6*9.0*16.6 | 161 | 1500 | 600 | 1000 | 300 |
| 6C | 1 | 4 | 6 | 5.6*9.0*16.6 | 161 | 1500 | 600 | 1000 | 300 |
| 8C | 2 | 3 | 4 | 5.6*9.0*16.6 | 161 | 1500 | 600 | 1000 | 300 |
| 12C | 2 | 3 | 6 | 5.6*9.0*16.6 | 161 | 1500 | 600 | 1000 | 300 |
| 24C | 4 | 1 | 6 | 5.6*9.0*16.6 | 161 | 1500 | 600 | 1000 | 300 |
| 36C | 6 | 0 | 6 | 5.6*9.3*16.9 | 165 | 1500 | 600 | 1000 | 300 |
| 48C | 4 | 1 | 12 | 5.6*10.2*17.8 | 179 | 1500 | 600 | 1000 | 300 |
| 72C | 6 | 0 | 12 | 5.6*10.8*18.4 | 199 | 1500 | 600 | 1000 | 300 |
| 96C | 8 | 0 | 12 | 5.6*12.3*19.9 | 220 | 1500 | 600 | 1000 | 300 |
| 144C | 12 | 0 | 12 | 5.6*15.2*22.8 | 286 | 1500 | 600 | 1000 | 300 |
Figure 8 Cable & Specifications
As a self-supporting aerial fiber cable, figure 8 fiber optic cable is a kind of fiber optic cable that is suitable for long-distance communication and inter-office communication. With steel stranded wire as the self-supporting part of the fiber optic cable, it can meet the very high tensile strength during installation and operation.
Figure 8 shape and steel wire messenger also save the installation costs. This cable is a small size figure 8 fiber optic cable. With advantages of light, flexible and easy to construction, it's also one of the alternative cable for FTTH cabling network.
 |
Layer Stranded Light-Armored Figure 8 Loose Tube Cable ❶ Stranded Wire ❷ PE Sheath ❸ Optical Fiber ❹ Tube Filling Compound ❺ Loose Tube ❻ Central Strength Member ❼ Cable Filling Compound ❽ APL Aluminum Tape ❾ PE Sheath |
| Fiber Count | Loose Tubes | Fillers | Weight (kg/km) |
Crush Long/Short Term (N/100mm) | Tensile Long/Short Term (N/100mm) | Bending Radius Static/Dynamic (mm) |
|---|---|---|---|---|---|---|
| 2~6 | 1 | 4 | 158 | 300/1000 |
According to the Diameter of Stranded Wire |
10D/20D |
| 8~12 | 2 | 3 | 158 | |||
| 14~18 | 3 | 2 | 158 | |||
| 20~24 | 4 | 1 | 158 | |||
| 26~30 | 5 | 0 | 158 | |||
| 32~36 | 6 | 0 | 167 | |||
| 38~48 | 4 | 1 | 172 | |||
| 50~60 | 5 | 0 | 172 |
 |
Uni-Tube Non-Armored Figure 8 Cable ❶ Stranded Wire ❷ PE Sheath ❸ Optical Fiber ❹ Tube Filling Compound ❺ Uni Tube ❻ Cable Filling Compound ❼ Water-blocking Material ❽ PE Sheath |
| Fiber Count | Diameter (±0.5mm) |
Cable Weight (kg/km) | Crush Long/Short Term (N/100mm) | Bending Radius Static/Dynamic (mm) | Tensile Long/Short Term (N/100mm) |
|---|---|---|---|---|---|
| 2~12 | 7.5 | 60 ± 10 | 300/1000 | 10D/20D | According to the Diameter of Stranded Wire |
| 12~24 | 8.5 | 70 ± 10 | 300/1000 | 10D/20D |
On-Demand Materials & Specifications for Figure 8 Fiber Optic Cable
No matter what types or specifications of figure 8 fiber cables you want, based on our extensive experience, we can manufacture it.
Custom With Experts
