Mini Figure 8 Fiber Optic Cable Central Loose Tube Self-Supporting Aerial Cables - GYXTC8Y

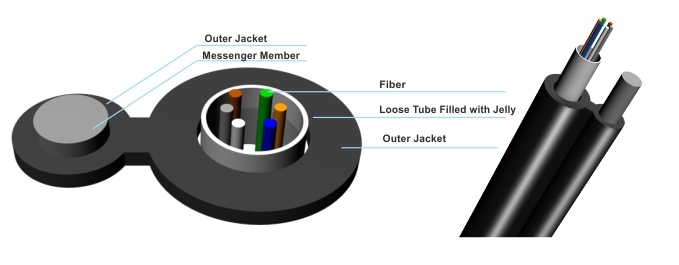

The GYXTC8Y Mini Fig 8 FOC cable core is composed of loose tubes each with up to 2-24 fibers. The mental strength member is made up of stranded wires as the supporting part are completed with a polyethylene(PE) sheath to be figure 8 structure. High strength loose tube that is hydrolysis resistant. GYXTC8Y is an ideal self-supporting outdoor cable,used for aerial installation.
• Small cable diameter, figure 8 structure
• Self-supporting stranded wires, easily to install
• Excellent mechanical and environmental performance
• Low dispersion and attenuation
• High strength loose tube that is hydrolysis resistant
• Medium Density Polyethylene Jacket, low friction installation Application
Outdoor aerial application
• Used for long-haul and LAN communication
• Subscriber network systems
• Junction communication systems
• CATV & Computer networks system
• Indoor wiring, plumbing.
Technical Specification
| Parameter | Unit | Life Cycle | 2F | 4F | 6F | 8F | 12F | 24F |
| Minimum Tensile Strength |
N |
short term | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
| long term | 200 | 200 | 200 | 200 | 200 | 200 | ||
| Minimum Crush Load |
N/100mm |
short term | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
| long term | 200 | 200 | 200 | 200 | 200 | 200 | ||
| Minimum Bending Radius |
MM |
short term | 20D | 20D | 20D | 20D | 20D | 20D |
| long term | 10D | 10D | 10D | 10D | 10D | 10D | ||
| Storage Temperature |
℃ |
-40 to +60 |
||||||
Optical Characteristic
| Fiber Count | Part Number | Application | Cable Diameter (mm) | Weight (kg/km) |
| Single-mode 9/125 OS2 | ||||
| 2F | GYXTC8Y-OS2-2F | Aerial | 4.0*7.0 | 80 |
| 4F | GYXTC8Y-OS2-4F | Aerial | 4.0*7.0 | 80 |
| 6F | GYXTC8Y-OS2-6F | Aerial | 4.0*7.0 | 80 |
| 8F | GYXTC8Y-OS2-8F | Aerial | 4.0*7.0 | 80 |
| 12F | GYXTC8Y-OS2-12F | Aerial | 4.0*7.0 | 80 |
| 24F | GYXTC8Y-OS2-24F | Aerial | 4.0*7.0 | 80 |
| Multi-mode 62.5/125 OM1 | ||||
| 2F | GYXTC8Y-OM1-2F | Aerial | 4.0*7.0 | 80 |
| 4F | GYXTC8Y-OM1-4F | Aerial | 4.0*7.0 | 80 |
| 6F | GYXTC8Y-OM1-6F | Aerial | 4.0*7.0 | 80 |
| 8F | GYXTC8Y-OM1-8F | Aerial | 4.0*7.0 | 80 |
| 12F | GYXTC8Y-OM1- 12F | Aerial | 4.0*7.0 | 80 |
| 24F | GYXTC8Y-OM1-24F | Aerial | 4.0*7.0 | 80 |
| Multi-mode 50/125M2 | ||||
| 2F | GYXTC8Y-OM2-2F | Aerial | 4.0*7.0 | 80 |
| 4F | GYXTC8Y-OM2-4F | Aerial | 4.0*7.0 | 80 |
| 6F | GYXTC8Y-OM2-6F | Aerial | 4.0*7.0 | 80 |
| 8F | GYXTC8Y-OM2-8F | Aerial | 4.0*7.0 | 80 |
| 12F | GYXTC8Y-OM2-12F | Aerial | 4.0*7.0 | 80 |
| 24F | GYXTC8Y-OM2-24F | Aerial | 4.0*7.0 | 80 |
