Stranded Loose Tube Optical Fiber Cable GYFTA/GYTA (2-576 cores)
| Installation: |
Direct- burial. |

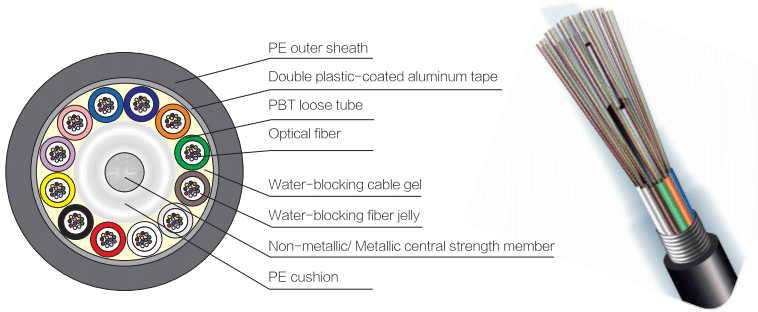

| Structural features: |
Non-metallic (FRP)/ Metallic (phosphated steel wire) central strength member, double plastic- coated aluminum tape- PE bonded inner sheath, double plastic- coated corrugated steel tape- PE bonded outer sheath. |
| Performance characteristics: |
Excellent water- resistant performance with double plastic- coated aluminum tape- PE bonded inner sheath, double armored protective layers provide excellent performance of crush resistance and effective rodent prevention. |
| Application: |
Long- haul communication, interoffice communication, especially suitable for application with high requirements of anti-moisture, anti-rodent and so on |
Technical parameters
| Fiber count |
Cable O.D (mm) |
Cable weight (kg/km) |
Minimum bending radius |
Tension allowed(N) |
Crush resistance(N) |
| Static |
Dynamic |
Short term |
Long term |
Short term |
Long term |
| 2-30 |
9.8 |
95 |
10times O.D |
20 times O.D |
1500 |
600 |
1000 |
300 |
| 32-36 |
10.3 |
115 |
| 38-60 |
10.7 |
115 |
| 62-72 |
11.3 |
140 |
| 74-96 |
12.9 |
175 |
| 98-120 |
14.4 |
210 |
| 122-144 |
15.8 |
245 |
| 146-216 |
16.3 |
260 |
| 218-240 |
19.5 |
345 |
| 242-288 |
21.7 |
415 |
| 290-432 |
22.1 |
435 |
| 576 |
18.5 |
365 |
