Stranded Loose Tube Non-Metallic Flame Retardant Optical Fiber Cable GYFTZY (2-288cores)
| Installation: | Aerial, duct, weak electrical areas. |
|---|---|

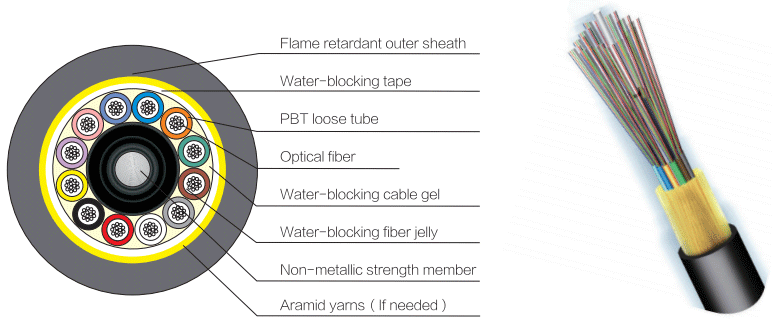

| Structural features: | Non-metallic strength member, may be reinforced with peripheral strength member like fiberglass or amid yams, flame retardant outer sheath |
| Performance characteristics: | Non-metallic structure, low smoke halogen free flame retardant sheath, no extension of flame and no toxic gas generated when burning, excellent performance of anti-electromagnetic, thunder and lightning-proof, electrostatic prevention |
| Application: | Long-haul communication, interoffice communication especially applicable for electric power system, thunder and lightning and electromagnetic interference stricken area, and can be used as drop cable. |
Technical parameters
| Fiber count | Cable O.D (mm) | Cable weight (kg/km) | Minimum bending radius | Tension allowed(N) | Crush resistance(N) | |||
| Static | Dynamic | Short term | Long term | Short term | Long term | |||
| 2-36 | 10.4 | 120 | 10 times O.D |
20 times O.D |
1500 | 600 | 1000 | 300 |
| 38-72 | 11.5 | 140 | 1500 | 600 | 1000 | 300 | ||
| 74-96 | 12.9 | 175 | 1500 | 600 | 1000 | 300 | ||
| 98-120 | 14.4 | 215 | 1500 | 600 | 1000 | 300 | ||
| 122-144 | 15.8 | 255 | 1500 | 600 | 1000 | 300 | ||
| 144-216 | 16.9 | 320 | 1500 | 600 | 1000 | 300 | ||
| 218-240 | 19.3 | 345 | 1500 | 600 | 1000 | 300 | ||
| 242-288 | 21.5 | 410 | 1500 | 600 | 1000 | 300 | ||
