Application

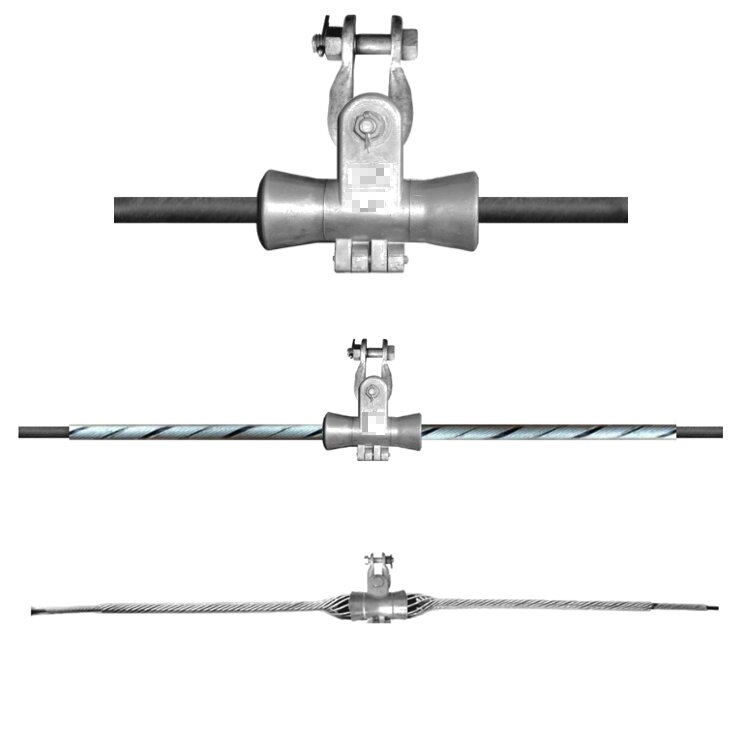

The Preformed Suspension Clamp is the connecting hardware of ADSS cable hang in transmission line pole (tower). It can reduce static stress at the support point and increase ant-vibration ability of ADSS cables, and cushioned against the dynamic stress of aeolian vibration. as well as ensure that the cable bending will not exceed the permissible values, make the cable does not produce bending stress, so that the fiber optic don't produce extra loss in the cables.
Structure and Material
Housing--- It is made of corrosion resistance cast aluminum alloy, which is stable, better anticorrosive in aero and mechanical performance.
Rubber Insert--- It consists of high-class rubber and center reinforcing assembly, rubber insert is with ozone resistance, chemical resistances, weather resistance performance, with high and low temperature performance, high strength and elasticity, small compression deformation.
Bolt, Flat Washer, Spring Washer, Nut, Split Lock, Shackle--- Standard Parts of Electric Power.
Inner Preformed Rods---According to the mechanical performance and chemical composition to custom-made the aluminum alloy wire, with high tensile strength, hardness strength and excellent elasticity and strong rust resistance, it can be used for a long time in the bad weather condition.
Outer Preformed Rods--- The same as the Inner Preformed Rods.
Direction
1. It is designed to connect straight or elevation angel less than 25° pole (tower) and ADSS cables, The special specification: one unit per pole.
2. Select the specification model for Suspension Clamp is corresponding to the appropriate Cable Diameter, Load Weight or span length.
The Preformed Suspension Clamp is the connecting hardware of ADSS cable hang in transmission line pole (tower). It can reduce static stress at the support point and increase ant-vibration ability of ADSS cables, and cushioned against the dynamic stress of aeolian vibration. as well as ensure that the cable bending will not exceed the permissible values, make the cable does not produce bending stress, so that the fiber optic don't produce extra loss in the cables.
Structure and Material
Housing--- It is made of corrosion resistance cast aluminum alloy, which is stable, better anticorrosive in aero and mechanical performance.
Rubber Insert--- It consists of high-class rubber and center reinforcing assembly, rubber insert is with ozone resistance, chemical resistances, weather resistance performance, with high and low temperature performance, high strength and elasticity, small compression deformation.
Bolt, Flat Washer, Spring Washer, Nut, Split Lock, Shackle--- Standard Parts of Electric Power.
Inner Preformed Rods---According to the mechanical performance and chemical composition to custom-made the aluminum alloy wire, with high tensile strength, hardness strength and excellent elasticity and strong rust resistance, it can be used for a long time in the bad weather condition.
Outer Preformed Rods--- The same as the Inner Preformed Rods.
Direction
1. It is designed to connect straight or elevation angel less than 25° pole (tower) and ADSS cables, The special specification: one unit per pole.
2. Select the specification model for Suspension Clamp is corresponding to the appropriate Cable Diameter, Load Weight or span length.
