ACSR Fox Conductor 35mm2

ACSR Fox Conductor 35mm2

Aluminum Conductor Steel Reinforced ACSR Fox Conductor 35mm2 Code name: Fox Corss section area: 35mm2 Standard: BS 215 Part 2 Conductor Material: Aluminum and Steel

ACSR Fox Conductor 35mm2

ACSR Fox Conductor 35mm2 Application

Aluminum Conductors, Steel-Reinforced (ACSR) is a concentric-lay-stranded conductor consisting of galvanized steel central core with one or more layers of hard drawn stranded aluminum wires laid helically over the steel core. Steel core wires are protected from corrosion by galvanization.Additional corrosion protection is available through the application of grease.

Aluminum Conductor Steel Reinforced is used as bare overhead transmission cable and as primary and secondary distribution cable. ACSR offers optimal strength for line design. Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity.

ACSR Fox Conductor 35mm2 Features

With simple structure, the aluminum conductor steel reinforced is easy to set up and maintain, with low cost and high transmission capacity. It is advantageous for this ACSR to be put up across a valley or river or under other various special geographic conditions. The ACSR has advantages of sound electrical conductivity, high mechanical strength, high tensile strength, etc, and the pole distance can be lengthened. It is used for power transmission lines with various voltage levels and plays an important role in the electricity transmission field.

ACSR Fox Conductor 35mm2 Construction

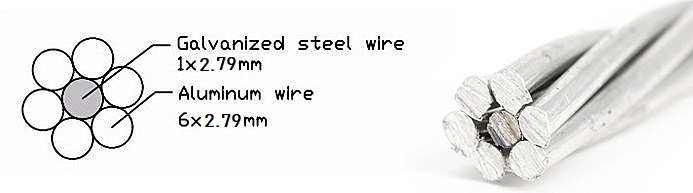

ACSR fox conductor strands 6 aluminums and 1 steel. But their diameter is the same, and they are 2.79 mm. We can know the overall diameter is 8.37 mm. From the standard, we can know the nominal aluminum area of acsr fox conductor is 35 mm2. When you want to buy acsr fox conductor, you should pay attention to this point. It isn’t suitable for the standard, and it is reasonable. The total sectional area is 42.77 mm2. After the cabling, the total linear mass is 149kg/km. Through the test, the calculated breaking load should be 1320daN. At the 20℃, calculate D.C. resistance should be 0.7822.

ACSR Fox Conductor 35mm2



ACSR Fox Conductor 35mm2 Parameter

Code name acsr fox conductor
Nominal aluminum area mm 2 35
Stranding structure Al. No. 6
Al. Dia. 2.79
St. No. 1
St. Dia 2.79
Sectional area of aluminum mm 2 36.66
Total sectional area mm 2 42.77
Overall diameter mm 8.37
Total Weight kg/km 149
Calculated breaking load daN 1320
Calculate D.C resistance at 20 ℃ Ω/km 0.7822
