GJYXFCH/GJYXCH Outdoor FTTH Drop Cable With LSZH Jacket

GJYXFCH/GJYXCH Self-supporting Aerial Outdoor FTTH Drop Cable LSZH

Fiber Type: G652D; G655C; 657A1; 50/125; 62.5/125; OM3; OM4 As Options; Fiber Count: 1-12 Cores; Messenger: 0.5, 1.0, 1.2mm Optional; Strength Member: Steel Wire, FRP, KFRP; Jacket: PVC/LSZH;
Self-supporting Aerial Flat Drop Cable GJYXFCH/GJYXCH Outdoor FTTH Drop Cable With LSZH Jacket

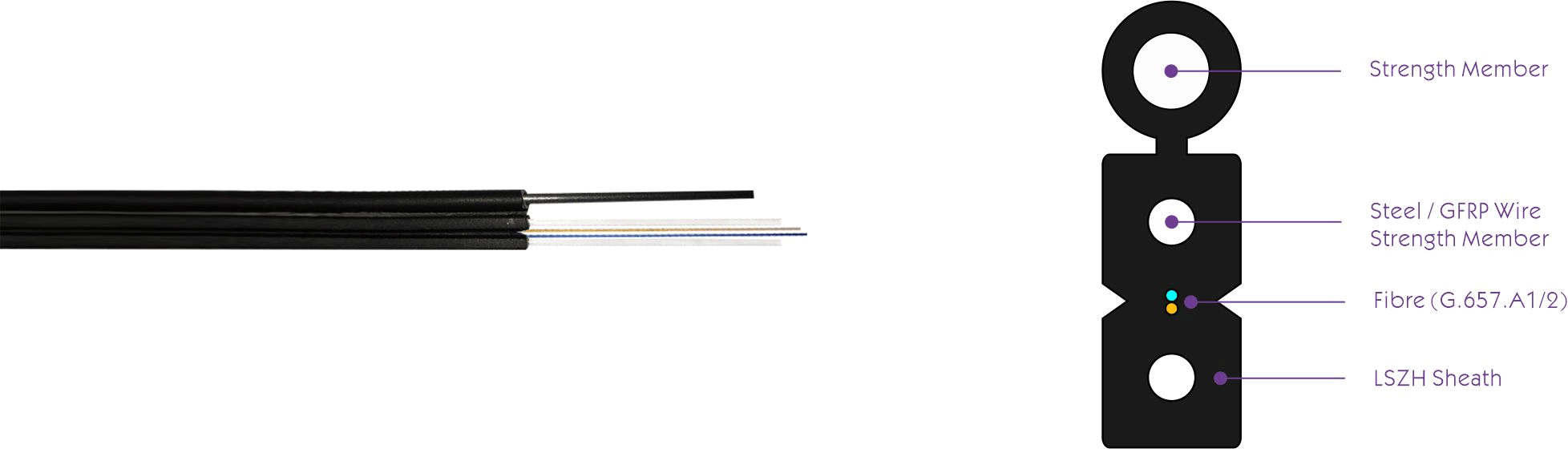

FTTH outdoor fiber optic cable are used inside buildings or houses. In the center of the cable is the optical communication unit, with the two parallel non-metical enhanced FRP/Metal/KFRP as the strength member, and surrounded with the LSZH jacket.
The typical self-supporting bow-type drop fiber optic cable consists of GJYXFCH/GJYXCH cable and an additional strength member with stranded steel wire (The Diameter is 0.33mm*7).

Application
●  Internal FTTH applications horizontal and riser.
●  Clipping to surfaces including skirting boards.
●  Short distance external use with black LSZH jacket.

Main Features
1. GJYXCH Bow Type Drop Cable adopts the slight bending resistant fiber B6, ensure data transmission.
2. Small size, light weight, simple structure, easy to strip for its special groove design and no need any tool, easy to install.
3. Two parallel phosphated steel wires as strength members have excellent crush and tensile resistance.
4. Self-supporting steel wire strength component withstand most part of tension.
5. Low smoke, non-halogen flame retardant outer sheath material.
Temperature Range: Operating Temperature: -20~+ 50℃.

Standard: Comply with standard YD/T 1997-2009, ICEA-596, GR-409, IEC 60794.

Technical parameters
Fiber Count PartNumber StrengthMember CableDiameter Weight(kg/km)
(mm)
Single mode 9/125 OS2
1F GJYXFCH-SM-FRP-1FL FRP (2.0±0.2)×(5.0±0.2) 20
2F GJYXFCH-SM-FRP-2FL FRP (2.0±0.2)×(5.0±0.2) 20
FiberCount PartNumber StrengthMember CableDiameter Weight(kg/km)
(mm)
Single mode 9/125 OS2
1F GJYXFCH-SM-MSM-1FL Metal (2.0±0.2)×(5.0±0.2) 20
2F GJYXFCH-SM-MSM-2FL Metal (2.0±0.2)×(5.0±0.2) 20
FiberCount PartNumber StrengthMember CableDiameter Weight(kg/km)
(mm)
Single mode 9/125 OS2
1F GJYXFCH-SM-KFRP-1FL KFRP (2.0±0.2)×(5.0±0.2) 20
2F GJYXFCH-SM-KFRP-2FL KFRP (2.0±0.2)×(5.0±0.2) 20
