Air-Blow Minicable GYCFXTY/GYCFTY
Description•Air- blow minicable is a small size central loose tube or stranded loose tube optical fiber cable, with non-metallic strength members, without armor, can be installed in mini duct by means of air-blow. Blow the silicon core minitube into subtube made of HOPE or PVC, then blow the minicable into minitubes by lot.
Characteristics
•Small overall diameter, light weight, moderate hardness, suitable for air-blow installation.
•Non-metallic structure, no need for grounding.
•Effective use of duct resources with high fiber density.
•Convenient to splice and construct with easy branching.
•Convenient expansion reduces the initial investment of operators and convenient expansion.
•Co-construction and sharing with the existing duct resources of silicon tubes that are available.

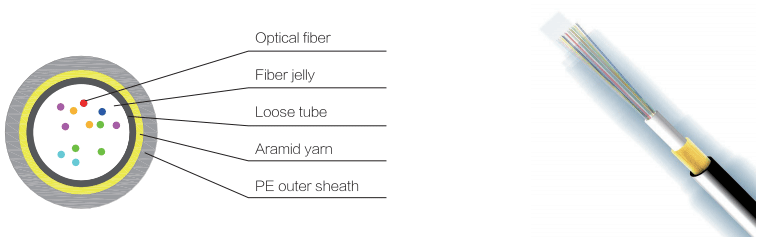

Air-Blow Minicable GYCFXTY (2-24cores)
Applicable for construction of FTTX and re-construction of old areas.
Applicable for extension of metropolitan area network.
Applicable for express-way and private network.
Applicable for new trunk line construction and online extension
Temperature performance
Storage temperature: -40°C 〜+70°C
Operation temperature: -30°C ~ +60°C
Installation temperature: -5°C ~ +50°C
Technical parameters
| Cable type | Fiber coun | Cable O.D (mm) | Cable weight (Kg/KM) | Tension allowed(N) | Crush resistance(N) | Bending radius | |||
| Long term | Short term | Long term Short term | Static | Dynamic | |||||
| GYCFXTY | 2-12 | 3.4 | 12.0 | △ | o | 150 | 450 | 10D | 20D |
| GYCFXTY | 14-24 | 4.2 | 16.0 | △ | o | 150 | 450 | 10D | 20D |
| GYCFTY | 2-60 | 5.0 | 25.0 | △ | o | 150 | 450 | 10D | 20D |
| GYCFTY | 62-72 | 5.5 | 32.0 | △ | o | 150 | 450 | 10D | 20D |
| GYCFTY | 74-96 | 6.5 | 42.0 | △ | o | 150 | 450 | 10D | 20D |
| GYCFTY | 98-144 | 8.3 | 75.0 | △ | o | 150 | 450 | 10D | 20D |
| GYCFTY | 146-288 | 9.2 | 105 | △ | o | 150 | 450 | 10D | 20D |
O 0.5times the weight of cable, optical fiber strain w 0.3%
