Single Jacket ADSS Cable Fiber Optic Cable

Single Jacket ADSS Cable 2-288 Core Single Mode 9/125 Fiber Optic Cable

Application: Self-support aerial installation; Fiber Type: ITU G652D,G657A,OM1,OM2,OM3,OM4; Fiber counts: 2-144 core is available; Span: 50M ~200M; Standard: IEC 60794-4、IEC 60793、TIA/EIA 598 A

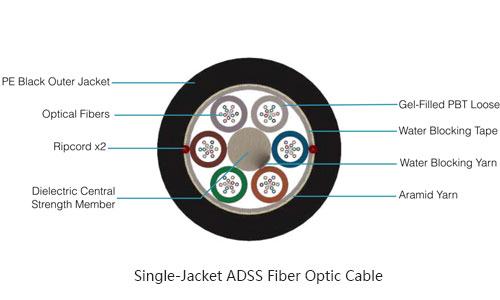

Single-jacket ADSS Cable Description

The single-jacket ADSS cable is designed for the typically shorter pole-to-pole span lengths of distribution and sub-transmission environments. With no inner polyethylene jacket, aramid yarn instead covers the core of buffer tubes. For the right application, the single-jacket design can provide a cost-effective option while also reducing the size and weight compared to a similar double-jacket cable. A single-jacket design can also reduce cable prep time for splicing with one less polyethylene jacket to remove.

Single Jacket ADSS Cable Gel-Filled Feature

  1. 1.Single Jacket ADSS Cable Gel-Filled is designed for self-supporting and duct applications for cable spans up to 1,050 feet, allowing an easy and cost-effective one-step installation using standard hardware and installation methods. Reduced weight design and smaller diameter allows the usage of smaller ducts.
  2. 2.Loose tubes are made of PBT which provide great mechanical properties under a wide range of conditions such as crush test and impact test, and are filled with water blocking gel.
  3. 3.PE single jacket with additives makes a resistant, durable and easy to strip cable, providing superior protection against UV radiation, fungus, abrasion and other environmental factors.
  4. 4.The SZ-stranded method for loose tubes and two ripcords ensure a quick and easy mid-span access.
  5. 5.Dielectric central strength member requires no bonding or grounding.
  6. 6.Aramid yarns have an excellent performance against high tension for direct-aerial installations, aerial to duct transitions and can be used for other applications that require added tensile performance such as long duct pulls. No messenger cable is required for installation, and no metallic components are used in ADSS cables.

Transmission Performance by Fiber Type

Fiber Type Single Mode
Waveoptics@Fiber Type G652.D G657.A1 G657.A2
Waveoptics@Fiber Code F T E
OFS@Fiber Type G652.D  -  -
OES@Fiber Code  1  -  -
Wavelength (nm) 1310/1550
Max.attn.(dB/km)(1) 0.36/0.25 0.36/0.25 0.35/0.25
Cable Marking Specifications G652.D G657.A1 G657.A2
Notes:
(1)Maximum attenuation after cabling process

ADSS Fiber Optic Cable Data Sheets

LIGHT-1%INSTALLATION SAG
SPAN(ft)(m) Fiber
Count
Nominal
Outer
Diameter
(mm)(in)
(±5%)
  Cable
Weight
(kg/km)
((b/kft)
(±10%)
Maximum
Rated Cable
Load (MRCL)
(N)(lbf)
Tension
Strength
( Unloaded)
(N)(lbf)
SAG-Loaded
(%)
Tension
Strength
Loaded
(N)(lbi)
Dielectric Central
Strength Member
Diameter(mm)(in)
(Without PE/with PE)
300  (91) 2-72 10.8  (0.43) 90  (60) 2,672  (600) 1,103  (248) 0.70 2,280(513) 2.6  (0.1)
96 11.9  (0.47) 109(74) 2,558(575) 1,336  (300) 0.80 2,447  (550) 2.6/3.7 (0.1 /0.15)
144 15.1  (0.59) 175(117) 3,938  (885) 2,143  (482) 0.80 3,664  (824) 3/6.9(0.12 /0.27)
192-216 15.8  (0.62) 193  (129) 4,235(952) 2,362  (531) 0.80 3,983  (895) 2.6  (0.1)
288 17.7  (0.70) 233(157) 4,551(1,023) 2,864(644) 0.90 4,337  (975) 3/4.5(0.12/0.18)
450(137) 2-72 10.8  (0.43) 91  (61) 3,131  (704) 1,561  (351) 0.80 2,937  (660) 2.6  (0.1)
96 12.0  (0.47) 114(76) 3,856(866) 1,950(438) 0.80 3,534(794) 2.6/3.7  (0.1/0.15)
144 15.3  (0.60) 183(123) 5,463 (1,228) 3,143  (707) 0.80 5,326(1,197) 3/6.9(0.12/0.27)
92-216 15.9  (0.63) 199(133) 5,733(1,288) 3,412  (767) 0.90 5,244(1,179) 2.6  (0.1)
288 17.8  (0.70) 241(162) 6,335 (1,424) 4,136 (930) 0.90 6,222(1,399) 3/4.5(0.12/0.18)
600(183) 2-72 11  (0.43) 97  (65) 4,510 (1,014) 2,260  (508) 0.80 4,101  (922) 2.6  (0.1)
96 12.1  (0.48) 118  (79) 5,154(1,158) 2,755(619) 0.80 4,847(1,090) 2.6/3.7 (0.1 /0.15)
144 15.4  (0.61) 190(128) 7,370(1,656) 4,429 (996) 0.90 6,709(1,508) 2.6/3.7  (0.1/0.15)
750(229) 2-72 11.1  (0.44) 100(68 5,429(1,220) 2,836(638) 0.80 5,039(1,133) 2.6  (0.1)
96 12.2  (0.48) 122  (82) 6,019(1,353) 3,439  (773) 0.80 5,942(1,336) 2.6/3.7  (0.1/0.15)
144 15.4  (0.61) 190(128) 7,370(1,656) 5,362(1,205) 1.10 6,951(1,563) 2.6/3.7  (0.1/0.15)
900  (274) 2-72 11.2(0.44) 105  (71) 6,808(1,530) 3,607  (811) 0.80 6,344(1,426) 2.6  (0.1)
96 12.3  (0.48) 126(85) 7,173(1,612) 4,336  (975) 0.90 6,835(1,537) 2.6/3.7  (0.1/0.15)
1,050  (320) 2-72 11.3  (0.44) 108(73) 7,574(1,702) 4,250  (955) 0.80 7,368(1,656) 2.6  (0.1)
96 12.4  (0.49) 129  (87) 7,750(1,742) 5,077 (1,141) 1.00 7,336(1,649) 2.6/3.7  (0.1/0.15)
MEDIUM-1%INSTALLATION SAG
SPAN  (ft)(m) Fiber
Count
Nominal
Outer
Diameter
(mm)(in)
(±5%)
Cable
Weight
(kg/km)
((b/kft)
(±10%)
Maximum
Rated Cable
Load    (MRCL)
(N)((bf)
Tension
Strength
(unloaded)
(N)((bf)
SAG-loaded
(%)
Tension
Strength
(loaded)
(N)(lbí)
Dielectric Central
Strength Member
Diameter (mm)(in)
(without PE/with PE)
300  (91) 2-72 10.8 (0.43) 91  (61) 3,131  (704) 1,115  (251) 2.80 2,656  (597) 2.6  (0.1)
96 11.9(0.47) 110  (74) 2,990  (672) 1,348(303) 2.80 2,869(645) 2.6/3.7(.1/0.15)
144 15.1 (0.59) 175(117 3,938  (885) 2,143  (482) 2.50 3,833  (862) 3/6.9(0.12/0.27)
192-216 15.8 (0.62) 193(129) 4,235(952) 2,362  (531) 2.50 4,010  (901) 2.6  (0.1)
288 17.7 (0.70) 234(157) 4,908(1,103) 2,876(646) 2.40 4,598(1,034) 3/4.5  (0.12/0.18)
450(137) 2-72 10.9 (0.43) 94(63) 4,051  (911) 1,621  (364) 2.80 3,756  (844) 2.6  (0.1)
96 12  (0.47) 114(77) 4,288  (964) 1,967(442) 2.80 4,061  (913) 2.6/3.7 (0.1/0.15
144 15.3 (0.60) 184(124) 5,845(1,314) 3,159  (710) 2.50 5,465(1,229) 3/6.9  (0.12/0.27)
192-216 15.9 (0.63) 199(133) 5,733(1,288) 3,412(767) 2.60 5,512(1,239) 2.6  (0.1)
288 17.8 (0.70) 241  (162) 6,335(1,424) 4,136(930) 2.60 6,121 (1,376) 3/4.5  (0.12/0.18)
600(183) 2-72 11.1 (0.44) 100(68) 5,429(1,220) 2,343(527) 2.80 5,109(1,149) 2.6  (0.1)
96 12.2 (0.48) 121  (81) 5,586(1,256) 2,819(634) 2.80 5,522(1,241) 2.6/3.7  (0.1/0.15)
144 15.4 (0.61) 189(127) 7,116(1,599) 4,415(992) 2.80 6,799 (1,528) 3/6.9  (0.12/0.27)
750  (229) 2-72 11.2 (0.44) 104  (70) 6,348(1,427) 2,936  (660) 2.80 6,170(1,387) 2.6  (0.1)
96 12.3 (0.48) 126(84) 6,884(1,547) 3,544  (797) 2.80 6,678(1,501) 2.6/3.7  (0.1/0.15)
900  (274) 2-72 11.4(0.45) 111  (74) 7,880  (1,771) 3,798  (854) 2.80 7,656(1,721) 2.6  (0.1)
96 12.4(0.49) 129  (87) 7,750(1,742) 4,443 (999) 3.20 7,474(1,680) 2.6/3.7  (0.1/0.15)
HEAVY -1%INSTALLATION SAG
SPAN((t)(m) Fiber
Count
Nominal
Outer
Diameter
(mm)(in)
(±5%)
Cable
Weight
(kg/km)
(lb/kft)
(±10%)
   Maximum
Rated Cable
Load     (MRCL)
  (N)(lbf)
   Tension
   Strength
 ( unloaded)
   (N)(lbf)
SAG-Loaded
(%)
Tension
Strength
( loaded)(N )
(lbf)
Dielectric Central
Strength     Member
Diameter(mm)(in)
Without   PE/with   PE)
300(91) 2-72 10.9(0.43) 94(63) 4,051(960) 1,158  (260) 4.00 3,929  (883) 2.6(0.1)
96 12.0 (0.47) 114(76) 4,288  (964) 1,405(316) 4.00 4,147 (932) 2.6/3.7  (0.11/0.15)
144 15.2 (0.60) 180(121) 5,082 (1,142 ) 2,206(496) 4.00 4,800(1,079) 3/6.9  (0.12/0.27)
192-216 15.9 (0.63) 198  (133) 5,358 (1,204 )2,426  (545) 4.00 4,955(1,114) 2.6  (0.1)
288 17.7 (0.70) 236  (159) 5,622 (1,263 )2,899  (652) 4.00 5,328 (1,198) 3/4.5(0.12/0.18)
450(137) 2-72 11.1 (0.44) 101(68) 5,889(1,324) 1,742  (392) 4.00 5,571(1,252) 2.6  (0.1)
96 12.2 (0.48) 122  (82) 6,019(1,353) 2,094  (471) 4.00 5,877(1,321) 2.6/3.7  (0.1/0.15)
144 15.4 (0.61) 189(127) 6,861 (1,542 )3,242  (729) 4.00 6,799(1,528) 3/6.9(0.12/0.27)
192-216 16.0 (0.63) 204(137) 6,856(1,541) 3,502  (787) 4.20 6,736(1,514) 2.6  (0.1)
600(183) 2-72 11.4 (0.45) 111  (68) 7,880 (1,771) 2,577  (579) 4.00 7,592(1,707) 2.6  (0.1)
96 12.4 (0.49) 129(87) 7,750 (1,742) 3,015(678) 4.20 7,688 (1,728) 2.6/3.7  (0.1/0.15)
