Duct Fiber Optic Cable

Duct Fiber Optic Cable

2/4/6/8/12 Core to 72, 144, or 288 fibers– and up to 432 for gel-filled cable; GYTS GYTA GYFTY GYFTA GYXTW Cable; Underground Ducts (or conduits); Dielectric loose tube cables are suitable for lashed aerial and duct installations
Duct Fiber Optic Cable
Professional manufacturing for Duct Fiber Optic Cable and on-demand cable specs. Request a duct fiber quote today.
GET A QUOTE
Applications for Duct Fiber Optic Cable
Duct fiber optic cables are normally installed underground, they are widely applied in metropolitan area network, access network, and used as feeder cable in a FTTH network.
Most Required Duct Fiber Optic Cable
All duct fiber optic cable are popular, but not every project or market is the same. For example, some UK customers love lszh sheath steel tape armored duct cable, and some customers prefer the non metallic non armored duct fiber cable. So if you are planning to order them, it is best to ask our experienced consultants.
1. non armored

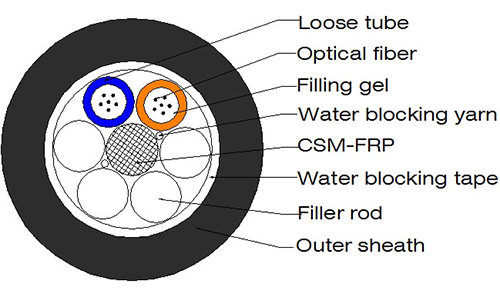

GYFTY GYFTA multi tube non armored fiber optic duct cable stranded non metallic strength member cable
2. uni-tube

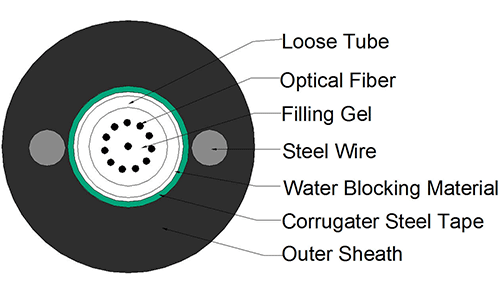

2/4/6/8/12 Core GYXTW Unitube light armoured fibre optic cable
3. Steel Tape Armored

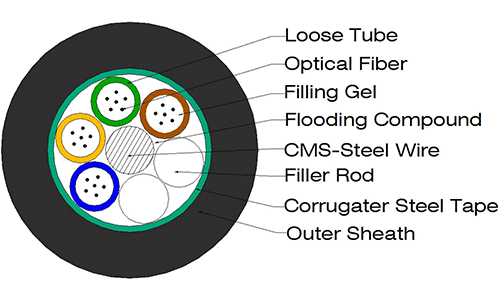

GYTS outdoor stranded multi-tube steel tape light armored fiber optic cable
4.Aluminum Armored

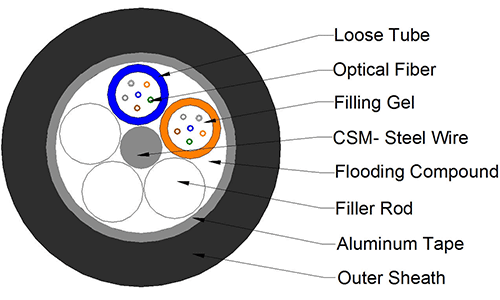

GYTA aluminum tape armored fiber cable
5.CST Light Armor

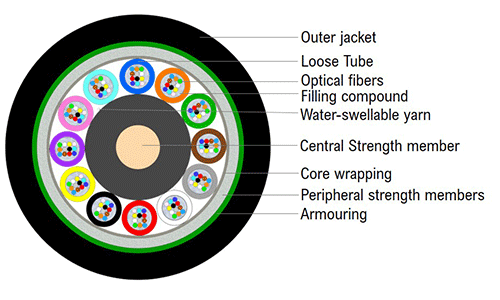

CTS fiber cable uni tube armoured fiber cable
6.Double Armored
GYTA53 direct burial duct fiber optic cable stranded loose tube armored fiber optic cable

Custom fiber optic cables manufacturer OEM service provided
The Best Duct Fiber Optic Cables for You
No matter what specification or materials for duct fiber optic cable. You Can Choose Freely For Your Unique Request.
Custom Duct Fiber Cables
Custom fiber optic cables manufacturer OEM service provided, the Best Duct Fiber Optic Cables for You
Estimated Cost-Analysis for Duct Fiber Optic Cable
Duct fiber optic cable cost-driving is cable structures, raw materials, specifications and shipping. For a formal and accurate offer price, you can always contact one of our experts!
Get A Quote
Duct Fiber Optic Cable Know More
Duct fiber optic cable is a fiber optic cable installed in the form of ducting.
This kind of fiber optic cable can be well protected by the pipe after installation and has high safety performance. For different construction site, it can be a non armored fiber cable, armored fiber cable, and micro blown fiber cable.
Laying Techniques
The protection measures of the duct fiber optic cable should meet the following requirements.
Fiber optic cables in manholes may be protected by serpentine hoses (or soft plastic tubes) and tied to cable pallets or handled according to the measures required by the design.
The entrance of the pipe should be taken to plug measures.
The fiber optic cable in the manhole should have identification markings.
Severe cold areas should take anti-freezing measures according to the design requirements to prevent damage to the fiber optic cable.
Plastic sub-pipe deployment method is basically the same as the deployment of fiber optic cable, but should also meet more specific requirements.

Contact Us, Now.
24-hour service hotline
Contact online customer service
Add: Technology Building, Tongbai Road, Zhongyuan District, Zhengzhou, Henan, China.
