Bare aluminum stranded conductor AAC Bull 61/4.25mm



All Aluminum Conductor Brief introduction


The AAC conductor is widely used in the overhead power distribution system of our country, and it is one of the main products for forming electrified wire network.


All Aluminum Conductor Specification

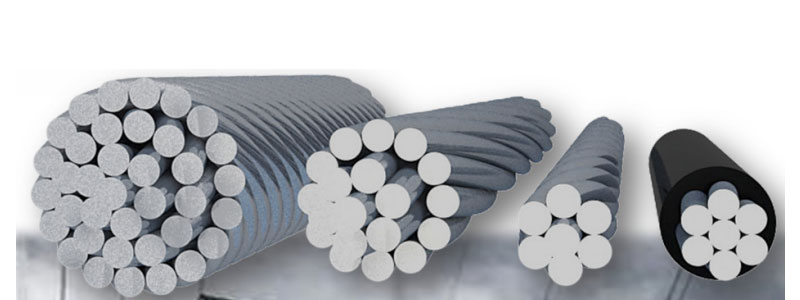

AAC (All Aluminium Conductor)+All Aluminium conductor PVC covering Datasheets

Conductor name	Number/ Size	area mm² Nom.	Conductor mass kg/km Nom	Nom. dia. mm	Standard Length m	Drum Gross mass kg	Bending  radius mm Min.	PVC  insulation  1.6mm	PVC  insulation  1.6mm	PVC  insulation  5mm	PVC  insulation  5mm	Grease mass (Optional)
								kg/km Nom.	OD mm	kg/km Nom.	OD mm
1 Aluminium wire + 6 Aluminium wires
Midge	7/2.06	23.3	64	6.18	3000	735	185	59.4	9.4			2.1
Gnat	7/2.21	26.9	74	6.63	3 000	764	199	62.9	9.8			2.5
Ladybird	7/2.79	42.8	118	8.37	2 500	836	251	76.2	11.6			3.9
Ant	7/3.10	52.8	145	9.3	2 500	905	279	83.3	12.5			4.8
Fly	7/3.40	63.6	175	10.2	2 500	979	306	90.2	13.4			5.8
Wasp	7/4.39	106	292	13.17	1 500	979	395	120.2	16.5			9.7
1 Aluminium wire + 6 +12 Aluminium wires
Hornet	19/3.25	157.6	435	16.25	2 000	1 412	488			507.4	26.3		10.7
Caterpilla-r	19/3.53	185.9	512	17.65	2 000	1 565	530			540.8	27.7		12.6
Chafer	19/3.78	213.2	587	18.9	2 000	1 715	567			570.6	28.9		14.4
Cockroach	19/4.22	265.7	731	21.1	1 500	1 639	633			623.2	31.1		18
Butterfly	19/4.65	322.7	888	23.25	1 000	1 430	698			674.5	33.3		21.9
Locust	19/5.36	428.7	1180	26.8	1 000	1 722	804			759.3	36.8		21.9
1 Aluminium wire + 6 + 12 + 18 Aluminium wires
Centipede	37/3.78	415.2	1150	26.46	1 000	1 692	794			751.1	36.5		43.2
Maybug	37/4.09	486.1	1338	28.63	1 000	1 880	859			803	38.6		21.9
1 Aluminium wire + 6 + 12 + 18 + 24 Aluminium wires
Columbine	61/3.78	684.5	1884	34.02	1 000	2 426	1021			931.6	44		86.3
Bull	61/4.25	865.4	2400	38.25	1 000	2 942	1148			1032.6	48.3		109.1



Other Aluminium products

1.  AAAC (All aluminium alloy conductor)
2.  AACSR (All aluminium alloy conductor steel reinforced)
3.  OPGW (Optic fiber protection overhead conductor)
4.  ACSR (Aluminium conductor steel reinforced)

How to Order AAC Cables Price

Our team is committed to providing outstanding service before, during, and after the sale. To learn more about our products or to place an order, please contact your sales representative. Email us at info@uni-fibercable.com
